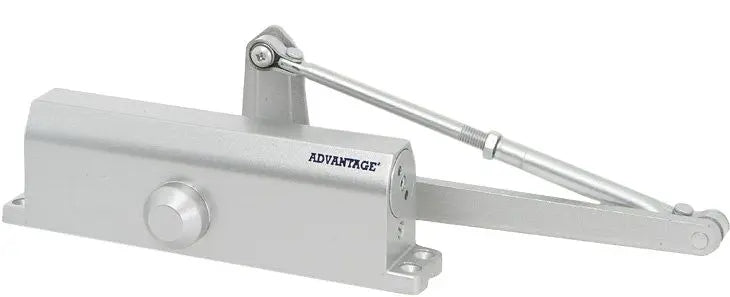

PHG 44DC-689 Grade 1 Door Closer, Adjustable 1-4, Tri-Packed, Aluminum
- Description
- Specifications
- Manufacturer Docs
The PHG 44DC-689 door closer delivers heavy-duty performance for high-traffic doors. It features full size-adjustability spring strength adjustable settings 1 through 4, letting a single closer handle a range of door weights and sizes. The closer comes tri-packed—shipping with components for regular arm, top-jamb and parallel arm mounting—so one SKU covers multiple mounting configurations. Constructed with an aluminum body, the 44DC-689 meets Grade 1 performance requirements (ANSI A156.4) and is built for long-term durability. It’s non-handed and designed for push or pull side installs, making field installation simpler and faster.
Ideal for commercial, institutional or retail entrances where reliable door-control and adjustability are required, the PHG 44DC-689 offers versatility, quality build and vendor-friendly packaging for multi-arm configurations.
Material
Aluminum Alloy Body, Forged Steel Arm.
Heated Treated Forged Steel Piston.
Double heat treated steel pinion.
Cover
Full plastic cover - 4400 series
Valves
Triple valve control for closing speed, latching speed, and back check cushion.
Staked valve for power adjustment.
Back-Check
Arm & Brackets
Standard arm and parallel bracket included for different mounting demands.
Screws
Self-tapping wood screws, machine screws, and sex-bolts.
