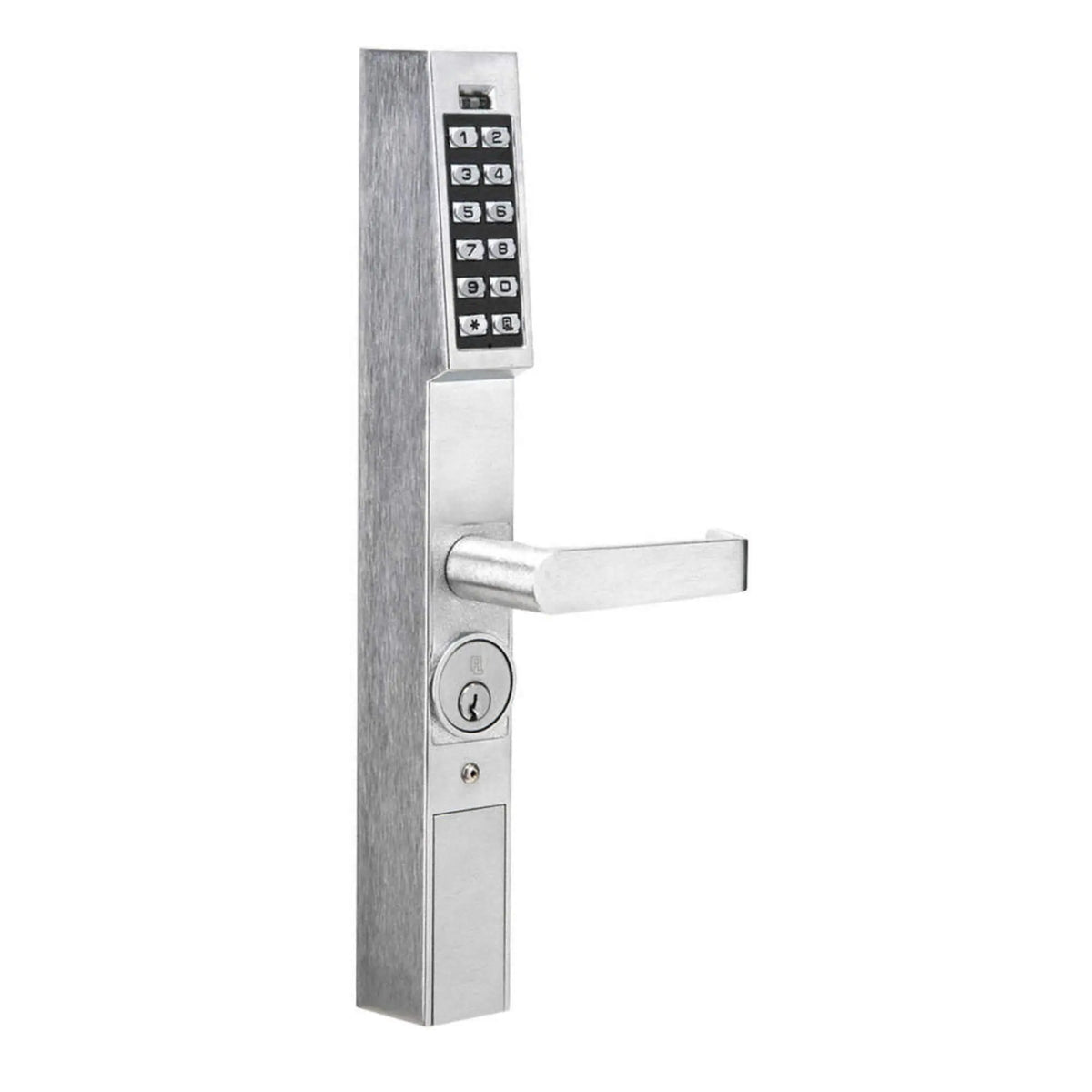

Alarm Lock DL1200ET/26D Trilogy Narrow Stile, Exit Trim, Satin Chrome
- Description
- Specifications
- Manufacturer Docs
The Alarm Lock DL1200ET/26D is a standalone electronic exit-device trim built on the Trilogy® T2 platform, tailored for narrow-stile aluminum or glass doors equipped with panic-exit bars.
Key features include:
- Outside Trim Only - (Panic bar not included)
Supports up to 100 user PIN codes (3-5 or 3-6 digits depending on configuration) and a multilevel user hierarchy (Master, Manager, Basic Users).
Vandal-resistant all-metal 12-button keypad, field-reversible non-handed design for ease of installation.
Designed for retrofit on panic exit devices from major manufacturers (e.g., Jackson, Dor-O-Matic, Von Duprin, Arrow, DCI, Corbin). Tail-piece kits sold separately.
Tailpiece not Included. TP-1691/1692/1693/1694/1698 Required
Weather-resistant operating range from –31 °F to +151 °F (–35 °C to +66 °C), suitable for indoor or outdoor use.
Key override with standard cylinder; supports interchangeable cores (Corbin/Russwin, Yale, Schlage, Medeco) for flexible keying.
Finish: US26D Satin Chrome lever trim. Designed to provide keypad convenience on exit door hardware without full access-control wiring.
Ideal for storefronts, managed properties, commercial offices, and any application where a panic-bar exit device needs keypad access control — the DL1200ET/26D upgrades standard exit hardware to a secure keyless solution with trusted Trilogy reliability.
Works with Jackson, Dor-O-Matic, Von Duprin, Dorma, Arrow, DCI & Corbin panic devices. NOTE: Must use DL1225/DL1250 with Dor-O-Matic, 2090, Jackson 1095 & Dorma 5300 as it requires more than 85 degrees rotation. Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob
| TP-1691 | Used with Arrow S1200/1250, DCI 1200/1300, Von Duprin 22 & Dorma 5300 Panic Devices |
| TP-1692 | Used with Dor-o-Matic 2090 Panic Device |
| TP-1693 | Used with Corbin ED8200 Panic Device |
| TP-1694 | Used with Von Duprin 33 LH (RHR) devices only |
| TP-1698 | Used with Jackson 1095 Panic Device |
