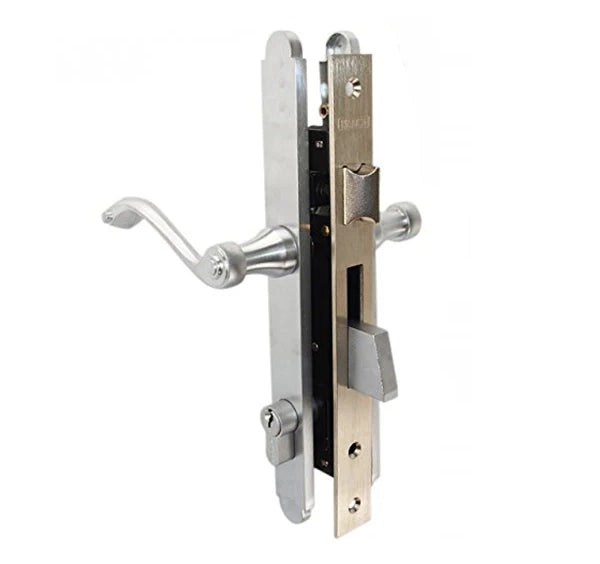

Marks USA 2750C/26D Thinline Ornamental Iron Lever, Double Cylinder with Plate, Entry, 1", AR1, Satin Chrome

The Marks USA 2750C/26D Thinline Series is an entry-function mortise lockset crafted for decorative iron doors requiring keyed access on both sides. With its ultra-narrow 1″ backset and 1″ deadbolt throw, this model fits slim-frame applications where standard mortise locks are too bulky.

Marks USA has been a primary manufacturer of ornamental-iron storm-door locks for many years. During that time, many innovative improvements were developed to increase reliability and ease of installation. These innovations include the Uni-Lock model with single-screw assembly, elimination of threaded swivel spindles in favor of the more secure thru-bolted design, helper springs in lever-rose sets, and steel hubs for greater endurance.

Thinline 2750C Series Features

• Thru-bolted solid brass trim assemblies

• Spring-loaded captivated spindles

• Reversible mortise lock with 1″ backset

• 1″ bolt throw, ½″ latch projection

• Double-cylinder configuration: AR1 keyway, 5-pin with 2 keys included

Finished in satin chrome US26D, the 2750C/26D offers both a refined aesthetic and reliable performance. It is ideally suited for wrought-iron gates, storm doors and premium entrance applications where security and design matter.
