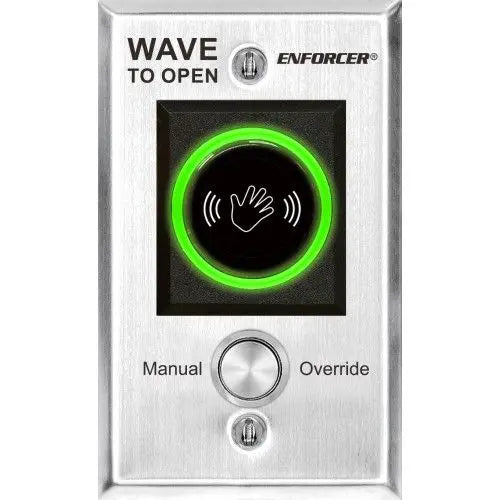

Seco-Larm SD-927PKC-NEVQ 12/24 V AC/DC, Single Gang, Wave to Open with Override Button

This wave-to-open sensor allows hands-free egress with a simple wave of the hand, combined with a manual override button as a backup. The dual-voltage input (12-24 VAC/VDC) offers installation flexibility.

The built-in relay is rated at 3 A (Form C dry contact) and supports timing modes from 0.5 to 30 seconds, toggle mode, or continuous while the sensor remains triggered.

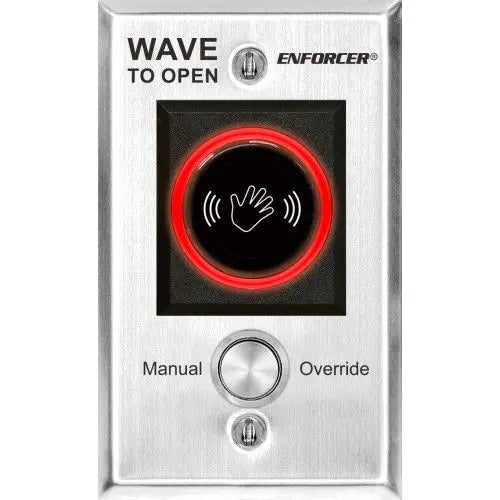

Sensing range is adjustable from approximately 2-3/8″ to 8″ (6–20 cm), allowing customization for mounting conditions. LED indicators show standby and triggered states, and the plate includes quick-connect screwless terminals for fast wiring.

Designed for demanding environments, the unit carries UL Conformance (UL 294) and meets durability specifications such as endurance level IV and destruction attack level I. Operating temperature spans -4 °F to 131 °F (-20 °C to +55 °C). The stainless steel faceplate fits a standard single-gang box and the overall form-factor is compact for ease of install.

Ideal for locations requiring hygienic no-touch operation—such as hospitals, labs or cleanrooms—while also providing a manual override for traditional push-button use.
