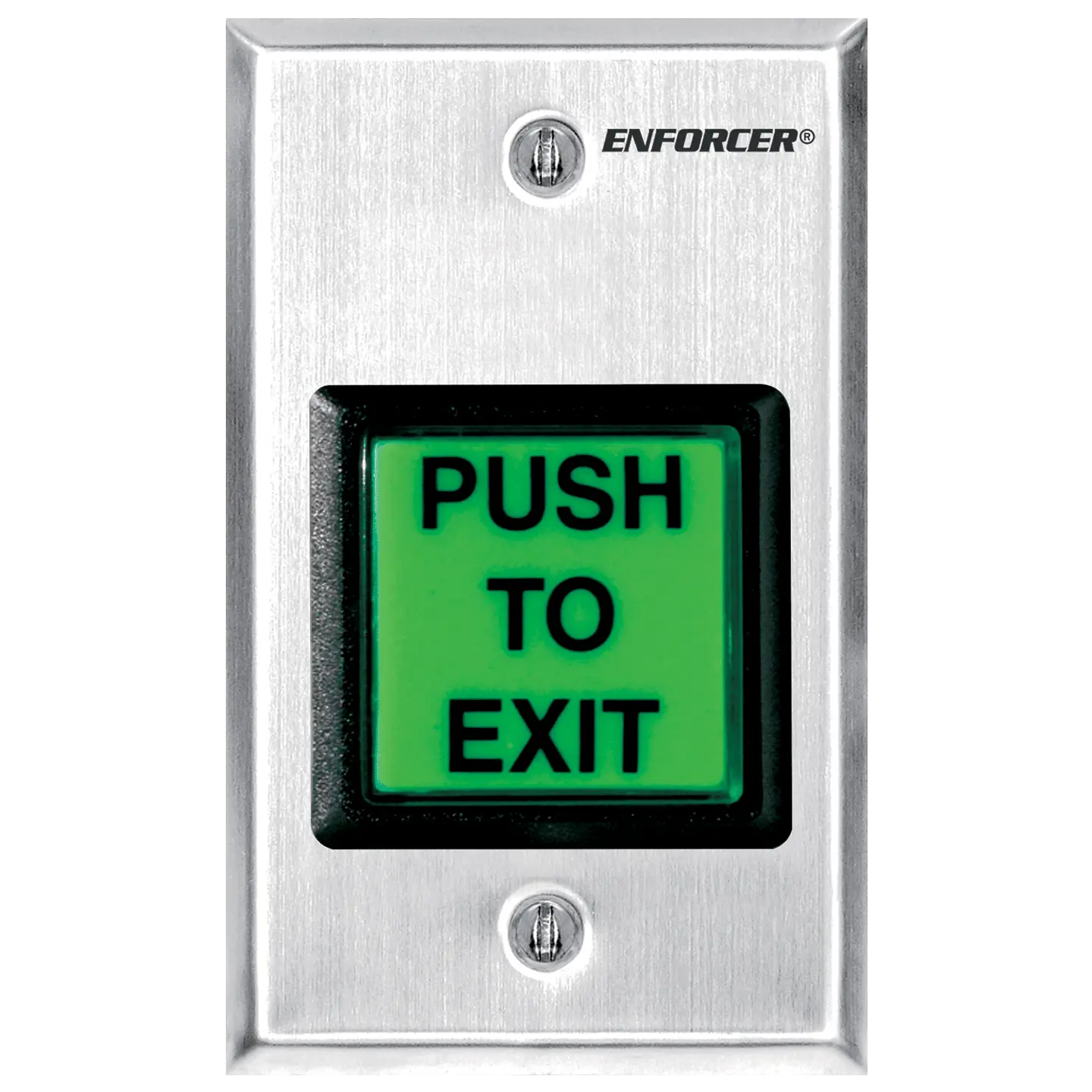

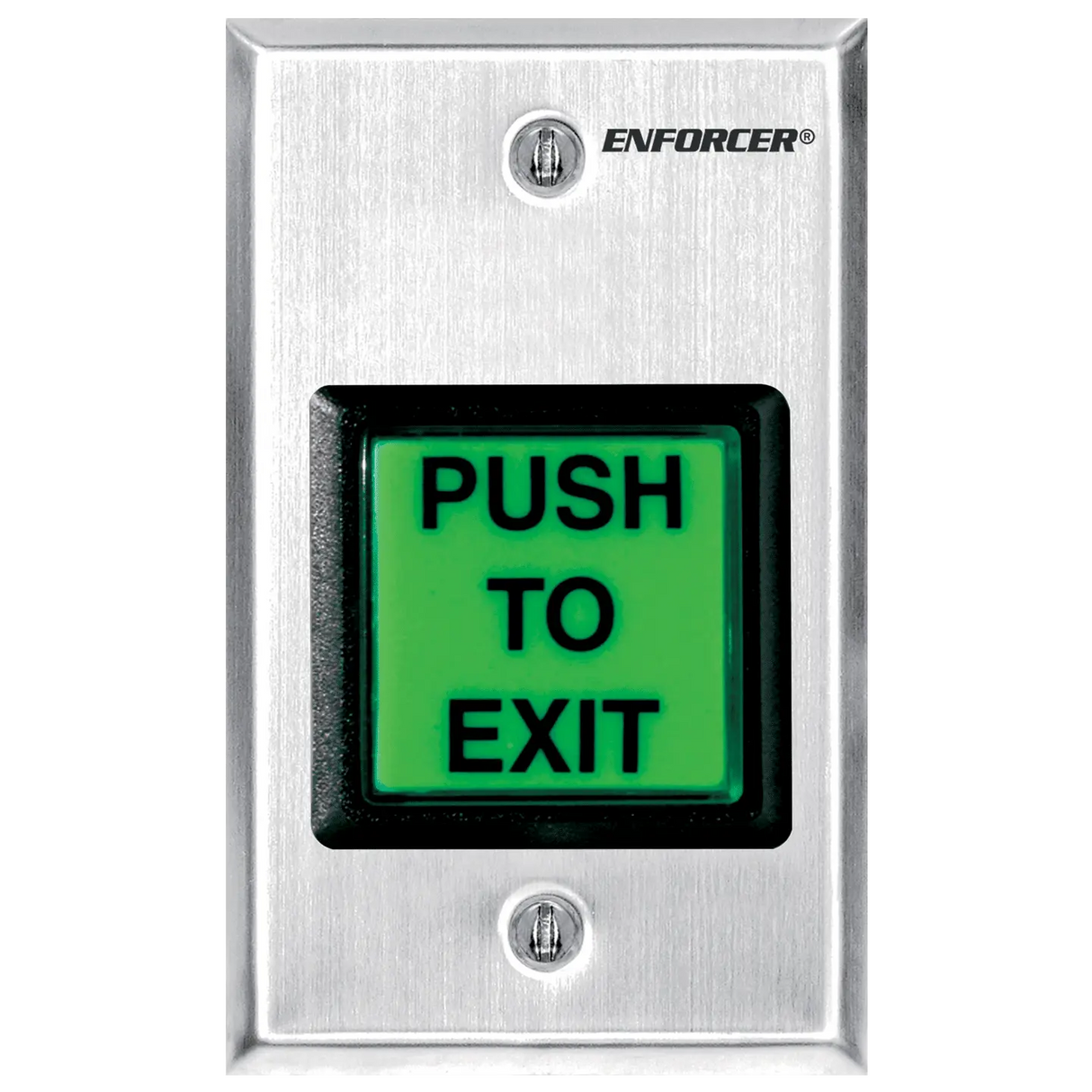

Seco-Larm SD-7202GC-PEQ 12-24 VDC, Single Gang, LED Push To Exit, Green

The SD-7202GC-PEQ is a rugged, easy-to-use request-to-exit plate crafted for commercial access control and secure egress points.

It features a large, illuminated 2″ square pushbutton that clearly displays “PUSH TO EXIT” and includes interchangeable message plates in English, Spanish and French.

The plate is powered by 12-24 VDC and rated for high-capacity switching — up to 50 A at 24 VAC and 10 A at 125-250 VAC equivalent load ratings.

Built to perform in demanding environments, it holds an IP65 weather-proof rating when installed properly and operates across a wide temperature span from -40 °F to 167 °F (-40 °C to 75 °C).

Installation is simplified with five color-coded 12-inch wire leads ending in spade lugs, making wiring fast and intuitive. The unit is housed in a brushed stainless steel single-gang plate and weighs just 3.7 oz (105 g).

Ideal for storefront doors, secure egress panels, or heavy-use facilities, this illuminated exit plate combines durability, clear visual design and high-capacity performance in one convenient package.

Key Specifications

• Operating voltage: 12-24 VDC

• Pushbutton rating: 50 A@24 VAC

• Weatherproof rating: IP65

• Operating temperature: -40 °F to 167 °F (-40 °C to 75 °C)

• Dimensions: 4-½″ × 2-¾″ × 2-¾″ (114 × 70 × 70 mm)

• Weight: 3.7 oz (105 g)
