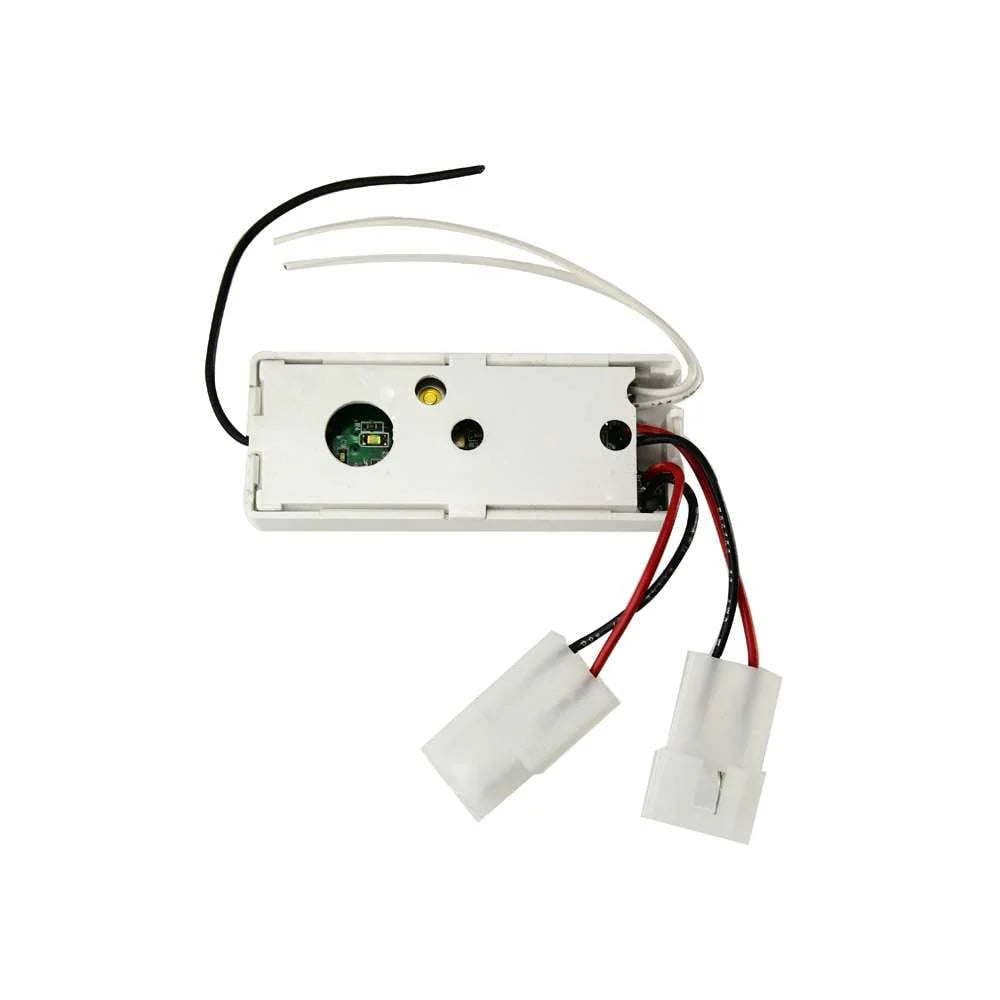

Alarm Lock RR-RECEIVER Remote Release Receiver Only

The Alarm Lock RR-RECEIVER is a compact, battery-powered wireless receiver designed to add remote release functionality to your Trilogy® or other compatible Alarm Lock locking systems. It installs easily inside the lock housing or adjacent wiring compartment and triggers a solid-state relay closure when a paired remote button is pressed.

Key features include:

• Installs inside a Trilogy cylindrical lock (or in a general-purpose enclosure) using the two "remote input" wires plus the battery power wires.

• Low idle current draw (~50 µA), making it possible to run for extended periods on standard lock batteries.

• Supports up to 50 paired remote buttons per receiver, including single-button desk mounts or multi-button keyfobs.

• Programmable relay behavior: you can adjust the “Relay Closure Duration” (how long the unlock pulse lasts) and a “Hold Off Time” (cool-down period before next activation).

• Can drive low-current loads (max 30 mA), or be used to trigger an auxiliary relay for higher current door strikes or magnetic locks.

• Gives you remote unlocking capability (buzz-in) without needing to install an electrically wired strike or significantly rework existing hardware.

Whether you’re upgrading a reception desk, admin station, or adding convenience for doors that need a remote release option, the RR-RECEIVER offers a retrofit-friendly solution.
