Alarm Lock PDL5300/26D Trilogy Double Sided Prox 2000 Users, 40,000 Event Audit Trail, SC1, Satin Chrome

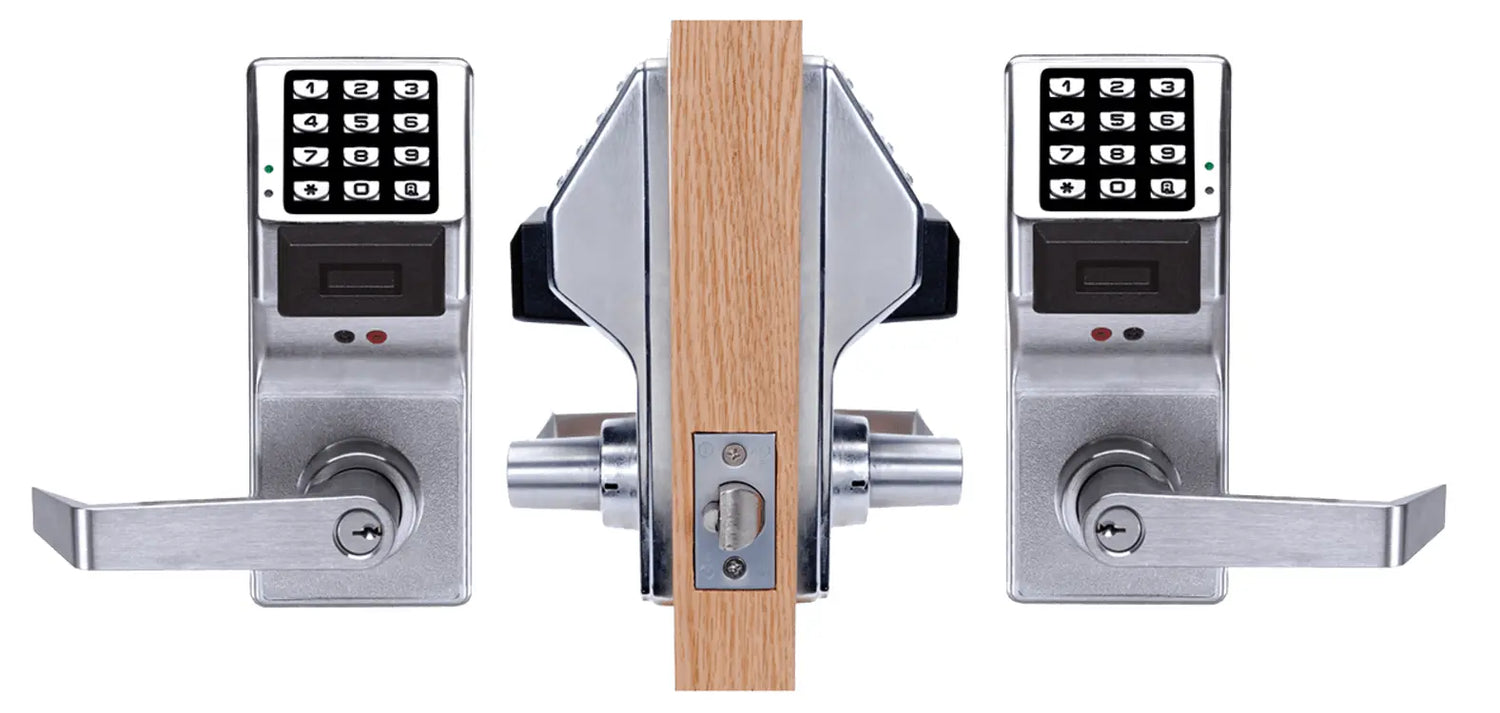

The Alarm Lock PDL5300/26D from the Trilogy® series is a robust dual-side access control lever lock designed for doors that require controlled access from both sides. Both sides are equipped with full keypads and HID proximity readers, enabling sign-in/sign-out capability or dual-entrance control.

Key Features:

• Supports up to 2,000 user credentials (PIN codes and/or HID prox cards/fobs) with multi-tier user levels (Master, Manager, Supervisor, Basic).

• Stores up to 40,000 time-/date-stamped audit events, plus up to 500 scheduled events (e.g., lock/unlock times) for comprehensive access tracking.

• Dual-sided design: one side is the primary side for programming and key override, the other side mirrors but its key controls access to the battery compartment only—adding tamper-protection.

• Weather-resistant construction for indoor or outdoor usage; operating range from -31°F to +151°F (-35°C to +66°C).

• Non-handed, field-reversible straight lever design; standard 2¾″ backset; fits standard 1⅝″–1⅞″ doors. Easy retrofit.

• Finish: US26D Satin Chrome; standard key override is a solid brass 6-pin cylinder (SC1 keyway)

Why Choose It?

If you have a door where access control is required on both entry and exit sides — such as gates, security zones, serving/check-out counters or restricted double-door openings — the PDL5300/26D delivers enterprise-level standalone access control without full wiring. You get full audit visibility, dual-side credential access, and the rugged reliability of a Grade 1 lock in a satin chrome finish.
