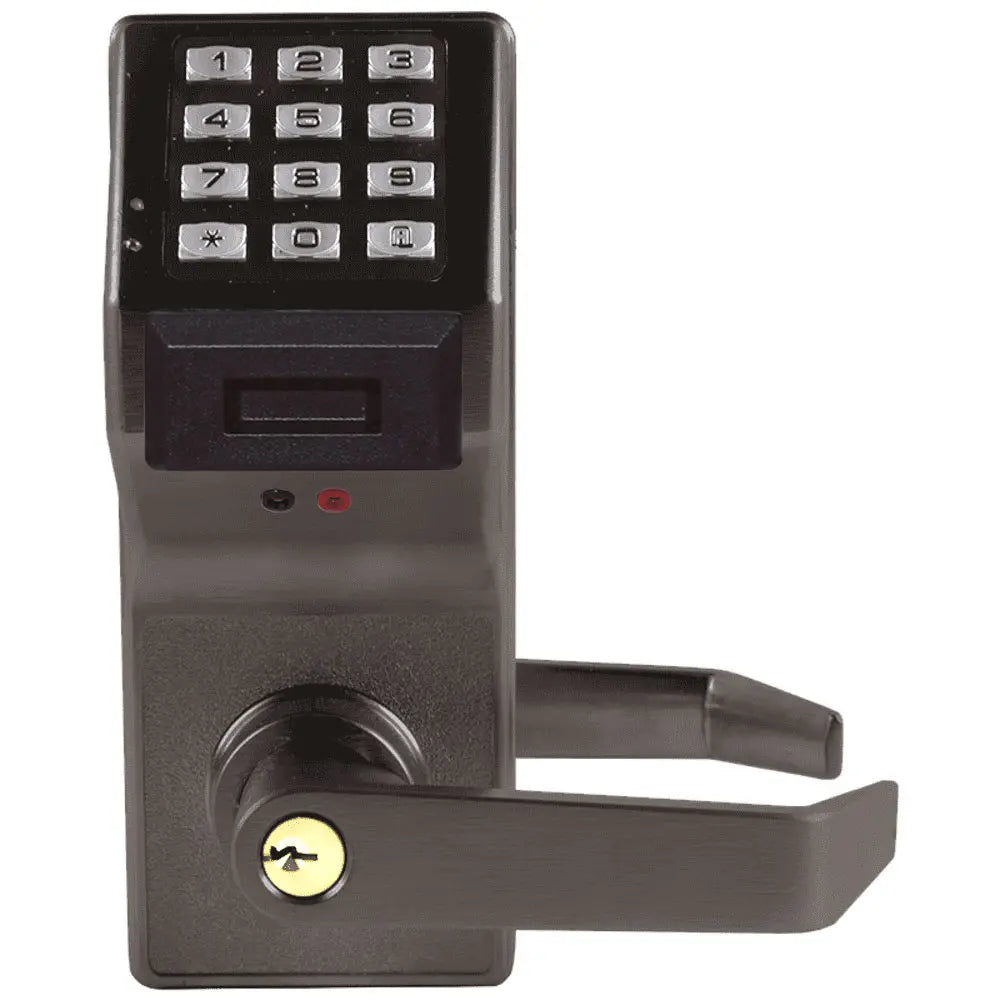

Alarm Lock PDL3000/10B Trilogy Prox, 2000 Users, 40,000 Audit Trail, SC1, Oil Rubbed Bronze

The Alarm Lock PDL3000/10B is part of the Trilogy® T3 series—an advanced standalone access-control lock combining keypad and proximity reader functionality in a rugged cylindrical lever design. It’s built for high-use commercial installations requiring significant user capacity, audit trail logging, and reliable, non-wired deployment.

Key Features Include:

• Supports up to 2,000 user credentials (codes and/or HID prox cards/fobs) with multi-tier access levels (Master, Manager, Supervisor, Basic Users).

• Stores up to 40,000 time/date-stamped events in the audit log for detailed access tracking and reporting.

• Equipped with a weather-resistant, all‐metal 12‐button keypad and integrated HID prox reader—ideal for retrofit and outdoor environments (operational range –31 °F to +151 °F / –35 °C to +66 °C).

• Field-reversible lever design (non-handed), standard 2¾″ backset (2⅜″ optional), fits door thickness ~1⅝″–1⅞″.

• Battery powered (5 AA alkaline batteries) with typical life of ~60,000 cycles, inclusive of audible/visual low battery alerts.

• Finish: US10B Oil Rubbed Bronze for a modern commercial aesthetic.

• Mechanical key override included 6-pin solid brass cylinder, Schlage SC1 keyway

Applications & Benefits:

This lock is designed for commercial doors where you want high-user capacity, audit capabilities and both proxim­ity and keypad access—without needing full network wiring. Examples include corporate offices, education buildings, healthcare facilities, rental properties, and other installations where flexibility, retrofit ease and multi-credential access matter.

With the PDL3000/10B, you get the power of enterprise-level access control in a standalone package: manage thousands of users, log tens of thousands of events, and deploy quickly on standard cylindrical door preparations without rewiring the opening.
