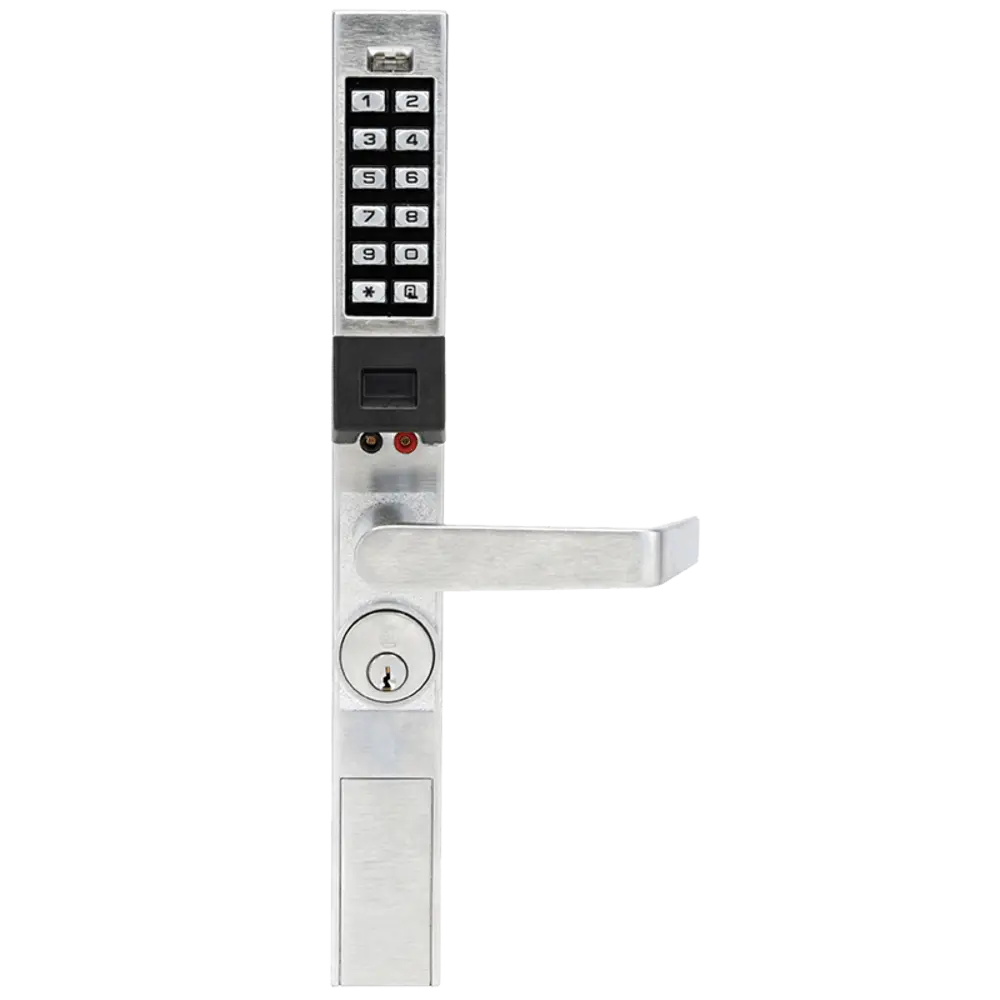

Alarm Lock PDL1300/26D Trilogy Narrow Stile, Prox, 2000 Users, 40,000 Audit Trail, Satin Chrome

The Alarm Lock PDL1300/26D is part of the Trilogy® Narrow-Stile series designed for aluminum-frame and glass storefront doors (Adams Rite® type latch prep). It combines high user capacity, advanced audit logging and both keypad + prox-reader access in a field-reversible, vandal-resistant design.

Key Features:

• Accepts up to 2,000 user credentials (PIN codes and/or HID Prox cards/fobs).

• Stores up to 40,000 time-/date-stamped events in the audit trail and supports up to 500 scheduled events (lock/unlock) via real-time clock.

• Built-in HID Prox reader (125 kHz) plus keypad, allowing either or both credential types for access.

• Weather-resistant operation down to -31 °F (-35 °C) and up to +151 °F (+66 °C) — suitable for glass/storeroom doors, storefronts and exterior applications.

• Non-handed, fully field-reversible lever design; retrofits standard narrow-stile latch preparations (Adams Rite 1850/1950/4710/4900 etc).

• Mechanical key override — supplied with 6-pin mortise cylinder (SC1 keyway) and supports interchangeable core systems for flexible keying.

• Finish: Satin Chrome US26D — architectural, robust aesthetic for premium environments.

• Ideal for high-traffic commercial, retail storefronts, multi-tenant properties or any door where high-user capacity + audit capability + keyless access are required.
