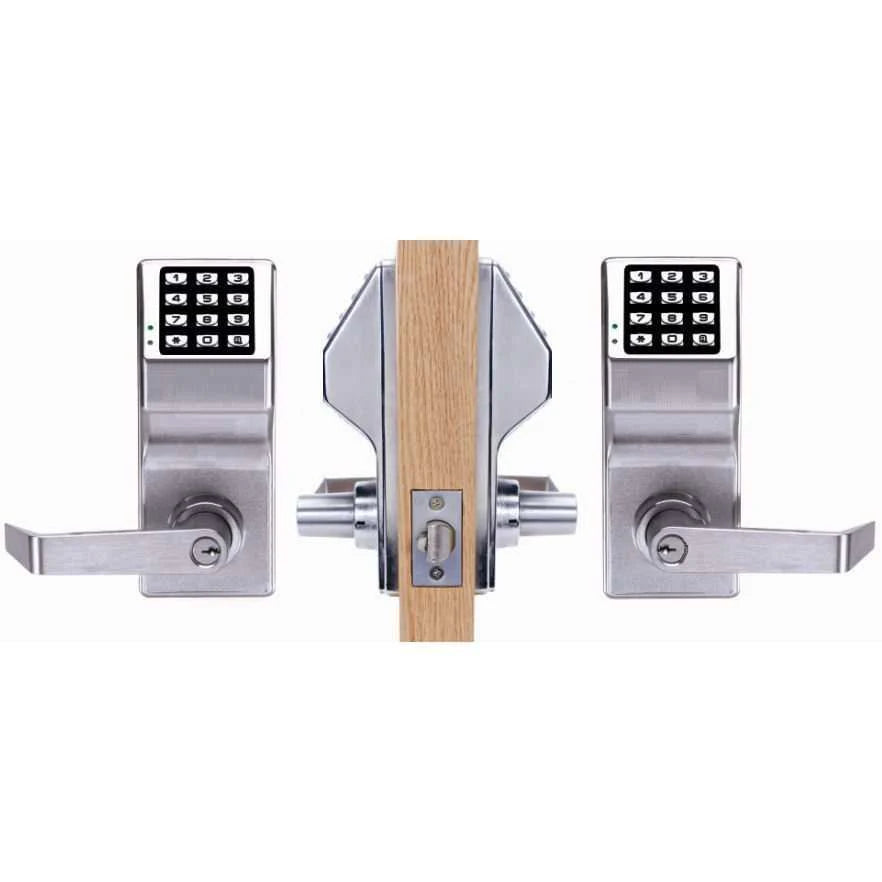

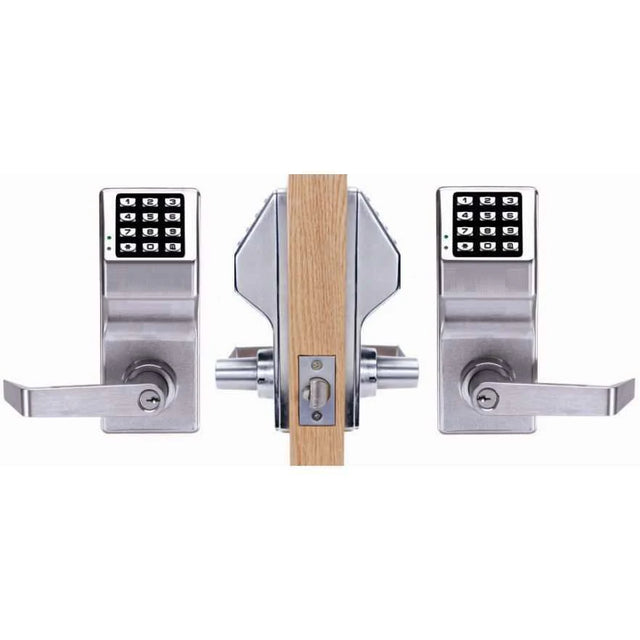

Alarm Lock DL5200/26D Trilogy Double Sided, 100 Users, SC1, Satin Chrome

The Alarm Lock DL5200/26D is a fully capable double-sided model in the Trilogy® series, designed for applications where access control is required on both sides of a door (e.g., gates, courtyard doors, jet-way doors, interrogation rooms).

Key Features:

• Programmable keypad on both sides of the door. Codes added on one side apply to both sides, cutting administrator setup time.

• Capacity for up to 100 user PIN codes (1 Master, 10 Manager, 90 Basic Users + 3 one-time service codes) in standard configuration.

• All-metal, rugged keypad and Grade 1 BHMA heavy-duty cylindrical lockset with weatherproof performance (operational from –31 °F to +151 °F / –35 °C to +66 °C).

• Non-handed design (field reversible)

• Standard Backset 2 ¾″ (2 ⅜″ optional)

• Battery operated (5 AA alkaline) with typical duty cycles around 80,000+ operations. Visual and audible entry/exit indicators.

• Finish: US26D Satin Chrome; key override with standard solid brass 6-pin cylinder (Schlage SC1 keyway) included

Use-case Highlights:

• When access must be controlled from both sides of a door rather than just one, this lock delivers.

• Excellent for gates, double-door accesses, or secure zones where entry and egress both require verification.

• Ideal in industrial, institutional or commercial environments where user codes need to be managed easily and securely.

Why Choose the DL5200/26D?

If your project demands a standalone electronic solution with double-sided access, minimal wiring, high user-capacity and heavy-duty durability in a sleek satin chrome finish, the DL5200/26D offers a streamlined yet powerful option. It minimizes key management hassles while ensuring both sides of a secure opening are addressed.
