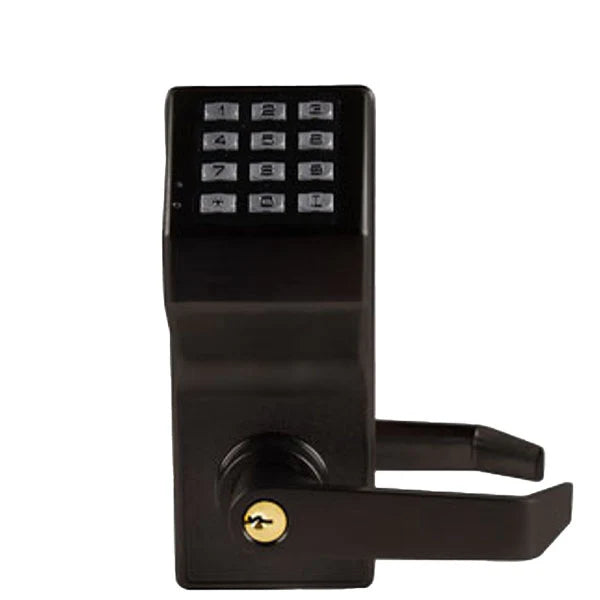

Alarm Lock DL3200/10B Trilogy 2000 Users, 40,000 Event Audit Trail, SC1, Oil Rubbed Bronze

The Alarm Lock DL3200/10B is part of the Trilogy® T3 series — a high-end standalone cylindrical electronic lock engineered for commercial installations where robust user management and detailed audit tracking are required.

Key Features:

• Supports up to 2,000 user PIN codes (3-6 digits) including Master, Manager, Supervisor and Basic Users.

• Stores up to 40,000 time-date stamped events in its audit trail, allowing detailed tracking of access, programming changes and lock status.

• Up to 500 scheduled events including timed auto-lock/unlock, and “quick schedules” for common unlock windows.

• Rugged, all-metal vandal-resistant 12-button keypad and heavy-duty clutch mechanism for long life in high-traffic environments.

• Operates on 5 AA alkaline batteries (low-battery alert) and can be hard-wired (9 VDC/9 VAC) for remote release or battery backup.

• Grade 1 BHMA certified heavy-duty cylindrical lockset, UL 3-hour fire rated latch.

• Weather-resistant design, rated for –31 °F to +151 °F (–35 °C to +66 °C), suitable for interior or exterior use.

• Key override via included solid brass 6-pin cylinder (SC1 keyway) plus optional interchangeable core preps (e.g., Arrow, Best, Falcon, Kaba) for flexible keying.

• Finish: 10B Oil Rubbed Bronze, non-handed, field-reversible lever design for straight forward retrofits.

Business Benefits:

When you need more than a standard keypad lock — when you need enterprise-style user capacity, audit logs, schedulable access windows, retro-fit friendliness and trusted durability — the DL3200/10B delivers. It’s ideal for corporate offices, healthcare units, education buildings, rental communities, commercial storefronts, high-traffic passageways and any environment where thousands of users and detailed access auditing are required without going full networked access control.
