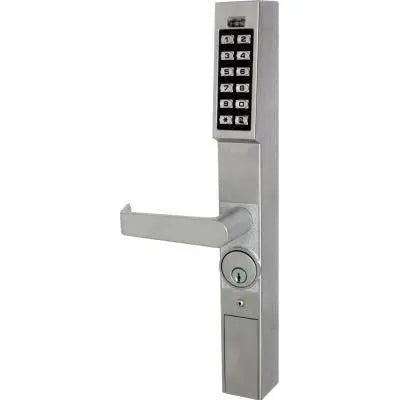

Alarm Lock DL1300/10B Trilogy Narrow Stile, 2000 Users, 40,000 Event Audit Trail, Oil Rubbed Bronze
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
The Alarm Lock DL1300/10B is part of the Trilogy® Narrow Stile line, engineered for aluminum-frame or glass storefront doors using latch preparations such as Adams Rite®. It combines rugged, all-metal construction with advanced access-control features for commercial environments.
Key features include:
Support for up to 2,000 user PIN codes (3- to 6-digit), with full-scale programming and auditing capability.
Audit-trail recording of up to 40,000 events and scheduling for up to 500 timed lock/unlock actions.
Weather-resistant operation from -31 °F to +151 °F (-35 °C to +66 °C) — built to hold up in demanding storefront or commercial settings.
Non-handed, field-reversible design making installation easier on narrow-stile doors.
Finish: 10B Oil Rubbed Bronze
Ideal for retrofit situations where high traffic, audit trail, and multi-user access control are required—such as retail storefronts, education wings, corporate offices, healthcare facilities, and any site needing standalone keyless entry with serious capabilities.
| Audit trail | Yes, 40,000 Event |
|---|---|
| Backset | 31/32”, 1 1/8" and 1-1/2" |
| Battery type | CR123A |
| Dimensions | 14-3/8" (H) x 1-5/8” (D) x 1-3/4" (W) |
| Door thickness | Stile thickness 1-3/4" |
| Environmental rating | Indoor / Outdoor |
| Finish | 613 / US10B – Oil Rubbed Bronze |
| Fire rating | 3 Hour Fire Rating |
| Function | Electronic Pushbutton |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Keyway | Schlage C SC1 |
| Lever knob design | American (Rhodes) |
| Limited warranty | 2 Year |
| Lock features | Audit Trail, Passage Mode, Scheduling, Timed Codes |
| Manufacturer | Alarm Lock |
| Product weight | 6.5 lbs |
| User capacity | 2000 |
