Marks USA 91DW/ 3 Metro Mortise Lock, Vestibule, 2-1/2", SC1, Polished Brass
- Description
- Specifications

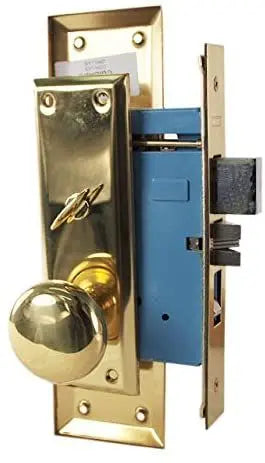

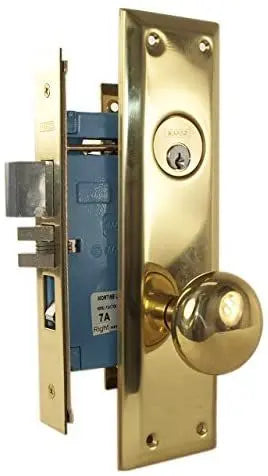

The Marks USA 91DW/3 Metro Mortise Lock is engineered for apartment and commercial entry applications where reliable performance and keyed access are required. With a 2-1/2″ backset and 1″ cast deadbolt throw, it delivers strong security for standard-prep doors.

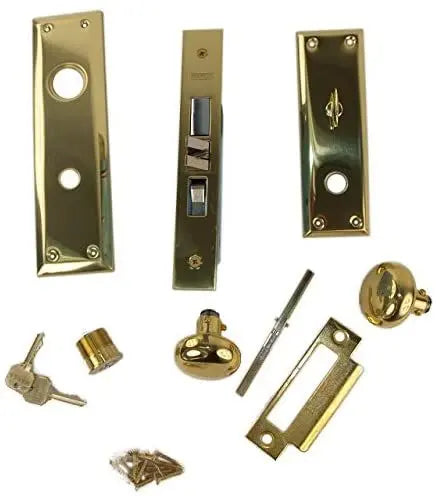

This entrance-function mortise lock includes a solid brass SC1-keyway cylinder with two keys and is pre-handed for left or right swing installation. The polished brass finish US3 offers a high-end aesthetic to match architectural hardware.

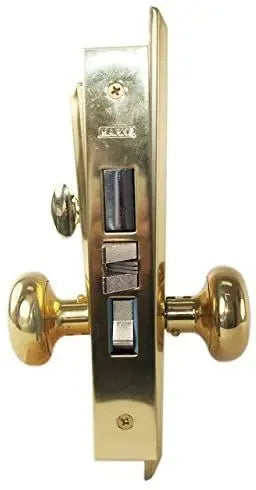

Durably built with a 1-1/16″ x 7-5/8″ steel backplate with brass cover, and a solid brass latch with ½″ throw field reversible, it supports doors from 1-5/8″ to 2-¼″ thick.
Ideal for multi-family, mixed-use or commercial entry doors, the 91A/3 Metro Mortise Lock offers a balance of architectural style, keyed security, and dependable mortise-lock functionality.
| Backset | 2-1/2" |
|---|---|
| Case qty | 6 Pieces |
| Cylinder pins | Keyed - 5 Pin |
| Dimensions | Lock Front: 1-1/16" x 7-5/8" |
| Door thickness | 1-5/8" to 2-1/4" |
| Finish | 605 / US3 – Bright Brass |
| Function | Vestibule |
| Handing | Field Reversible |
| Keyway | Schlage C SC1 |
| Latch bolt projection | 1/2" Latch, 1" Bolt |
| Lever knob design | Knob |
| Lock type | Screw on Plate Assemblies with Thread on Knobs |
| Manufacturer | Marks USA |
| Rose escutcheon design | Escutcheon |
