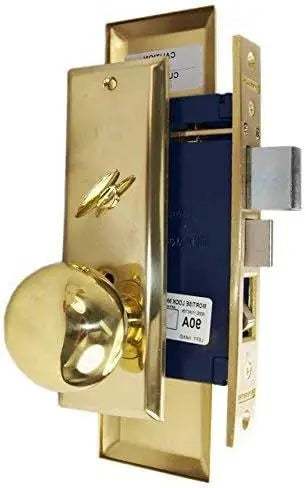

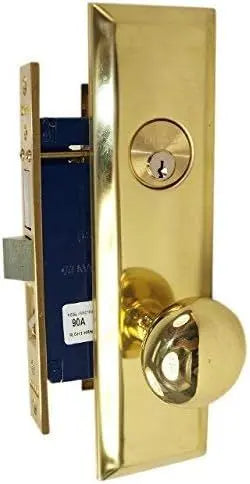

Marks USA 114A/3 Metro Mortise Lock, Apartment Entry, 2-1/2", SC1, Polished Brass
- Description
- Specifications
The Marks USA 114A/3 Metro Entry Mortise Lock is designed for apartment and commercial entry doors where both durability and aesthetics matter. It comes with thru-bolted knob/plate assemblies, a polished brass finish US3, a 2½″ backset, and a 1″‐throw cast brass deadbolt. The lock supports door thicknesses from 1¼″ to 1¾″, and the 1″ × 7 5⁄8″ front plate allows clean retrofit into many standard preparations. Field reversible for right-hand, left-hand, right-hand reverse, or left-hand reverse handing options, it includes a 5-pin SC1 cylinder and two keys as part of the standard configuration. Whether for residential buildings or commercial gated entries, this mortise lock delivers reliable performance with a refined architectural appearance.
| Backset | 2-1/2" |
|---|---|
| Case qty | 6 Pieces |
| Cylinder pins | Keyed - 5 Pin |
| Dimensions | Lock Front: 1-1/16" x 7-5/8" |
| Door thickness | 1-1/4" to 1-3/4" |
| Finish | 605 / US3 – Bright Brass |
| Function | Entry |
| Handing | Field Reversible |
| Keyway | Schlage C SC1 |
| Latch bolt projection | 1/2" Latch, 1" Bolt |
| Lever knob design | Knob |
| Lock type | Thru-Bolted Knob / Plate Assemblies with Spring Loaded Spindles |
| Manufacturer | Marks USA |
| Rose escutcheon design | Escutcheon |
