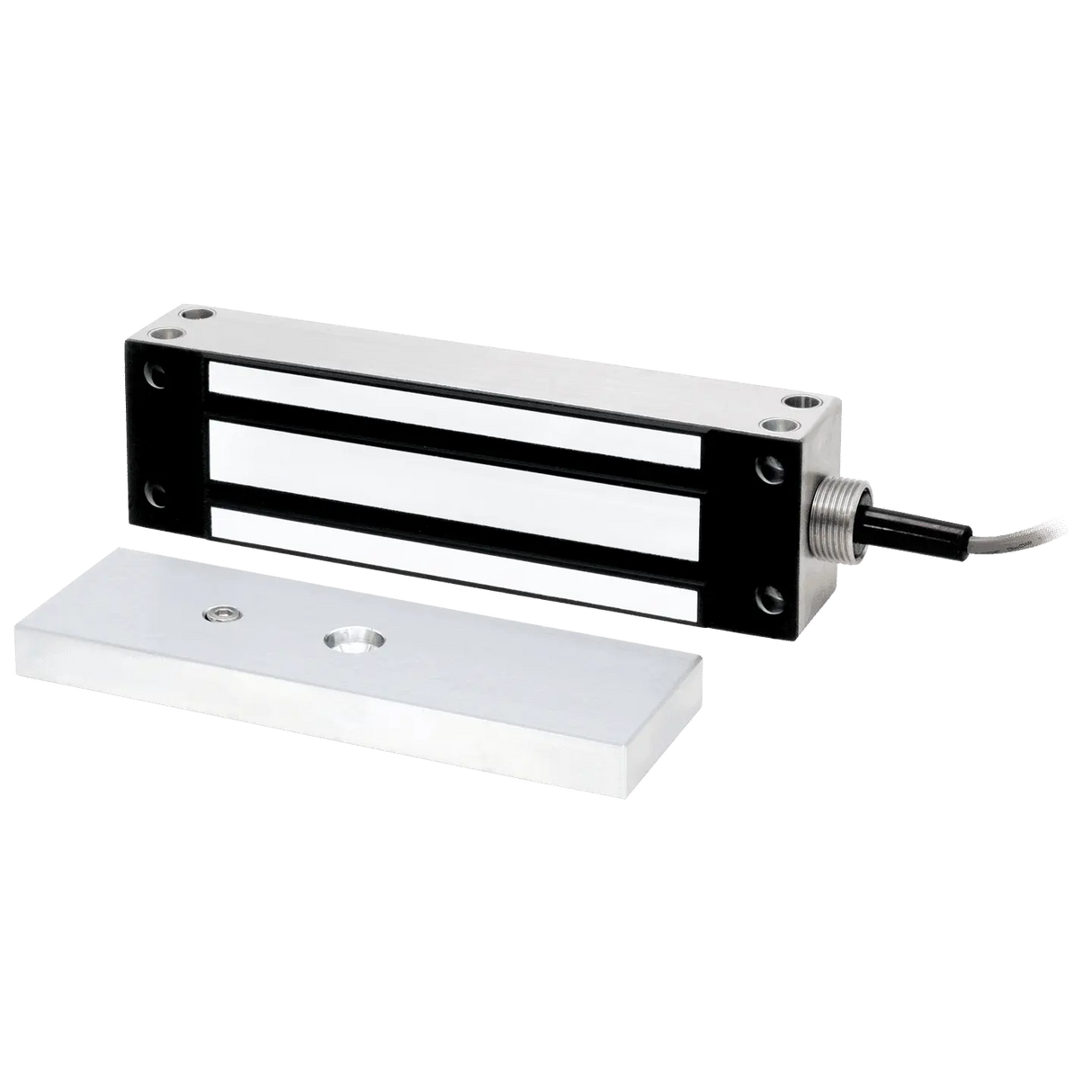

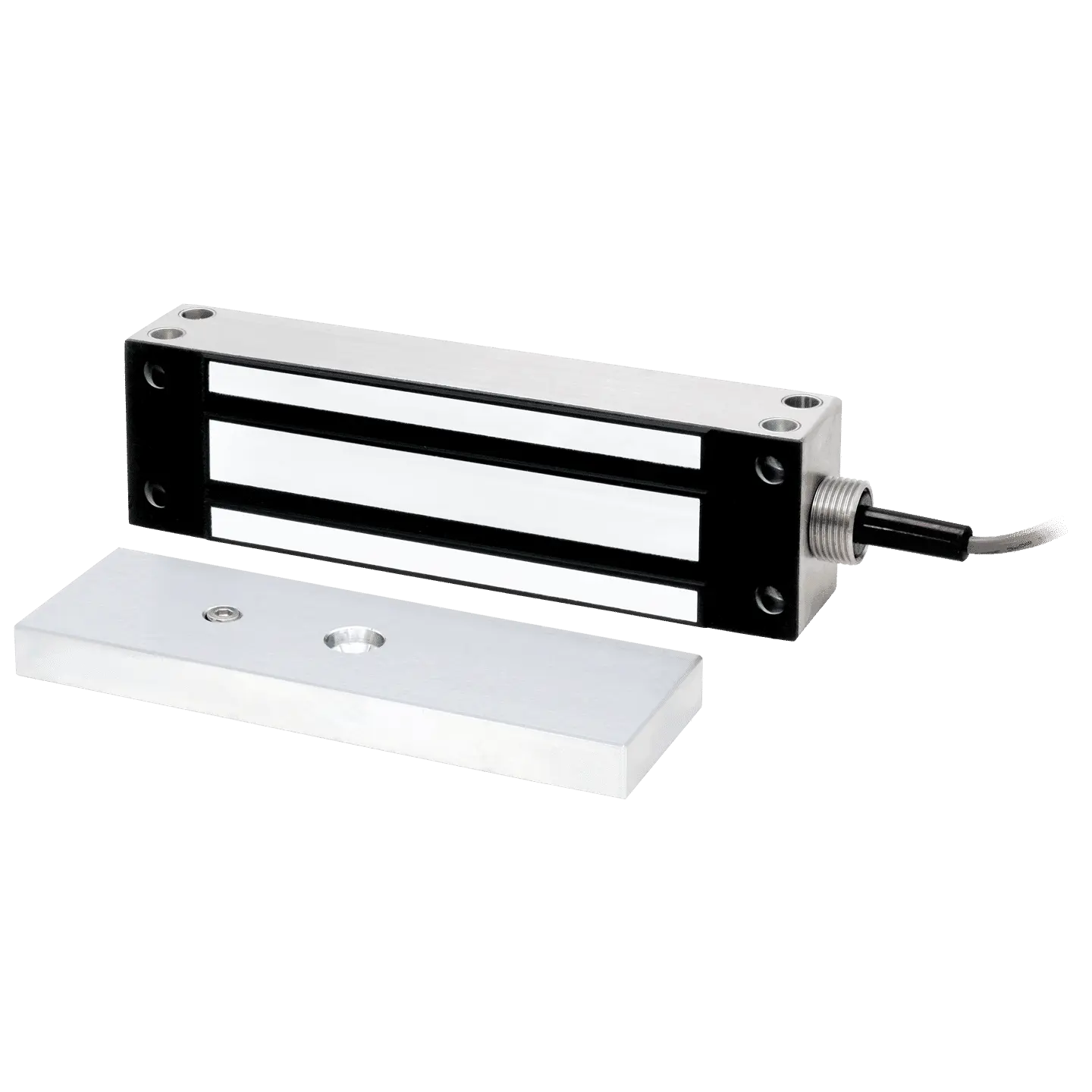

Seco-Larm E-946FC-1K2Q 12/24 VDC, 1,200 LB Waterproof IP67, Face or Surface Mount, Magnetic Lock

The SECO-LARM E-946FC-1K2Q is engineered for high-security indoor and outdoor use where durability, adaptability and weather resistance are critical.

It provides a holding force of 1,200 lb (544 kg) and supports selectable input of 12 VDC or 24 VDC. The unit features built-in MOV surge protection and no residual magnetism when de-energized. The housing is factory-sealed and waterproof with an IP67 rating, making it suitable for exposed environments.

Mounting options include both face and surface installations, accommodating sliding or swinging gates. The lock’s stainless-steel housing is vandal-resistant and includes dual-threaded conduit fittings for flexible wiring. It comes with an armature plate and full mounting hardware to simplify setup. Operating temperature spans from 14 °F to 131 °F (-10 °C to 55 °C).

This model is ideal for demanding access-control applications on perimeter gates, commercial entrances or heavy-use swing/slide doors where high holding force and weather-proof performance are required.
