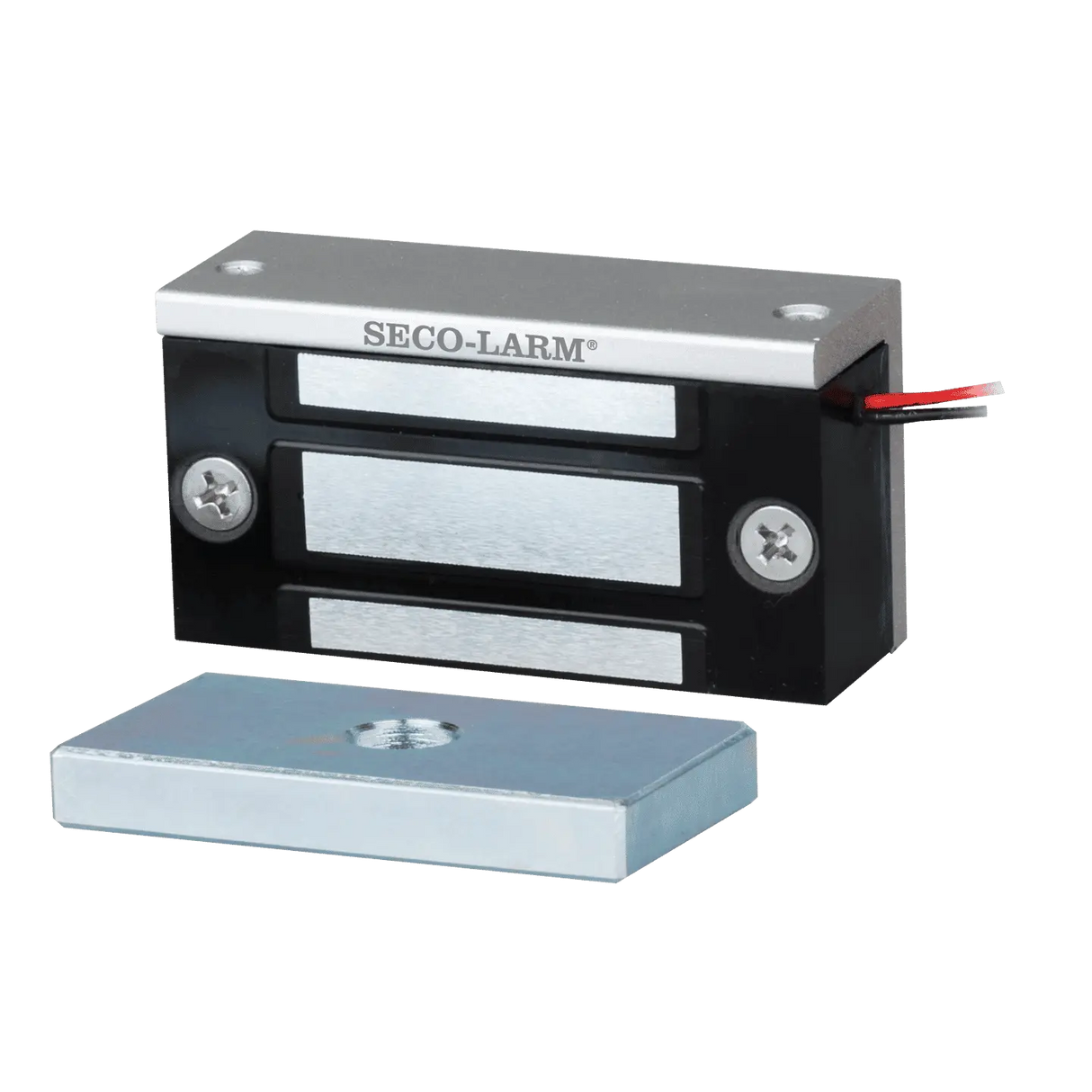

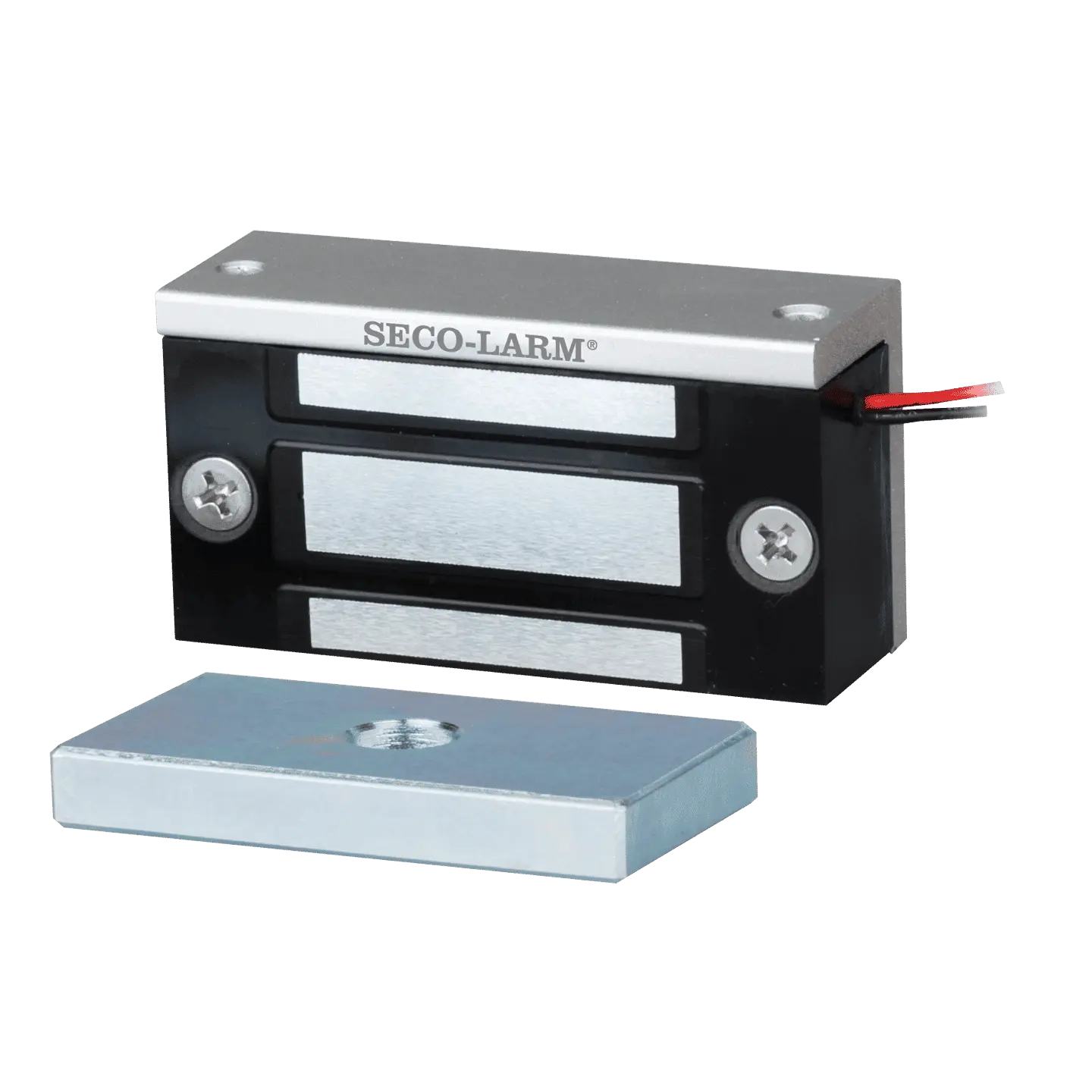

Seco-Larm E-941SA-80Q 12/24 VDC, 80 LB Magnetic Lock

The SECO-LARM E-941SA-80Q is a compact electromagnetic lock designed for light-duty applications. It provides a holding force of 80 lb at 12 VDC and 110 lb at 24 VDC, making it perfect for small enclosures where a standard mag lock would be oversized.

The unit operates on a selectable 12 or 24 VDC power input and features very low current draw for energy efficiency. Built-in MOV surge protection helps ensure long-term reliability, while the lock is designed with no residual magnetism for smooth release every time.

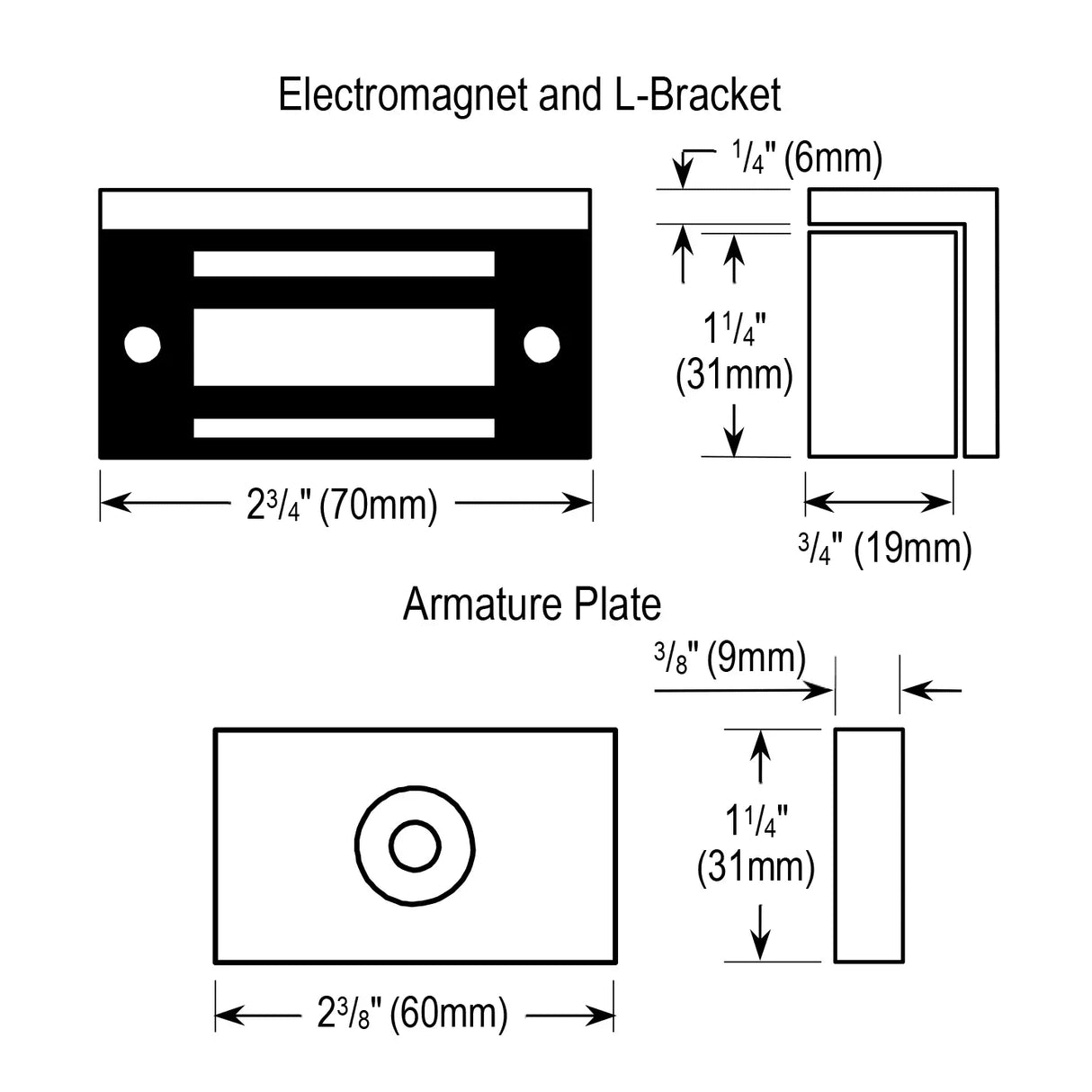

The E-941SA-80Q has a durable anodized aluminum housing and comes with a mounting bracket and hardware for simple installation. Its compact size — approximately 2-3/4″ × 1-1/4″ × 3/4″ — allows for use in tight spaces without compromising strength or functionality.

With its lightweight design and reliable performance, this magnetic lock is an excellent solution for securing cabinet doors, drawers, display cases, or other low-force access points in both residential and commercial environments.
