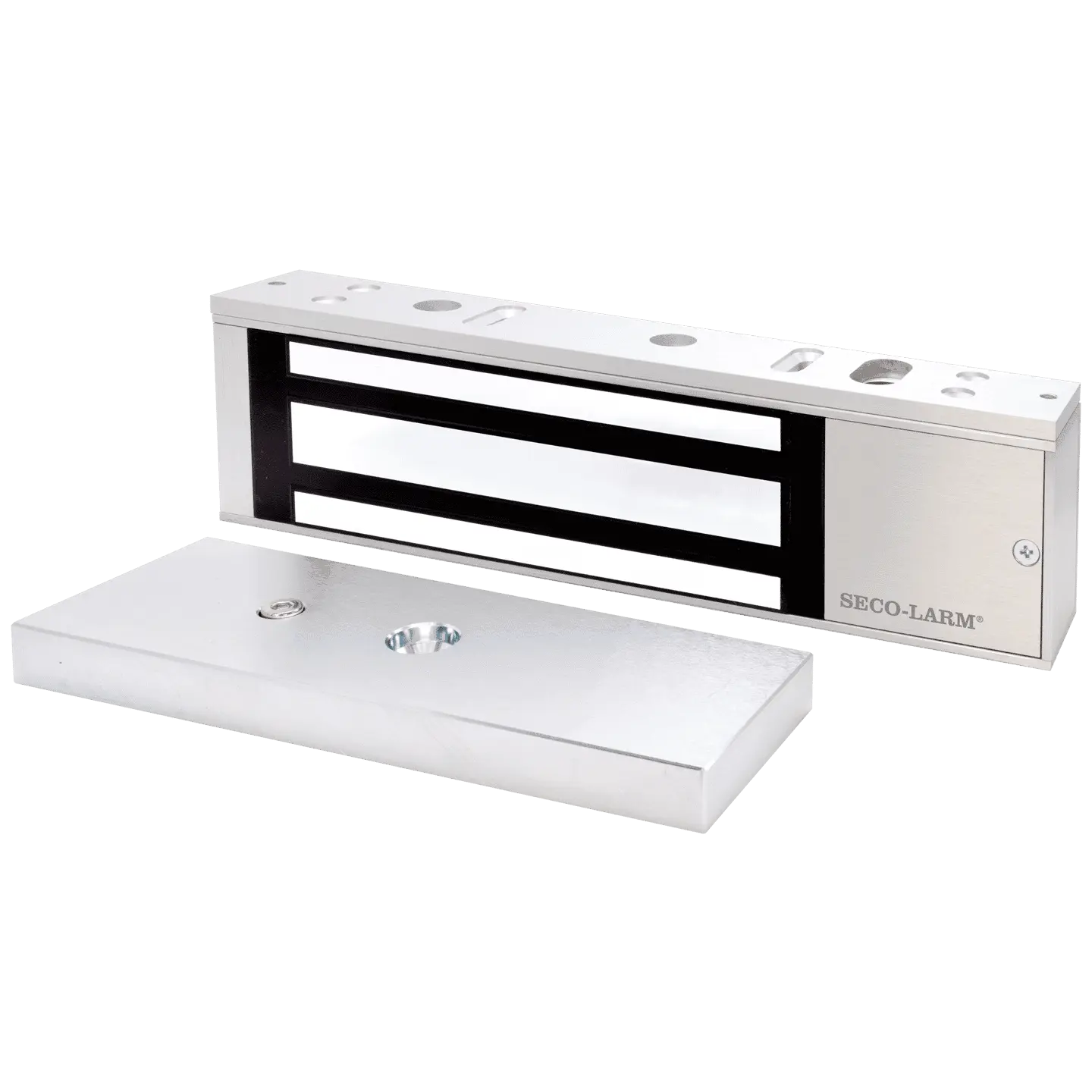

Seco-Larm E-941SA-1200 12/24 VDC, 1,200 LB Magnetic Lock

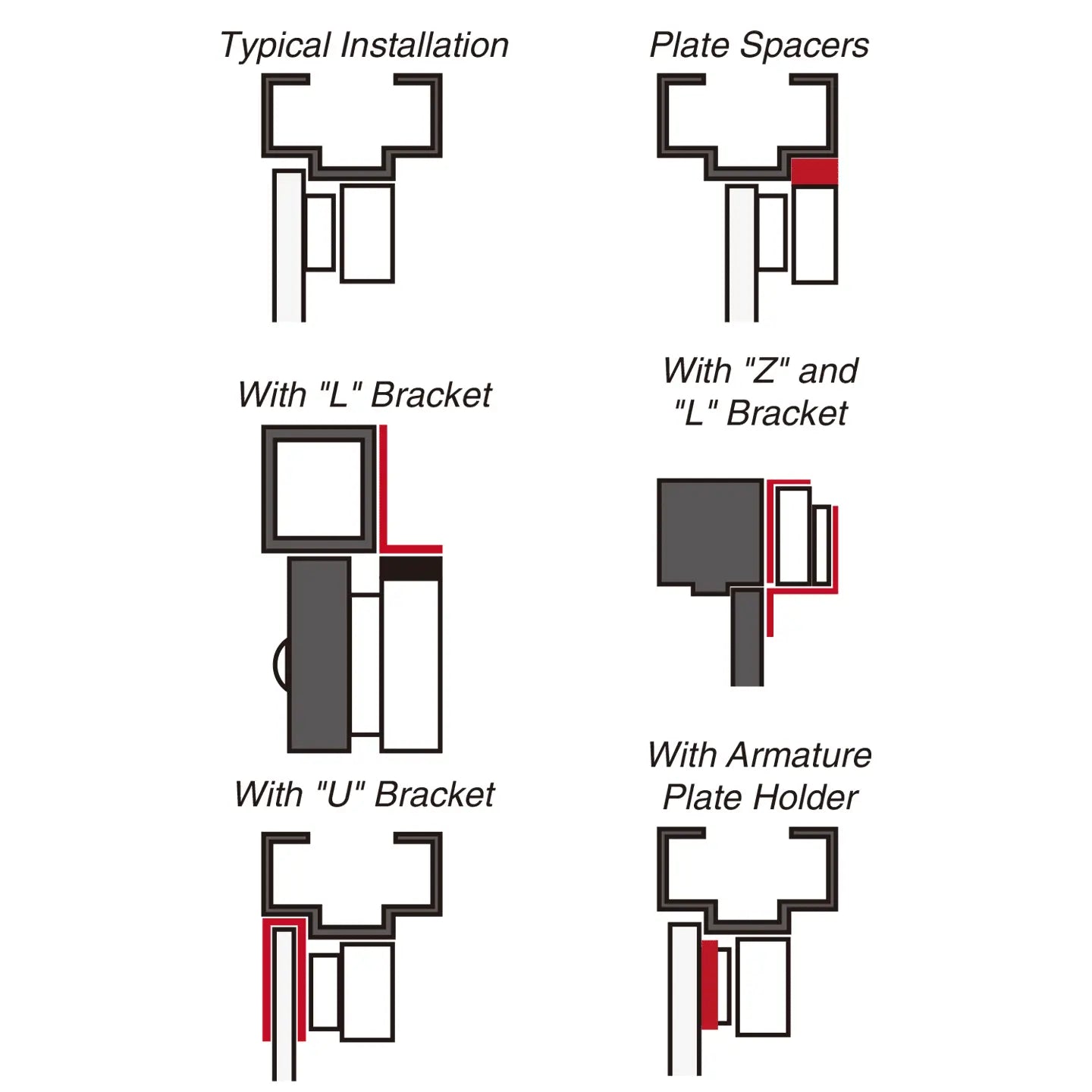

The SECO-LARM E-941SA-1200 is designed for heavy-duty single-door security applications. It offers a holding force of 1,200 lb (545 kg) and supports selectable operation at 12 VDC or 24 VDC. Its anodized aluminum housing provides robust protection, and built-in surge protection (MOV) ensures long-term reliability. The lock includes an adjustable mounting bracket and all standard hardware, making installation straightforward. With its detachable faceplate and UL/ULC listings (including UL294, UL1034, UL10B/10C), it meets demanding code and performance requirements. Ideal for commercial, institutional or high-traffic access points, this magnetic lock delivers premium performance in a reliable package.

Key Specifications:

• Holding force: 1,200 lb (545 kg)

• Operating voltage: 12/24 VDC selectable

• Current draw: 500 mA @ 12 VDC; 250 mA @ 24 VDC

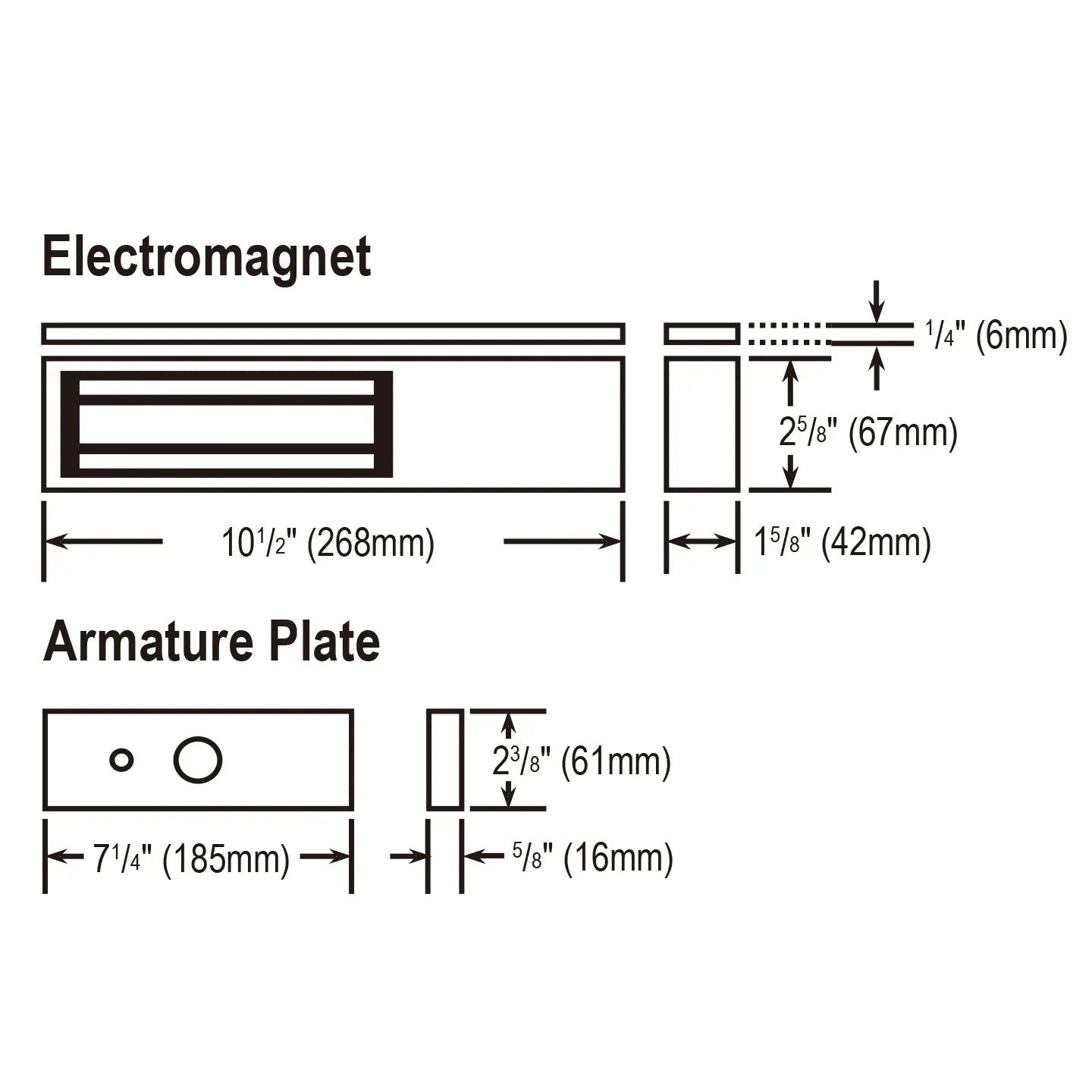

• Dimensions (magnet): 10-1/2″ x 2-5/8″ x 1-9/16″ (267 × 67 × 40 mm)
