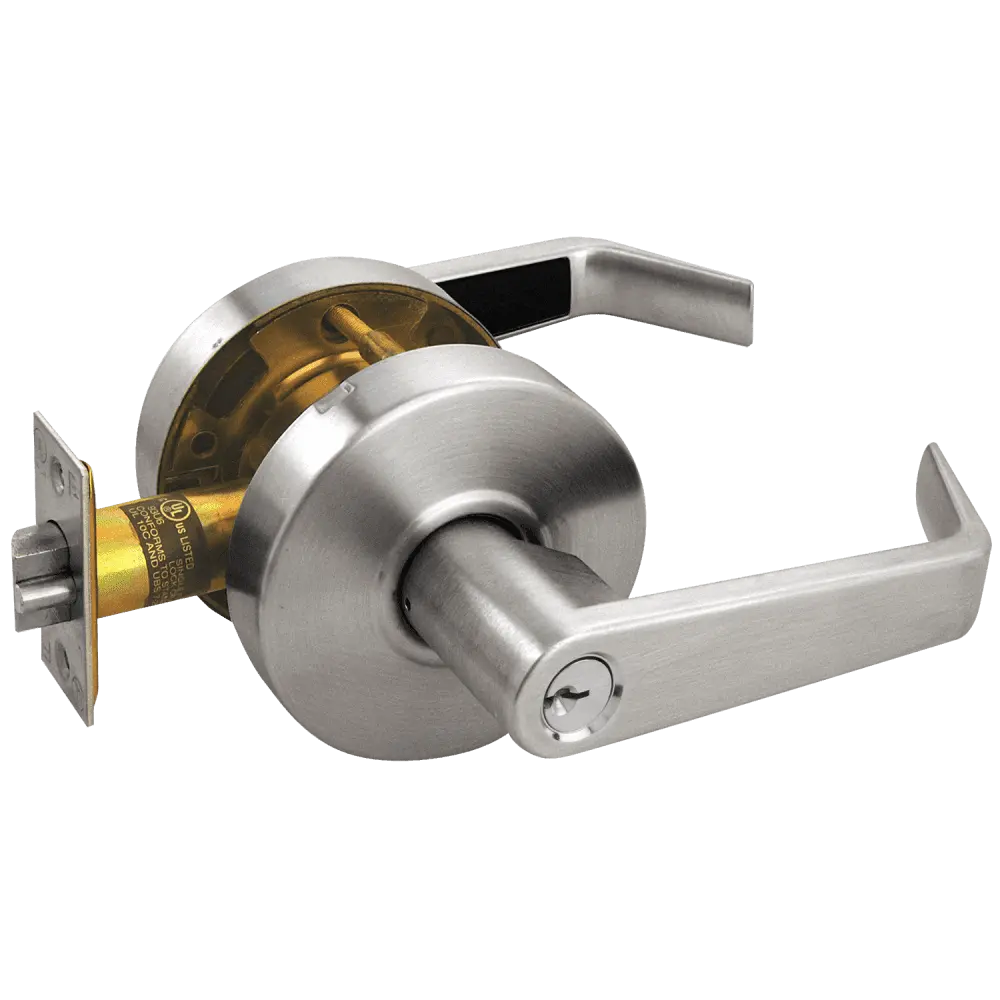

Arrow Lock RL12-SR-26D-R62-R71-KD-CS Grade 2 Sierra Lever Lock, Storeroom, Satin Chrome, SC1, 2-3/4"
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
Arrow RL Series cylindrical lever locksets are Grade 2, ADA-compliant levers designed for multi-family, commercial, and institutional applications. They feature a cold-rolled steel chassis, pressure-cast zinc levers, a UL-listed 1/2 in. brass latchbolt, and a 6-pin SC1 keyway cylinder. Supplied standard with a 2-3/4 in. backset; 2-3/8 in. backset available as an option with removable thru-bolts.
Features
- Manufacturer: Arrow Lock
- Finish: 626 / US26D – Satin Chrome
- Cylinder Pins: Keyed - 6 Pin
- Grade: Grade 2
- Function: Storeroom
- Backset: 2-3/4"
- Lever / Knob Design: Sierra Lever
- Handing: Non-Handed
- ANSI Function: F86
- Limited Warranty: 5 Year
- Case Qty: 10 Pieces
- Fire Rating: 3 Hour Fire Rating
- Door Thickness: 1-3/8" to 1-3/4"
- Rose / Escutcheon Design: 3-3/8" Rose Diameter
- Latch / Bolt Projection: 1/2"
- Keyway: SC1
| Ansi function | F86 |
|---|---|
| Backset | 2-3/4" |
| Case qty | 10 Pieces |
| Cylinder pins | Keyed - 6 Pin |
| Door thickness | 1-3/8" to 1-3/4" |
| Finish | 626 / US26D – Satin Chrome |
| Fire rating | 3 Hour Fire Rating |
| Function | Storeroom |
| Grade | Grade 2 |
| Handing | Non-Handed |
| Keyway | Schlage C SC1 |
| Latch bolt projection | 1/2" |
| Lever knob design | Sierra Lever |
| Limited warranty | 5 Year |
| Manufacturer | Arrow Lock |
| Rose escutcheon design | 3-3/8" Rose Diameter |
