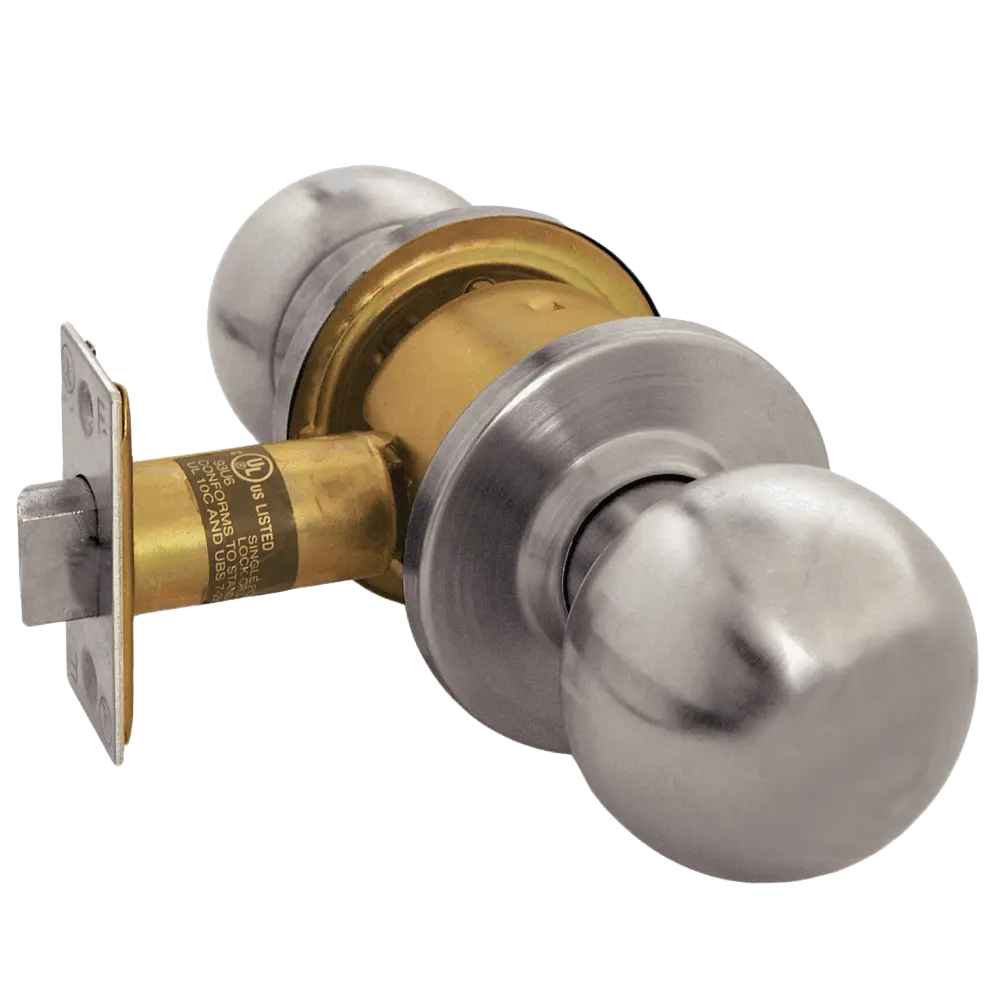

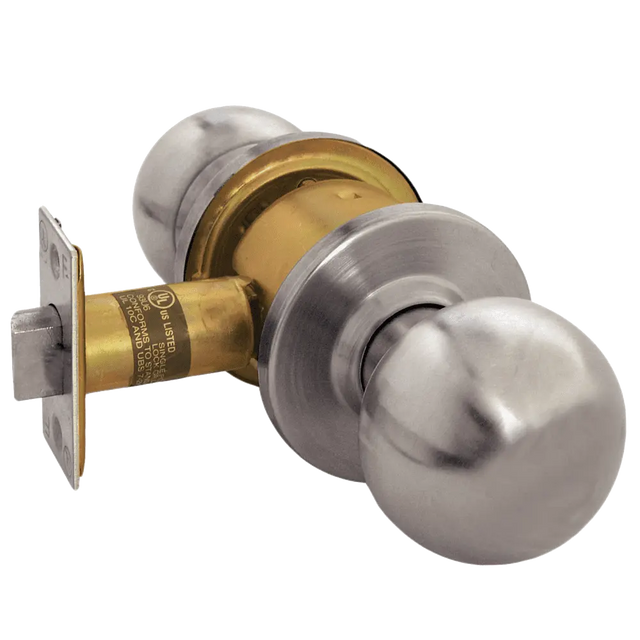

Arrow Lock RK01-BD-32D-R60-R73 Grade 2 Ball Knob Lock, Passage, Satin Stainless Steel, 2-3/4"
Get a restock alert
We’ll send you an email the moment this item is available to order again.
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
Arrow RK Series cylindrical knob locksets are Grade 2, value-engineered locksets for multi-family housing and light commercial applications. They feature cold-rolled steel construction with corrosion-resistant zinc dichromate treatment, a guarded 1/2 in. brass latchbolt, and a 6-pin cylinder in Schlage SC1 keyway. UL listed for 3-hour fire-rated doors and ANSI/BHMA A156.2 certified.
Features
- Finish: 630 / US32D – Satin Stainless Steel
- Grade: Grade 2
- Function: Passage
- Backset: 2-3/4"
- Handing: Non-Handed
- Limited Warranty: 5 Year
- Case Qty: 10 Pieces
- Fire Rating: 3 Hour Fire Rating
- Door Thickness: 1-3/8" to 1-3/4"
- Latch / Bolt Projection: 1/2"
- Keyway: SC1
| Backset | 2-3/4" |
|---|---|
| Case qty | 10 Pieces |
| Door thickness | 1-3/8" to 1-3/4" |
| Finish | 630 / US32D – Satin Stainless Steel |
| Fire rating | 3 Hour Fire Rating |
| Function | Passage |
| Grade | Grade 2 |
| Handing | Non-Handed |
| Latch bolt projection | 1/2" |
| Limited warranty | 5 Year |
| Manufacturer | Arrow Lock |
