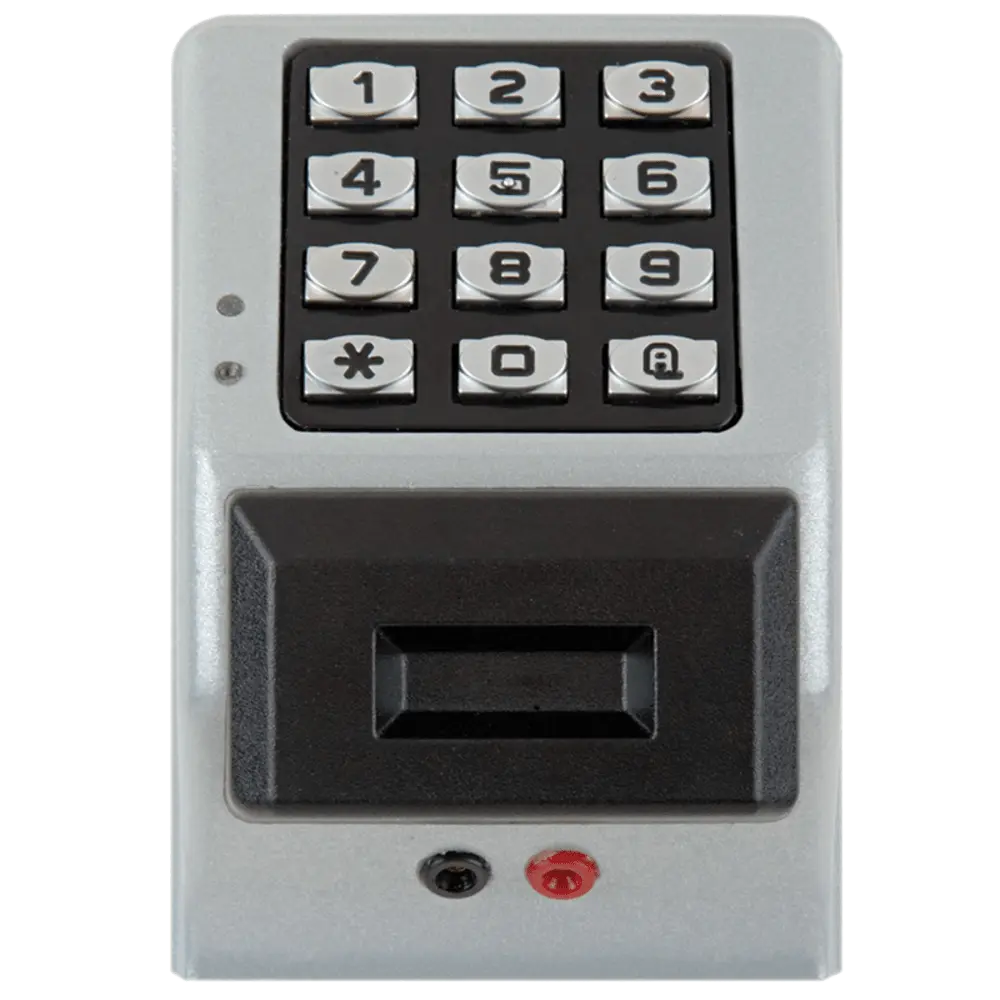

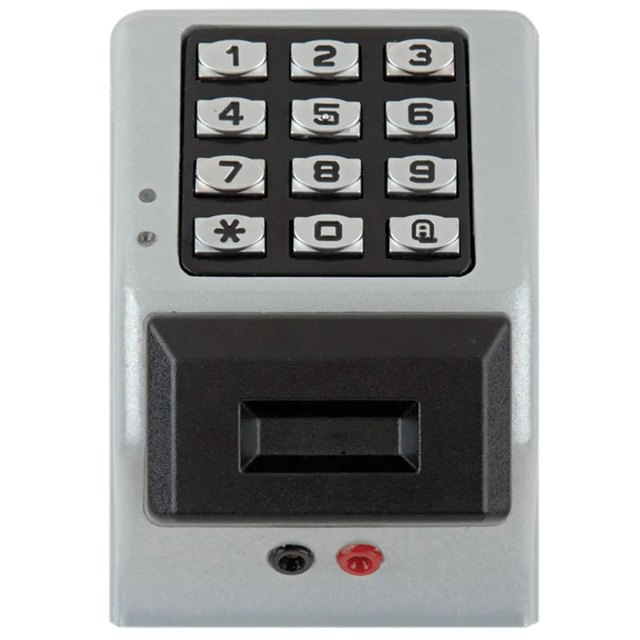

Alarm Lock PDK3000MS Trilogy Prox Keypad, 2000 Users, 40,000 Event Audit Trail, Metallic Silver

The Alarm Lock PDK3000MS from the Trilogy® T3 series is a weather-proof, heavy-duty access control keypad with integrated HID proximity reader, designed for applications that demand high user capacity, audit logging and reliable performance. It supports up to 2,000 user PIN codes and/or proximity cards, and stores up to 40,000 time-stamped events for comprehensive access-tracking.

As a surface-mount wall unit (or single-gang box retrofit), it features a rugged all-metal 12-button keypad, dual Form C high-current relays (for entry, lock release or auxiliary functions) and is rated for harsh outdoor conditions (–31 °F to +151 °F / –35 °C to +66 °C).

Key attributes:

• Accepts PIN codes, HID prox cards or fobs (or both) for versatile credentialing.

• Built-in scheduling capability with real-time clock, allowing up to 500 scheduled events (e.g., auto‐lock/unlock) and audit exportable via PC or handheld device.

• 2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule

• Voltage range (12/24 VAC/DC) supports flexible installation into existing infrastructure.

• Finish: Metallic Silver (MS) – sleek, modern look for architectural doors.

Whether for corporate offices, healthcare facilities, education campuses or multi-tenant properties, the PDK3000MS offers enterprise-level standalone access control without requiring full access-control network wiring.
