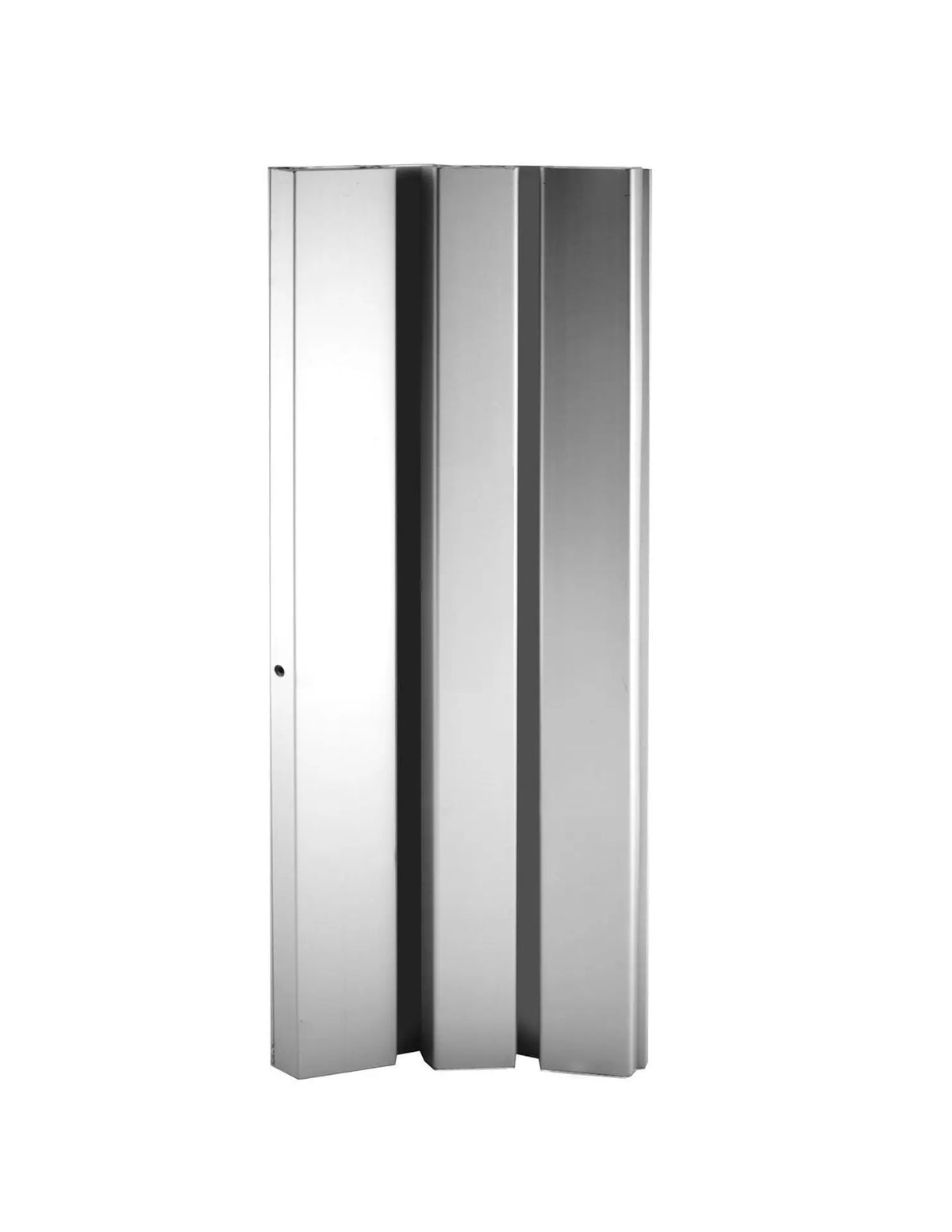

The ABH A570HDD095 is a full surface, heavy-duty aluminum continuous gear hinge built for high-traffic commercial and institutional door openings. At 95" in length and rated for doors up to 450 lbs, it delivers reliable, long-term performance on oversized 8'0" doors in narrow-faced frame applications.
- Full Surface Geared Design: Continuous geared construction distributes load evenly across the full door height, eliminating hinge sag and reducing frame stress.
- Material: Extruded 6063-T6 aluminum alloy body with polyacetal thrust bearings for smooth, low-wear operation.
- Finish: US313/690 Duronotic Dark Bronze Anodized (2-Step process) for corrosion resistance and a clean architectural appearance.
- Heavy-Duty Load Rating: Supports doors up to 450 lbs and 48" maximum width.

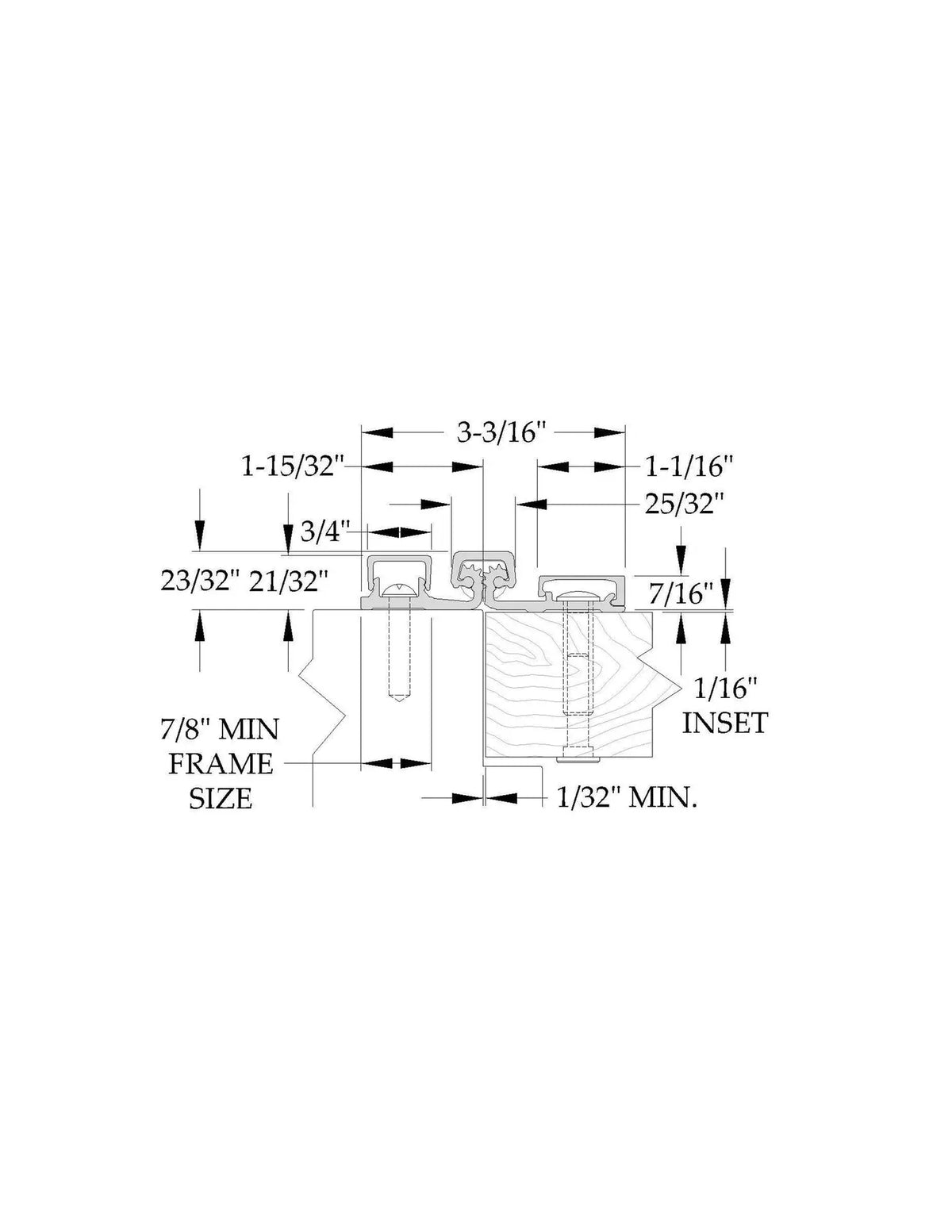

- Door Compatibility: Designed for 1-3/4" doors with a 1/16" inset; suitable for flush aluminum, glass rail, hollow metal, or wood doors on narrow-faced frames.
- Non-Handed: Reversible for use on left- or right-hand doors (non-handed unless cut in the field).
- Fire Rated: UL/ANSI listed — approved for metal swinging fire doors rated up to 90 minutes and wood swinging fire doors rated up to 60 minutes.
- ANSI/BHMA Certified: Meets ANSI/BHMA A156.26-2017, BHMA Grade 1 performance standards.
| Door thickness | 1-3/4" |
|---|---|
| Door width | 42" to 48" |
| Fire rating | 90 Min |
| Handing | Non-Handed |
| Manufacturer | ABH Mfg |
| Material | Aluminum |
