ABH A570HDD083 Full Surface Continuous Geared Hinge – 83" Dark Bronze Anodized
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads

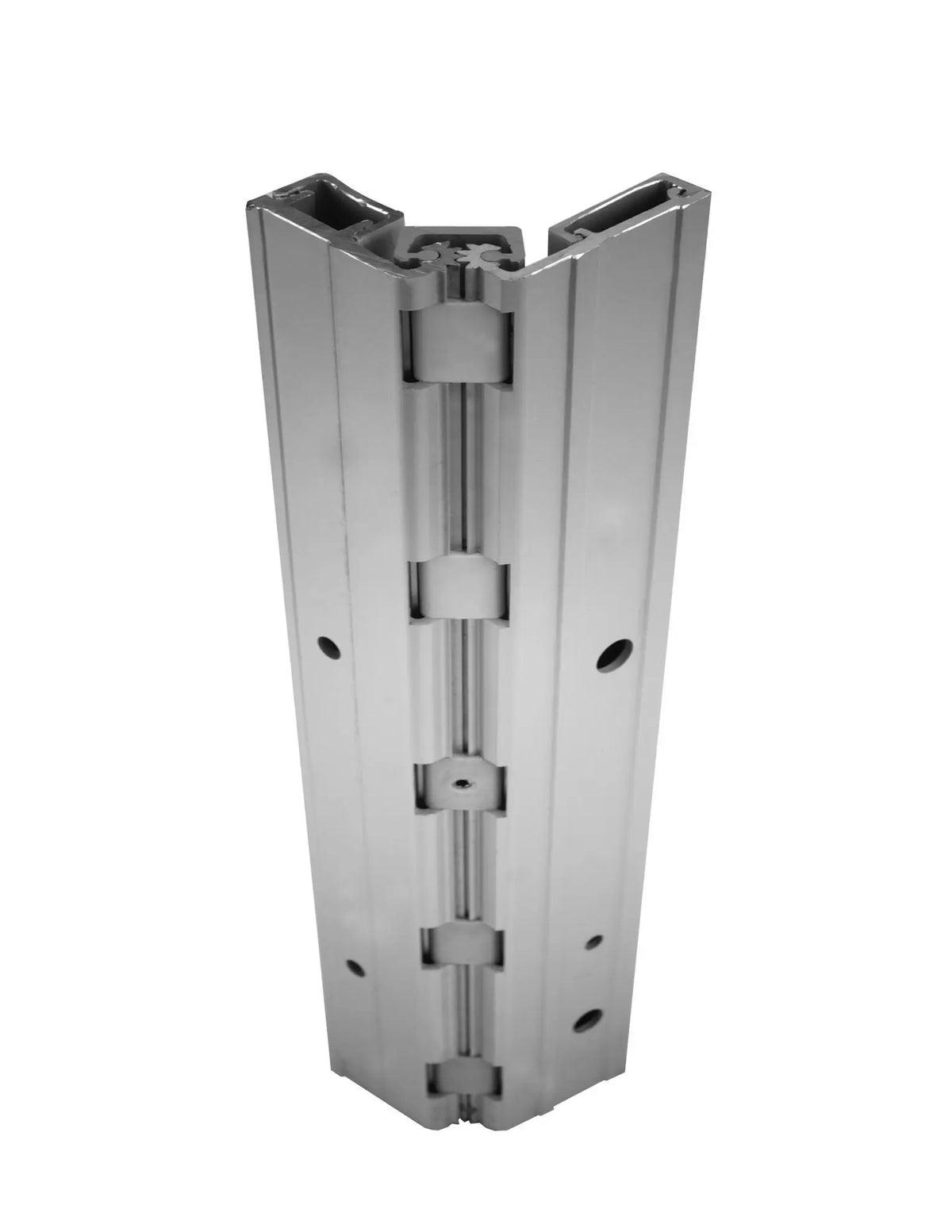

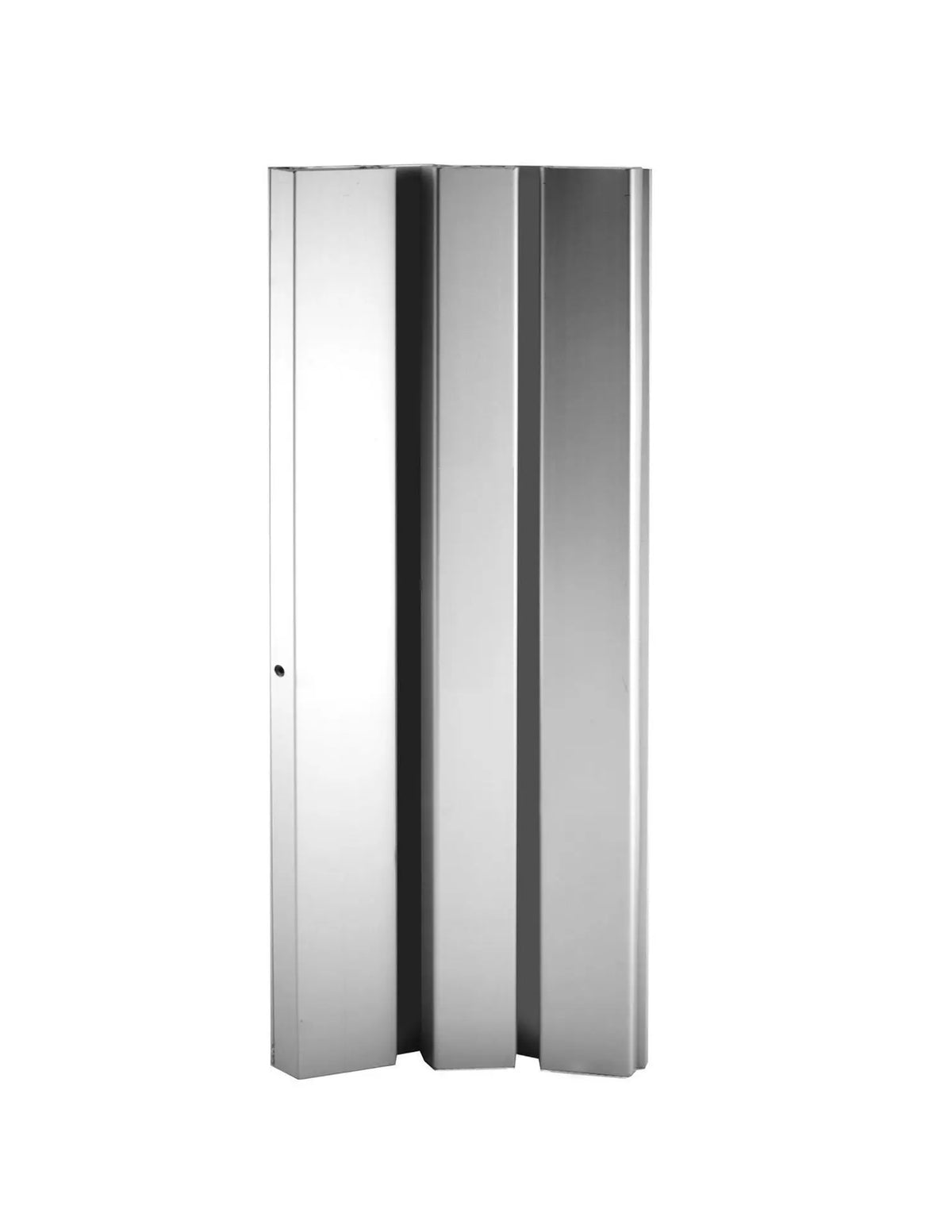

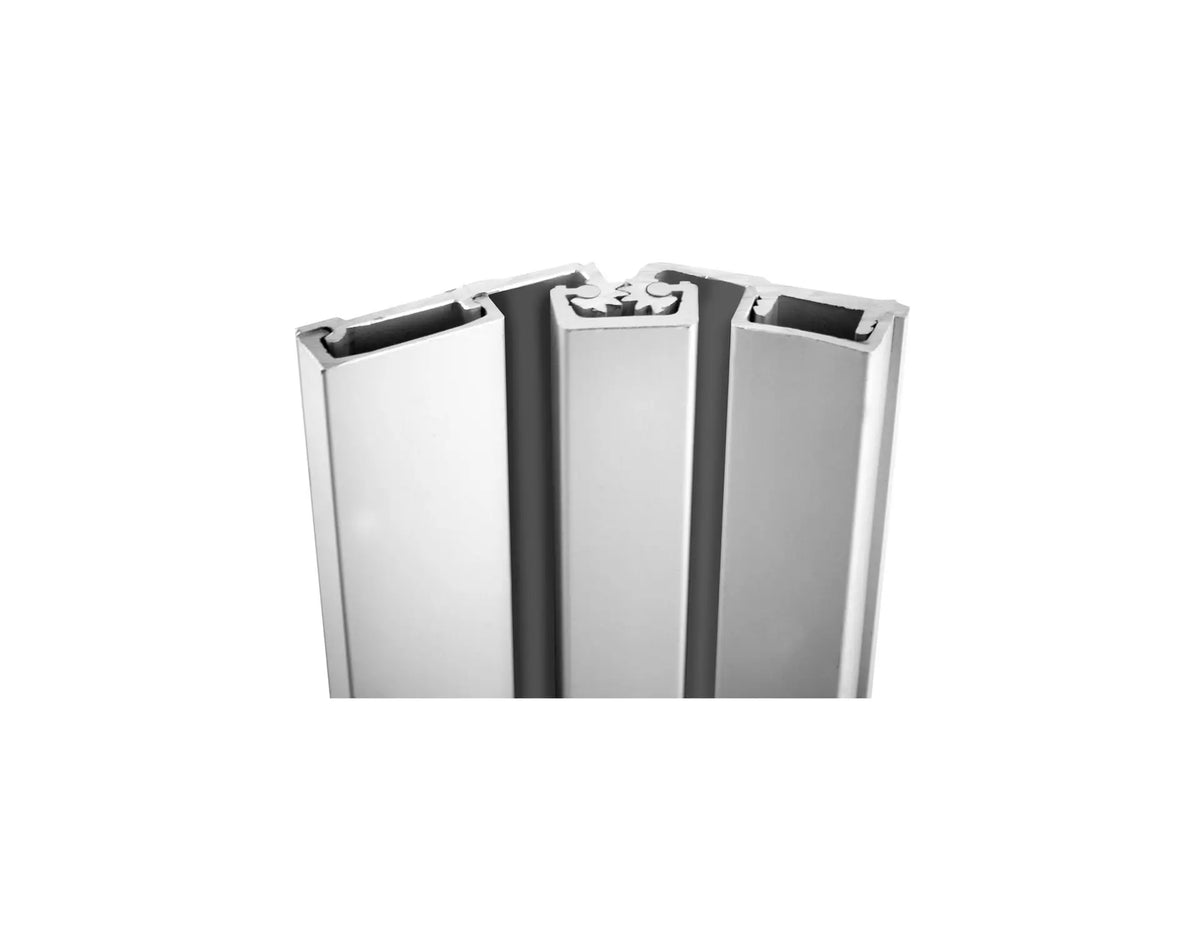

The ABH A570HDD083 is a heavy-duty, full surface continuous geared hinge designed for demanding commercial and institutional door openings. Its 83" length, dark bronze anodized (Duronodic) finish, and extruded 6063-T6 aluminum construction deliver long-lasting performance on narrow-faced frames in high-traffic environments.

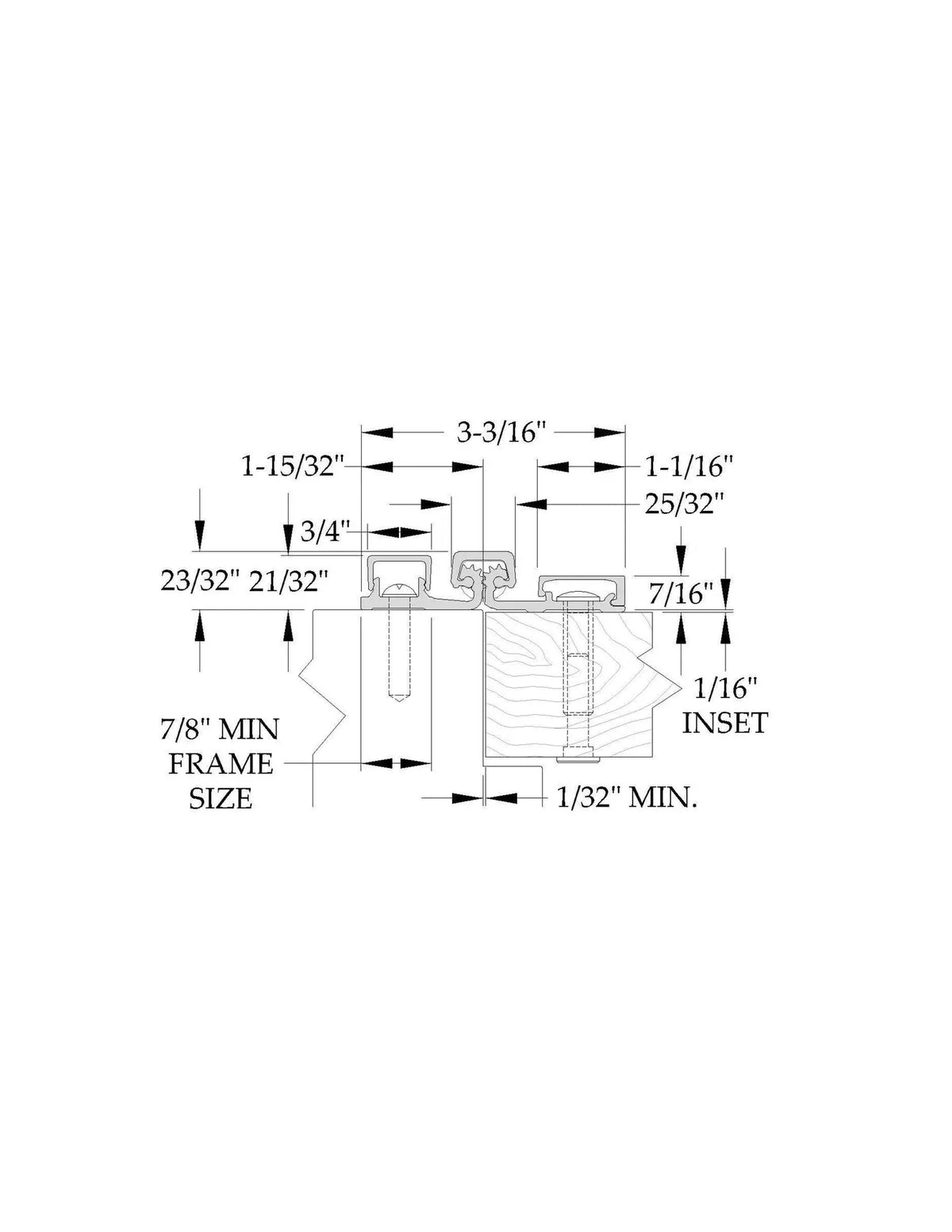

- Mounting Style: Full surface with 1/16" door inset — purpose-built for narrow-faced frames with a minimum 7/8" frame depth
- Finish: Dark Bronze anodized (Duronodic) — corrosion-resistant anodized aluminum finish
- Material: Extruded 6063-T6 aluminum alloy with polyacetal thrust bearings
- Capacity: Rated for doors up to 48" wide and 450 lbs; suitable for 1-3/4" door thickness
- Grade & Certification: ANSI/BHMA A156.26 Grade 1 certified
- Fire Rating: UL Listed — approved for metal swinging fire doors rated up to 90 minutes and wood swinging fire doors rated up to 60 minutes; 3-hour rating available with steel stud option
- Handing: Non-handed (reversible unless field-cut); 83" length can be field-cut down to 79" without affecting bearings or hole pattern
- Fasteners Included: 12-24 × 7/8" undercut self-drilling thread-forming TEK machine screws for frame; 1/4-20 sex bolts and shoulder bolts for door
- Warranty: Lifetime warranty
| Door thickness | 1-3/4" |
|---|---|
| Door width | 42" to 48" |
| Fire rating | 90 Min |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | Lifetime |
| Manufacturer | ABH Mfg |
| Material | Aluminum |
