The ABH A570HDC095 is a BHMA Grade 1, heavy-duty full surface geared continuous hinge engineered for demanding commercial applications. At 95" in length, it is sized for 8'0" door openings and distributes door weight evenly along the full height of the frame, eliminating sag and reducing wear on the door and frame.
- Hinge Type: Full surface, geared continuous hinge — non-handed unless cut in the field
- Length: 95" (suited for 8'0" doors)
- Finish: 628 — 30-minute clear anodized aluminum

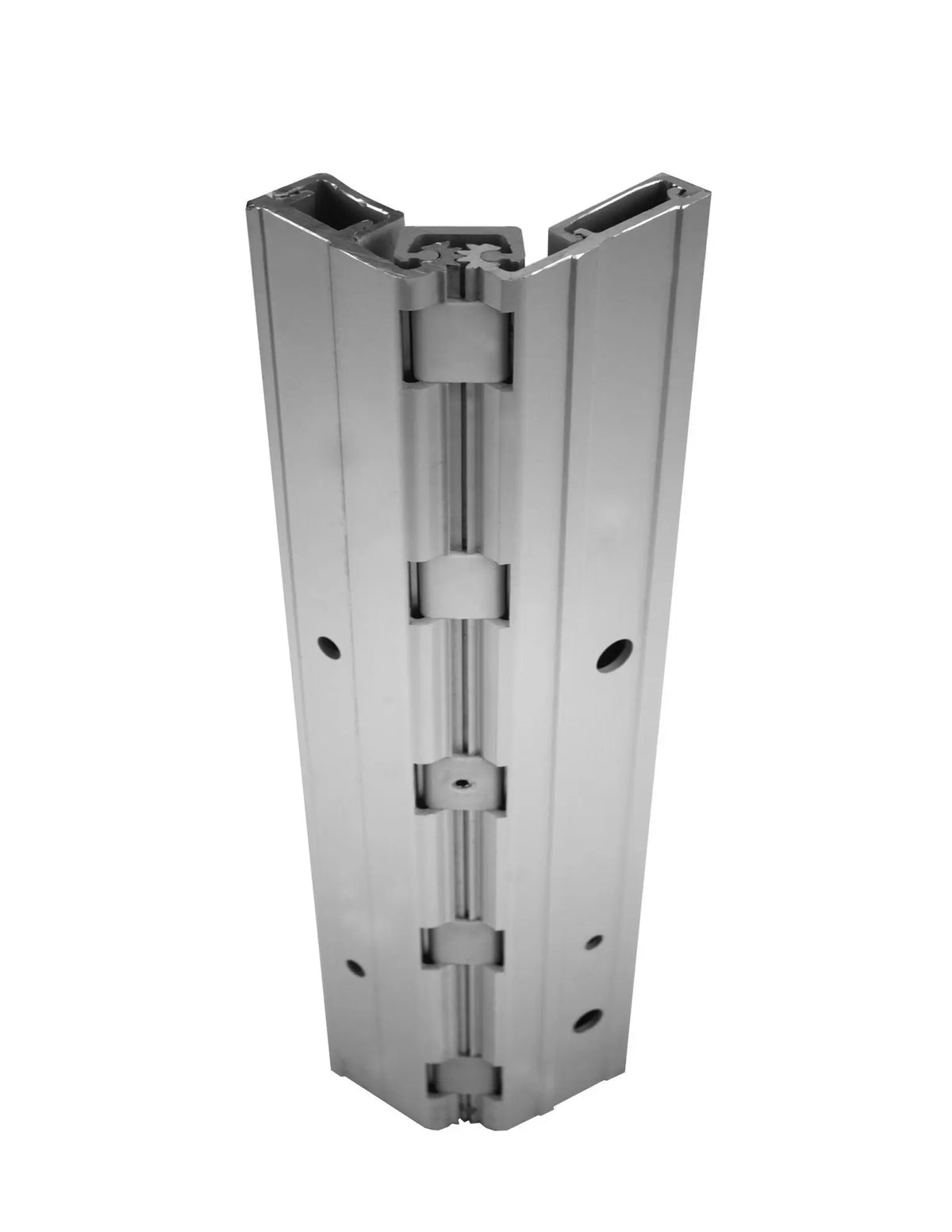

- Material: Extruded 6063-T6 aluminum alloy with polyacetal thrust bearings
- Load Capacity: Supports doors up to 450 lbs; maximum door width 48"

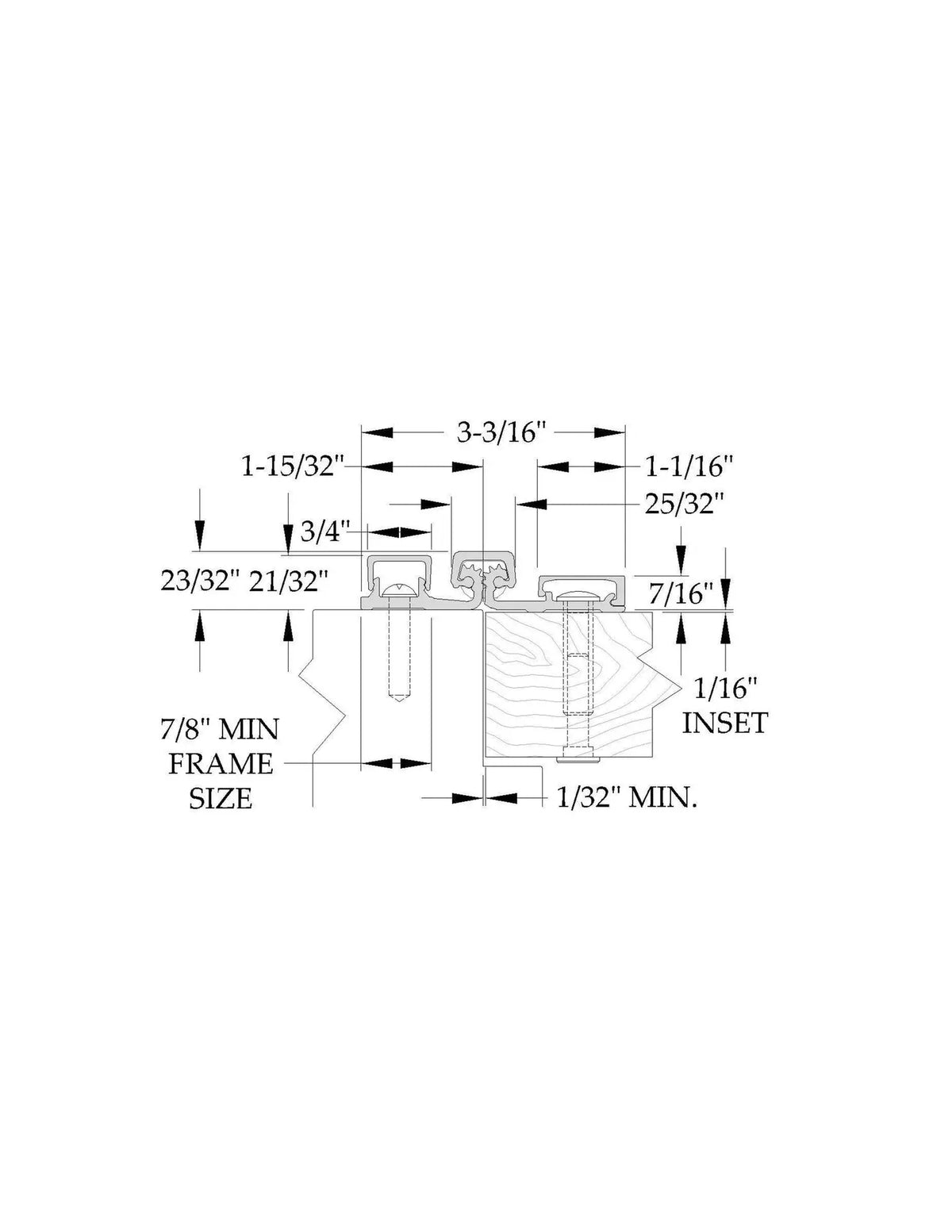

- Door Compatibility: For 1-3/4" doors; compatible with flush aluminum, glass rail, hollow metal, and wood doors; 7/8" minimum frame required
- Door Inset: 1/16" inset for narrow-faced frames
- Fire Rating: UL listed — approved for metal swinging fire doors up to 90 minutes and wood swinging fire doors up to 60 minutes
- ANSI/BHMA Standard: ANSI/BHMA A156.26-2017 certified, Grade 1
- Fasteners Included: 12-24 undercut self-drilling, thread-forming tek machine screws (frame) and 1/4-20 sex bolts and shoulder bolts (door)
- Frame Reinforcement: None required for doors under 200 lbs; reinforce with 16-gauge channel for doors over 200 lbs
| Door thickness | 1-3/4" |
|---|---|
| Door width | 42" to 48" |
| Finish | Clear |
| Fire rating | 90 Min |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Manufacturer | ABH Mfg |
| Material | Aluminum |
