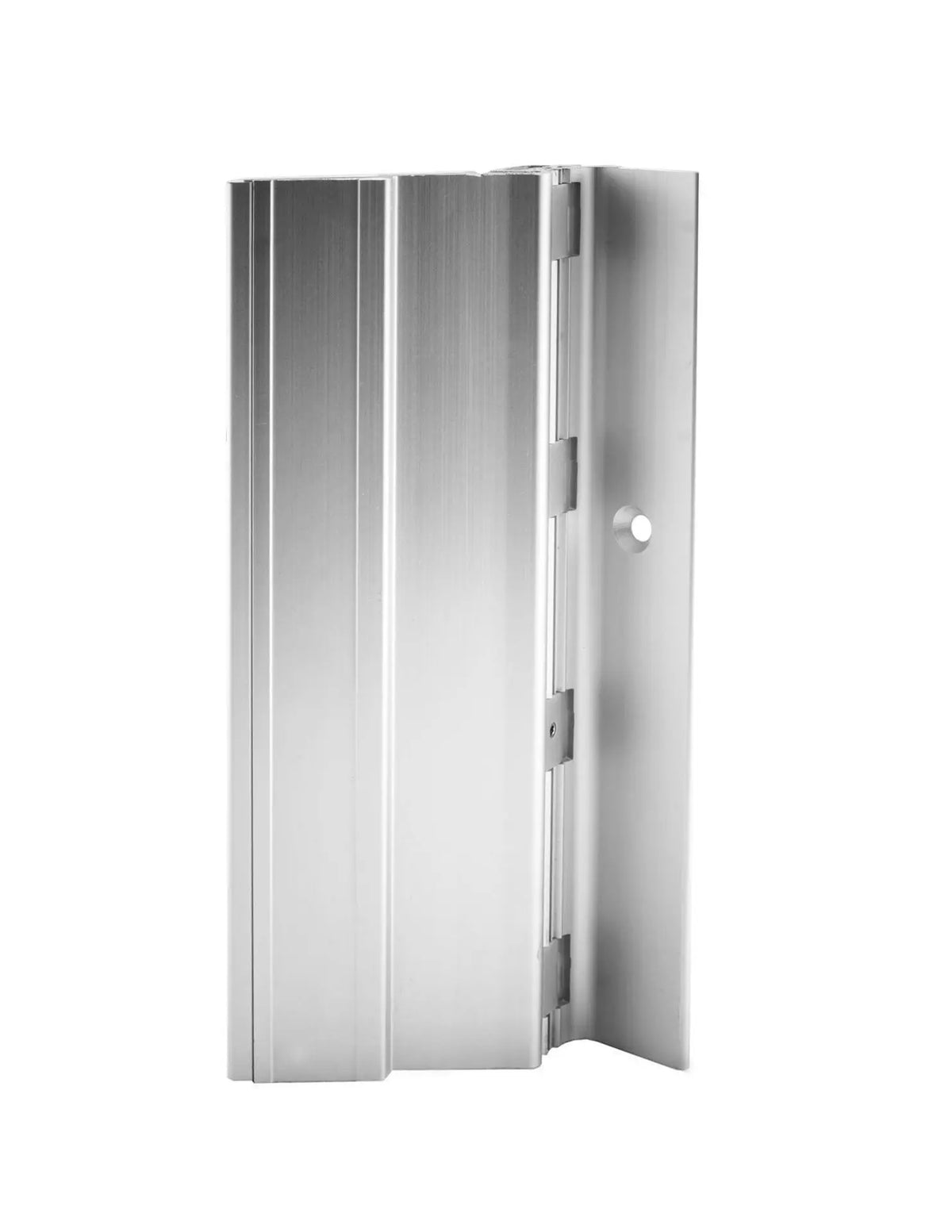

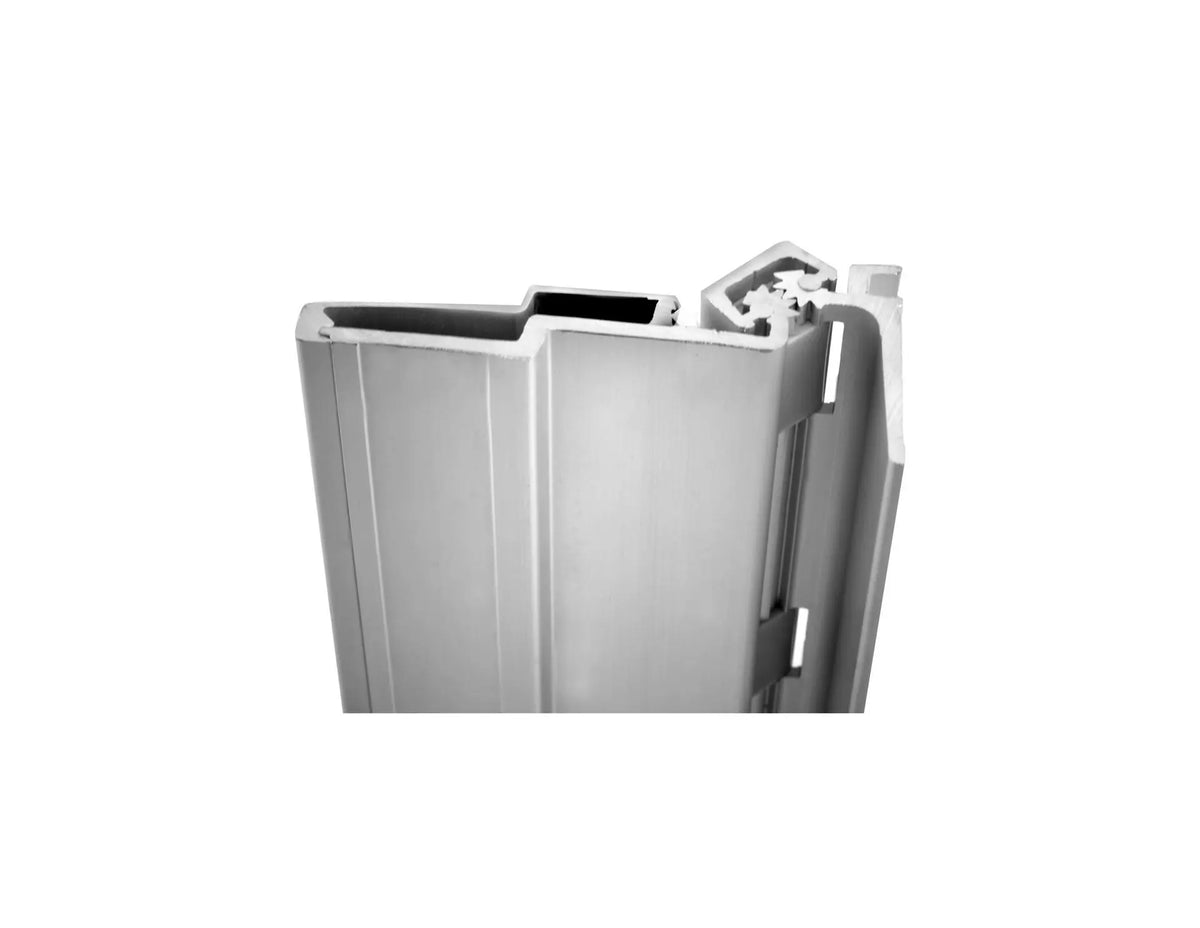

ABH A210HDD083 Full Surface Swing Clear Continuous Gear Hinge – 83" Dark Bronze, Dutch Door Prep

The ABH A210HDD083 is a full surface, heavy-duty aluminum continuous gear hinge engineered for high-traffic commercial and institutional door applications. Featuring a swing clear design and Dutch Door preparation, it mounts flush to the door and frame with no mortising required, making it a fast-install permanent solution for new construction or retrofit projects.

• BHMA Grade 1 / ANSI/BHMA A156.26-2017 Certified — meets the highest performance standard for continuous hinges
• Full Surface, Flush Mount, No Door Inset — surface applied to both door and frame faces; covers existing butt hinge cut-outs
• Swing Clear Design — swings the door completely out of the opening, maximizing clear width
• Dutch Door Preparation — factory-prepped for Dutch Door (split door) applications
• 83" Length — sized for standard 7'0" doors; can be field cut to 79" without cutting through a bearing or mounting hole
• Dark Bronze (Oxidized Satin Bronze) Anodized Finish
• Material: Extruded 6063-T6 aluminum alloy with Polyacetal thrust bearings
• Door Capacity: Up to 48" wide and 450 lbs; compatible with flush aluminum, glass rail, hollow metal, and wood doors (1-3/4" thick)
• Fire Rating: Approved for metal swinging fire doors up to 90 minutes and wood swinging fire doors up to 60 minutes
• Non-Handed — hinge is non-handed unless field cut
• Fasteners Included: 12-24 × 7/8" undercut self-drilling tek machine screws (frame) and 1/4-20 sex bolts and shoulder bolts (door)
• Frame Reinforcement: 16-gauge channel recommended for doors over 200 lbs
