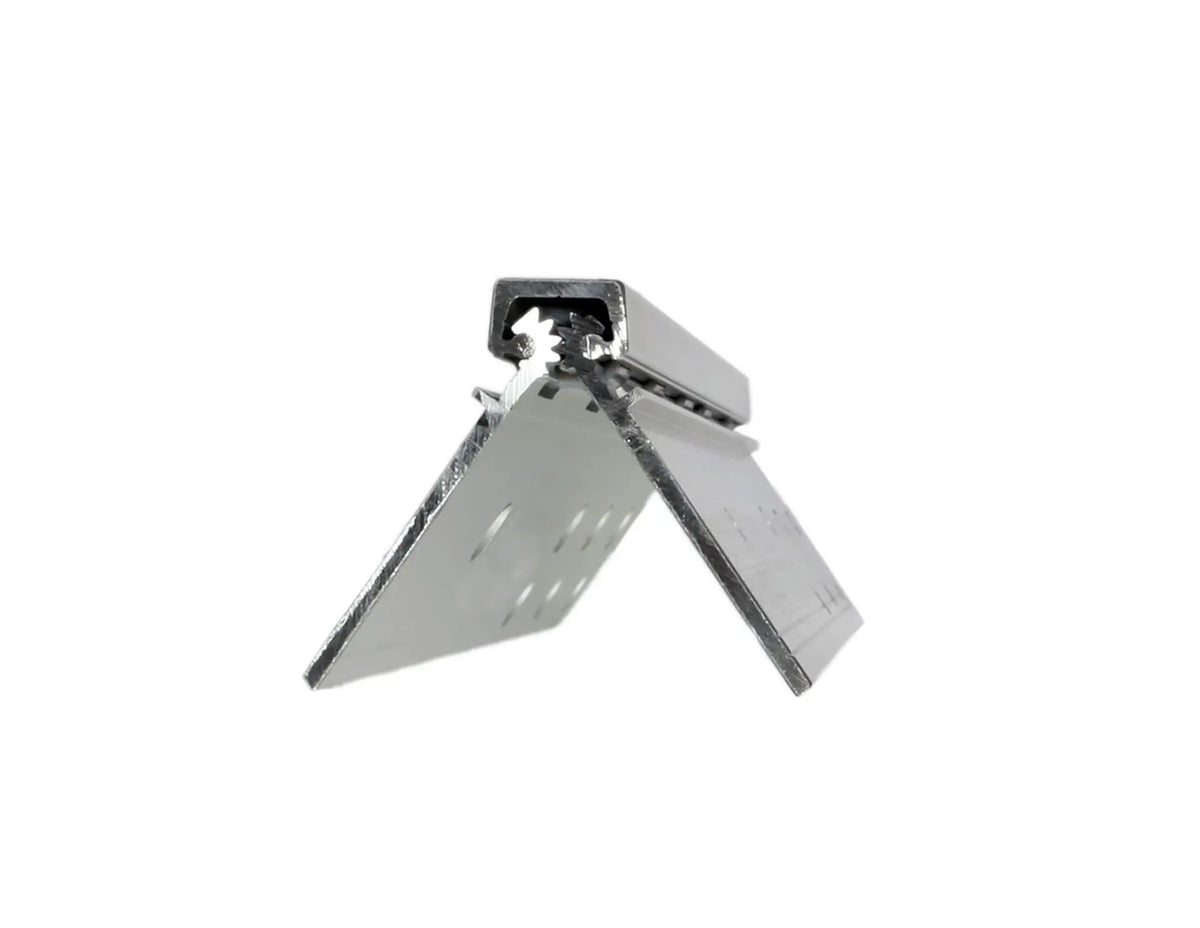

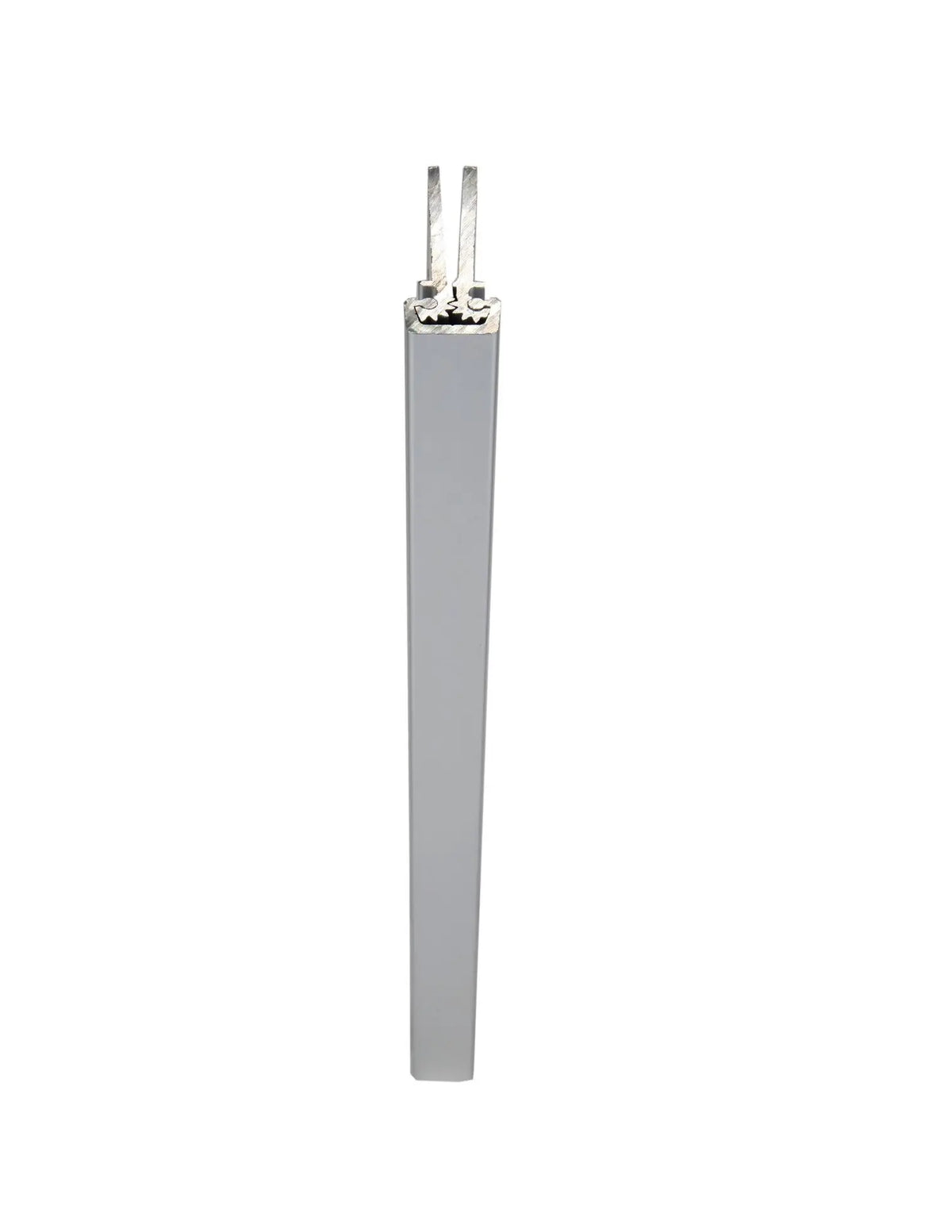

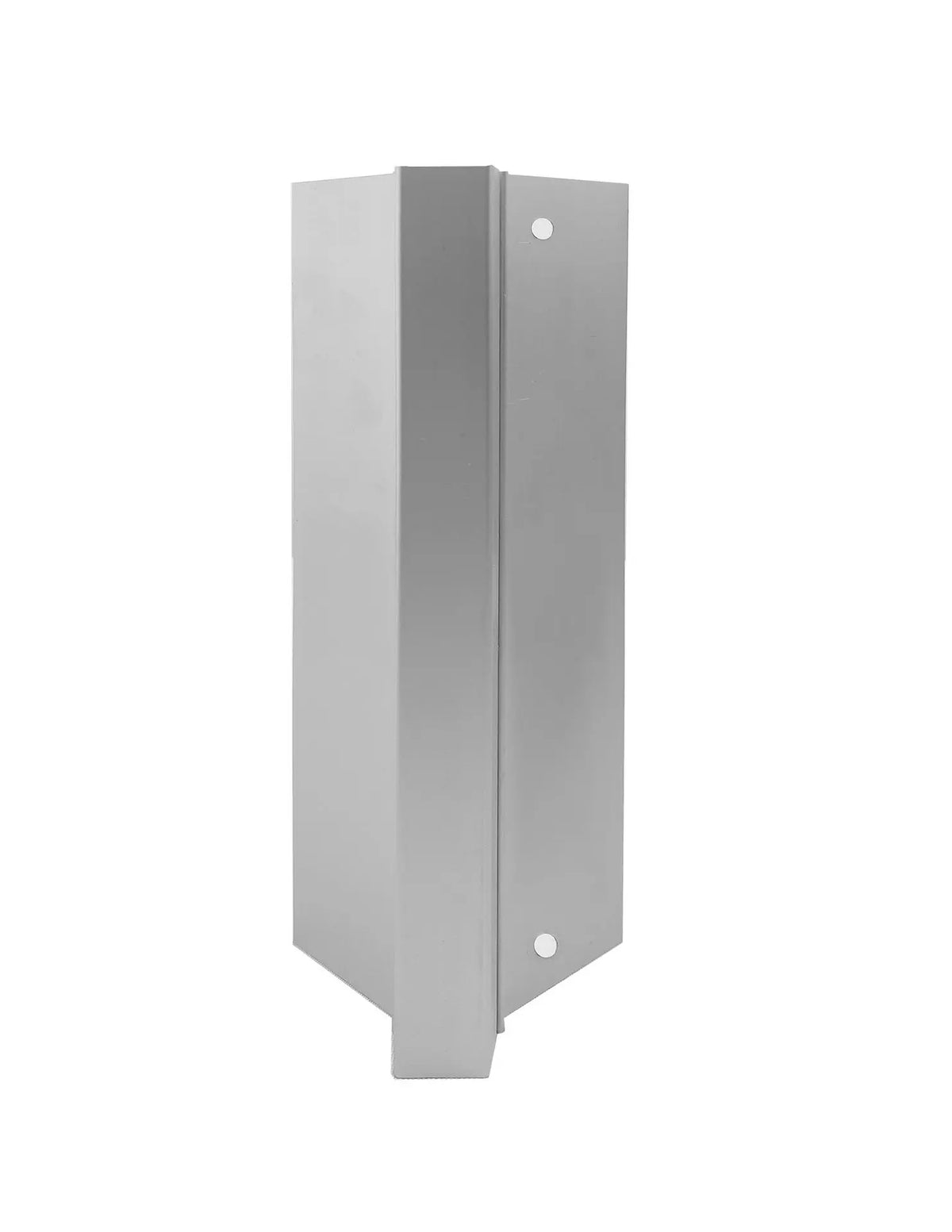

The ABH A110HDC083 is a full-mortise, fully concealed heavy-duty continuous gear hinge engineered for demanding commercial and institutional door applications. Its geared, flush-mount design evenly distributes door weight across the full height of the door and frame, eliminating binding, sagging, and the pry gap found with traditional butt hinges.
- Length & Application: 83" length designed for 7'0" doors; suitable for new construction and renovation — covers existing butt hinge cutouts in old frames
- Weight Capacity: Supports door weights up to 450 lbs; no door reinforcement required up to 200 lbs (16-ga. channel recommended for heavier loads)
- Material: Extruded 6063-T6 aluminum alloy with polyacetal thrust bearings for smooth, long-lasting operation
- Finish: Clear anodized aluminum (628/US28)

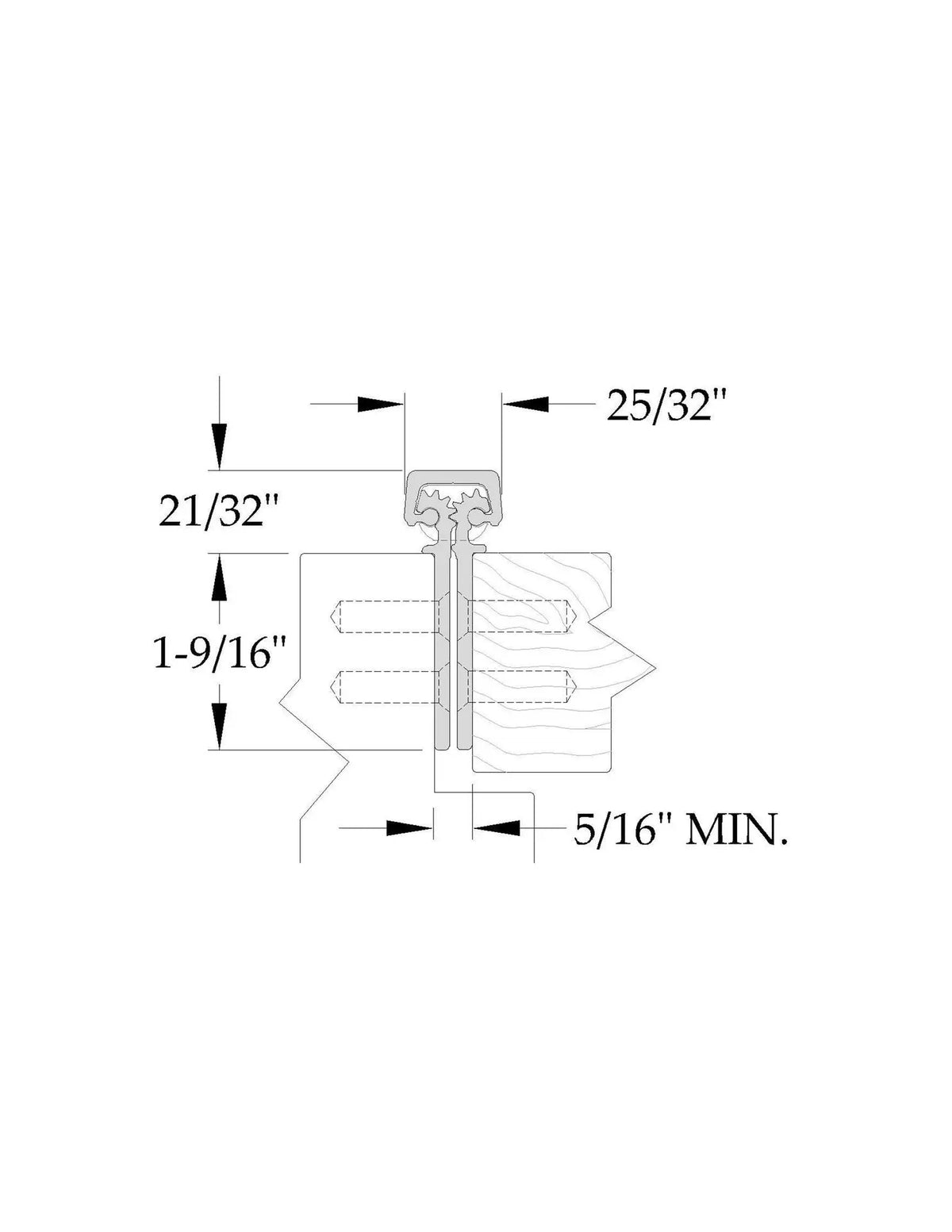

- Mounting: Full mortise / fully concealed — no door inset, flush mount; no mortising of doors or frames required
- Handing: Non-handed (reversible); can be field-cut to length
- Door Compatibility: For 1-3/4" thick doors; maximum door width 48"
- Fire Rating: UL Listed for metal swinging fire doors up to 90 minutes; approved for wood doors up to 60 minutes; UL Listed up to 3-hour rated doors with a steel stud
- Certifications: ANSI/BHMA A156.26 Grade 1; meets Buy American Act — Made in USA
- Fasteners: 12-24 x 3/4" Phillips flat-head undercut self-drilling, thread-forming TEK machine screws
- Warranty: Limited lifetime manufacturer's warranty
| Country of origin | USA |
|---|---|
| Door thickness | 1-3/4" |
| Door width | 42" to 48" |
| Finish | Clear |
| Fire rating | 90 Min |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | Lifetime |
| Manufacturer | ABH Mfg |
| Material | Aluminum |
