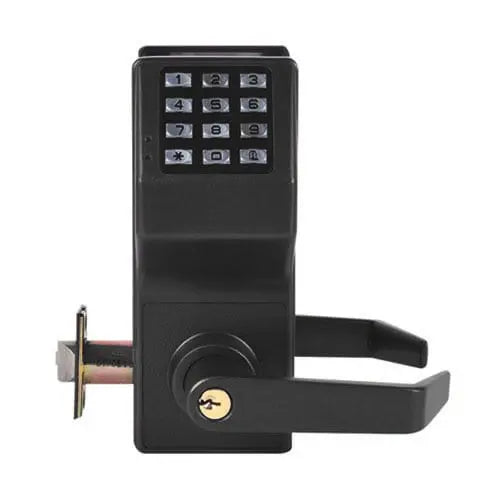

Alarm Lock DL2700/19 Trilogy 100 Users, SC1, Matte Black

The Alarm Lock DL2700 is a heavy-duty BHMA Grade 1 security door lock with a UL 3-hour fire-rated cylindrical latch built for commercial and institutional durability. Its field-reversible full-size ADA-compliant lever makes it suitable for both wood and metal doors—or even gate installations when used with the optional mounting box.

Programming is done right at the rugged metal keypad, allowing up to 100 unique users with 3- to 6-digit PIN codes, including:

• 1 Master code

• 10 Manager codes

• 90 User codes

• 3 Service codes

The DL2700 automatically locks after each use but can be set to passage mode when continuous access is desired. The clutch mechanism ensures long life and prevents forced-entry damage, while the interior lever always provides a panic-free exit.

A remote release kit is available.

The lock retrofits most cylindrical locksets and digital locks, making installation quick and simple.

Key Features:

• Heavy-duty all-metal construction

• UL 3-hour fire-rated latch

• Key override - 6-pin SC1 cylinder included

• Operates on 5 AA batteries with low-battery alerts

• Can be hard-wired (9 VDC/9 VAC) for remote release or backup

• Backset 2-3/4" (included), 2 - 3/8" (optional)

• Finish US19 Matte Black

• NOW Weatherproof Standard (replaces legacy DL2700WP models)

• 2-year manufacturer warranty

Perfect for schools, offices, healthcare facilities, and commercial entryways that need standalone access control with long-term reliability and zero wiring.
