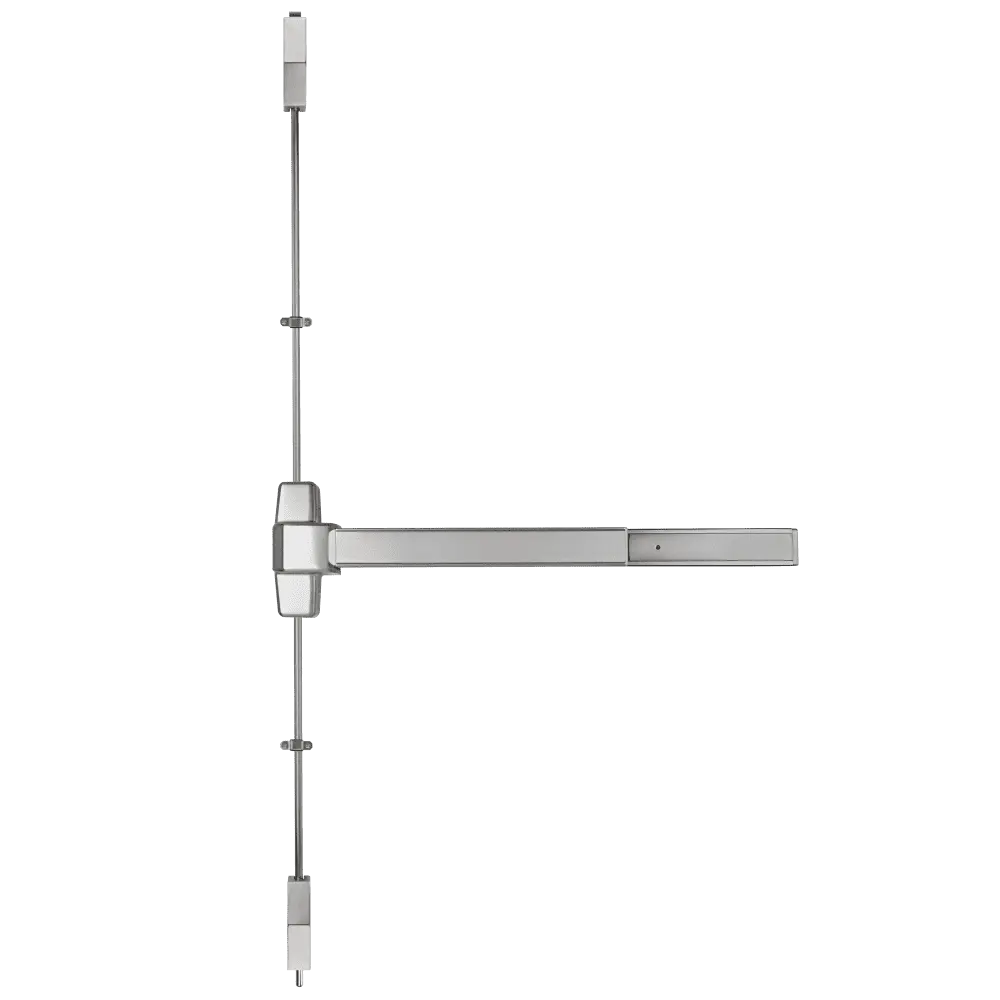

Marks USA M9900VR/32D 36" Vertical Rod Rim Panic Device, Grade 1, Hex Dogging, Satin Stainless
- Description
- Specifications
- Downloads
The Marks USA M9900VR/32D vertical-rod rim panic device is designed for high-traffic commercial and institutional openings requiring dependable egress hardware. It features both top and bottom latching rods for full door engagement and smooth operation.
Built to ANSI/BHMA A156.3 Grade 1 standards, this device supports doors up to 36" wide and standard 1-3/4" thickness. The M9900VR includes a stainless-steel push bar, heavy-gauge chassis, and a ¾" stainless-steel dead-latch for secure locking. Hex-key dogging allows the push bar to remain in the depressed unlocked position during high-traffic hours.
The non-handed design simplifies installation on either left- or right-swing doors. Finished in satin stainless steel (US 32D), the M9900VR/32D provides a clean architectural look while maintaining exceptional strength and durability.
Ideal for schools, hospitals, retail spaces, and office facilities where a reliable vertical-rod exit device is required, this model delivers proven performance and long service life in demanding environments.
| Case qty | 4 Pieces |
|---|---|
| Device length | 36" |
| Device type | Surface Vertical Rod |
| Dogging options | Hex Key Dogging |
| Door height | 84" |
| Door thickness | 1-3/4" Standard |
| Door width | 33" to 38" |
| Finish | 630 / US32D – Satin Stainless Steel |
| Fire rating | No |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | Lifetime |
| Manufacturer | Marks USA |
