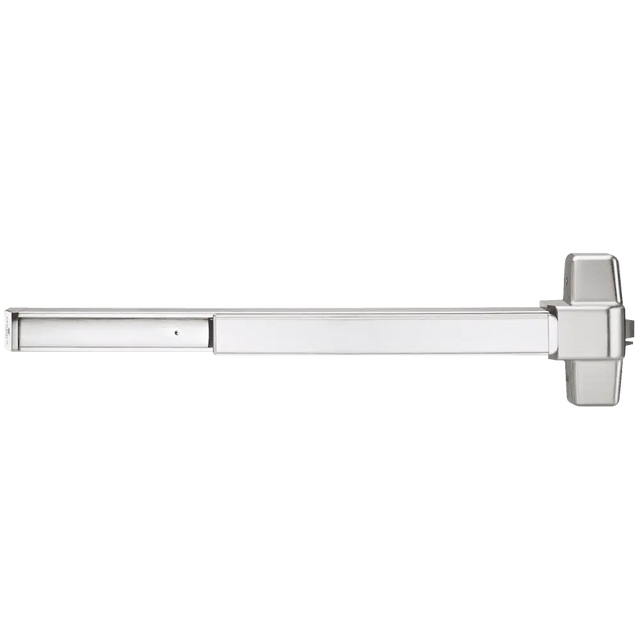

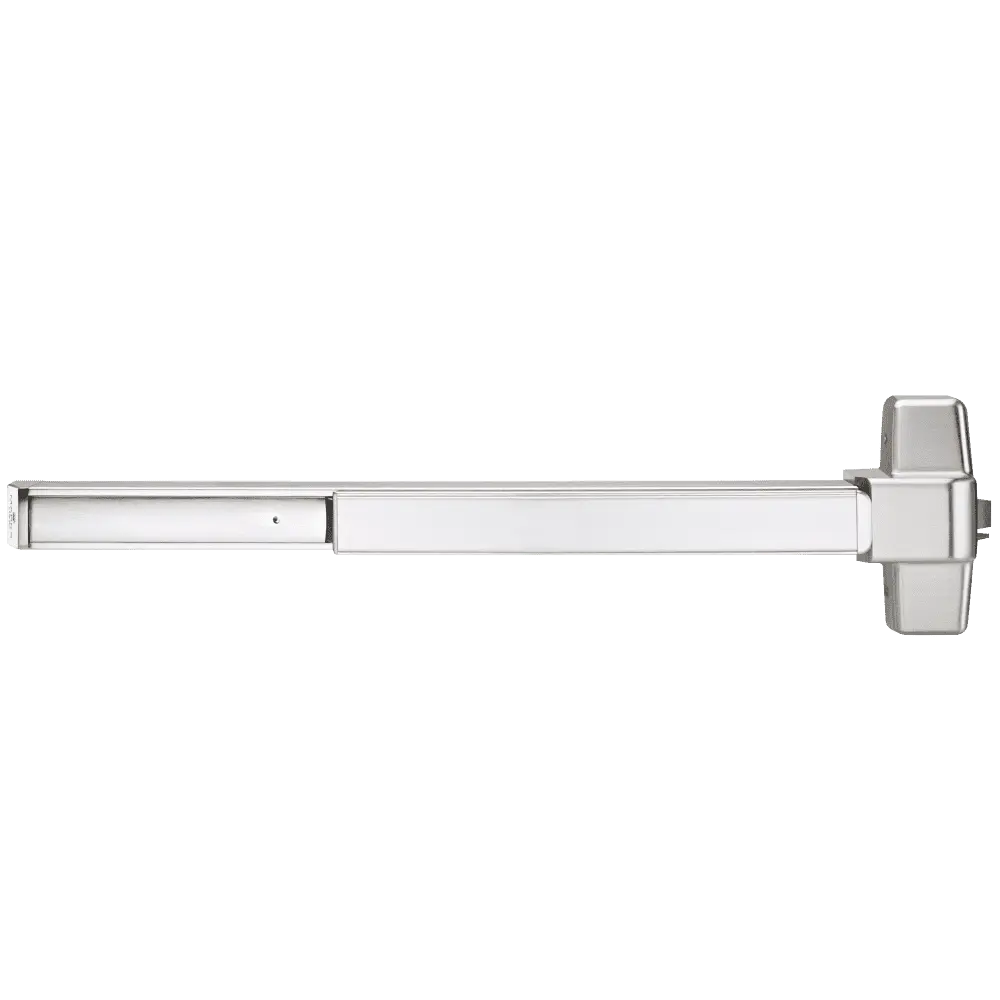

Marks USA M9900-48/32D 48" Rim Panic Device, Grade 1, Hex Dogging, Satin Stainless
- Description
- Specifications
- Downloads
The Marks USA M9900-48/32D rim panic device is engineered for high-traffic commercial and institutional applications where durable egress hardware is required. Built to ANSI/BHMA A156.3 Grade 1 standards, this device supports doors up to 48" wide and is non-handed for quick installation.
It features a ¾" stainless-steel dead-latch throw and is equipped with hex-key dogging to maintain the push bar in a free-moving state when required. The heavy-gauge extruded aluminum chassis, stainless-steel push bar, and “Panic Protector” end-cap provide a rugged construction that stands up to abuse and heavy use. The satin stainless steel finish (US 32D) offers an architectural look that blends well in modern commercial settings.
Ideal for schools, hospitals, retail centers, architects and contractors seeking a reliable exit device that retrofits most standard preps, this model offers performance, ease of installation and a lifetime mechanical warranty.
| Case qty | 4 Pieces |
|---|---|
| Device length | 48" |
| Device type | Rim |
| Dogging options | Hex Key Dogging |
| Door thickness | 1-3/4" Standard |
| Door width | 42" to 48" |
| Finish | 630 / US32D – Satin Stainless Steel |
| Fire rating | No |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | Lifetime |
| Manufacturer | Marks USA |
