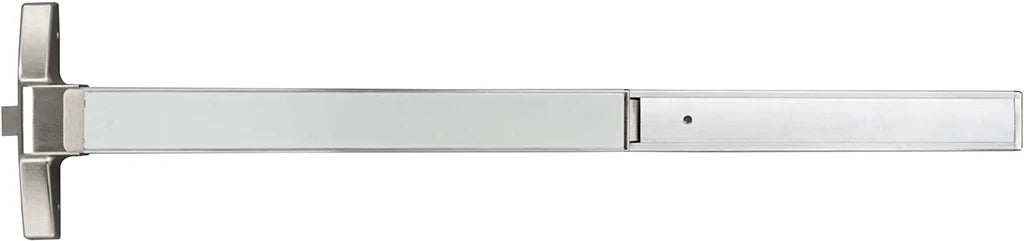

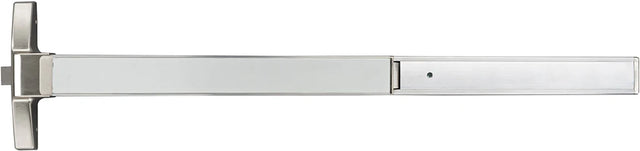

Marks USA M8800/32D 36" Narrow Stile Rim Panic Device, Grade 1, Hex Dogging, Satin Stainless
- Description
- Specifications
- Downloads
The Marks USA M8800/32D is a heavy-duty, Grade-1 rim panic exit device tailored for narrow-stile doors, especially in commercial and institutional settings. It accommodates door widths up to 36″ and is retro-fit friendly with non-handed orientation. Built for durability, it features a ¾″ stainless-steel dead-latch throw, a stainless-steel touch bar, a heavy-gauge aluminum chassis, and roller strike hardware for smooth operation. Hex-key dogging allows the device to be temporarily held in a free-egress mode when needed. Finished in satin stainless steel US32D, the unit combines rugged performance with architectural style, making it ideal for environments such as schools, hospitals, and retail spaces where dependable egress hardware is essential.
| Case qty | 4 Pieces |
|---|---|
| Device length | 36" |
| Device type | Rim |
| Dogging options | Hex Key Dogging |
| Door thickness | 1-3/4" Standard |
| Door width | 30" to 38" |
| Finish | 630 / US32D – Satin Stainless Steel |
| Fire rating | No |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | Lifetime |
| Manufacturer | Marks USA |
