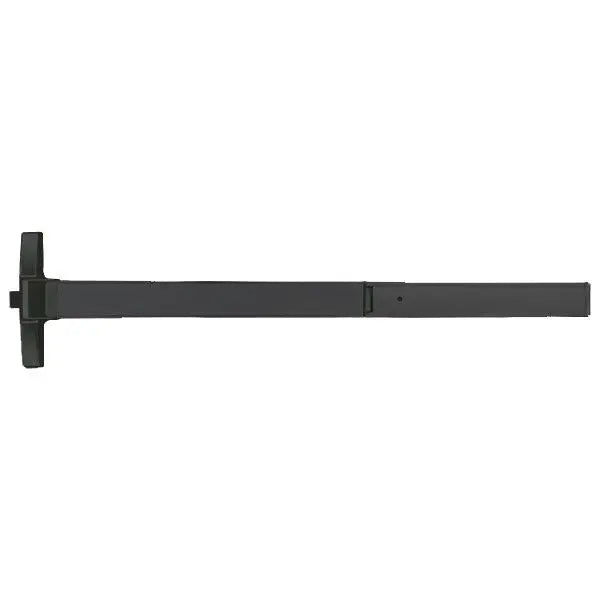

Marks USA M8800/10B 36" Narrow Stile Rim Panic Device, Grade 1, Hex Dogging, Dark Bronze
- Description
- Specifications
- Downloads
The Marks USA M8800/10B is a heavy-duty, Grade-1 rim panic exit device tailored for narrow-stile doors, especially in commercial and institutional settings. It accommodates door widths up to 36″ and is retro-fit friendly with non-handed orientation. Built for durability, it features a ¾″ stainless-steel dead-latch throw, a stainless-steel touch bar, a heavy-gauge aluminum chassis, and roller strike hardware for smooth operation. Hex-key dogging allows the device to be temporarily held in a free-egress mode when needed. Finished in oil-rubbed bronze US10B, the unit combines rugged performance with architectural style, making it ideal for environments such as schools, hospitals, and retail spaces where dependable egress hardware is essential.
| Case qty | 4 Pieces |
|---|---|
| Device length | 36" |
| Device type | Rim |
| Dogging options | Hex Key Dogging |
| Door thickness | 1-3/4" Standard |
| Door width | 30" to 38" |
| Finish | 613 / US10B – Oil Rubbed Bronze |
| Fire rating | No |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | Lifetime |
| Manufacturer | Marks USA |
