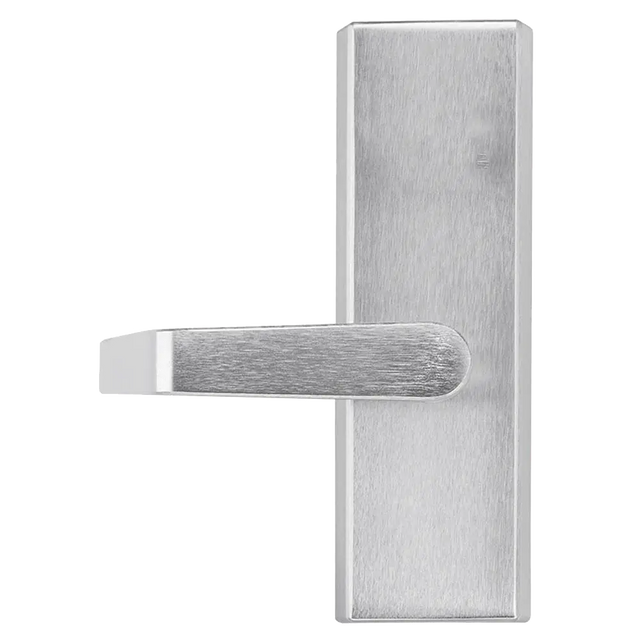

The Marks USA MESC600N/26D lever trim with escutcheon is designed for use with the M9900 Series rim exit devices. It features an passage function that allows the exterior lever to remain always unlocked, while the inside push bar always provides free egress.
Constructed with a Grade 1 heavy-duty cast escutcheon and solid lever, this trim is non-handed for universal installation on either left- or right-swing doors. It supports standard 1-3/4" door thickness and through-bolt mounting for extra strength. Finished in satin chrome US26D, it provides a clean, architectural appearance suited for commercial and institutional applications.
The MESC600N/26D offers dependable performance, smooth operation, and durability for high-traffic openings that require secure entry control paired with reliable panic egress.
| Cylinder length | 1-1/4" |
|---|---|
| Cylinder type | Mortise Cylinder |
| Finish | 626 / US26D – Satin Chrome |
| Function | Passage |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Keyway | Schlage C SC1 |
| Limited warranty | Lifetime |
| Manufacturer | Marks USA |
| Rose escutcheon design | 2-3/4" x 8-1/2" |
