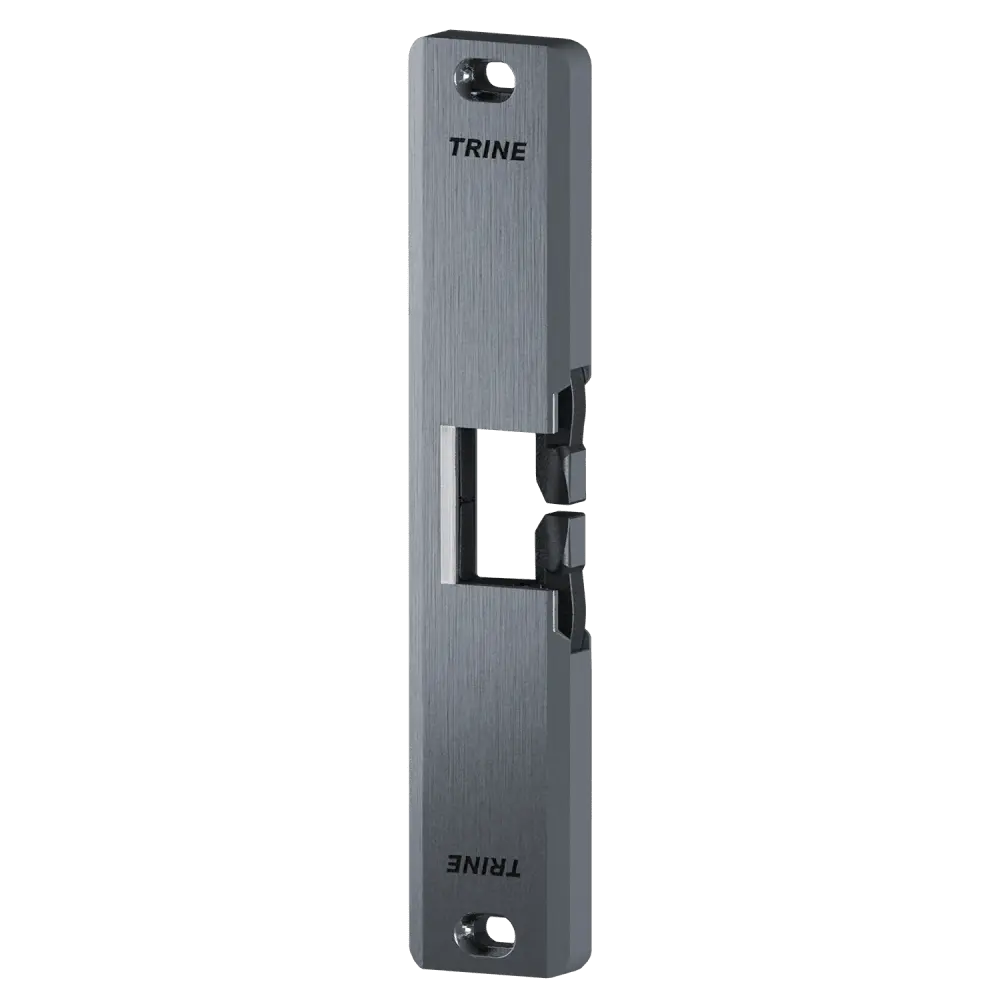

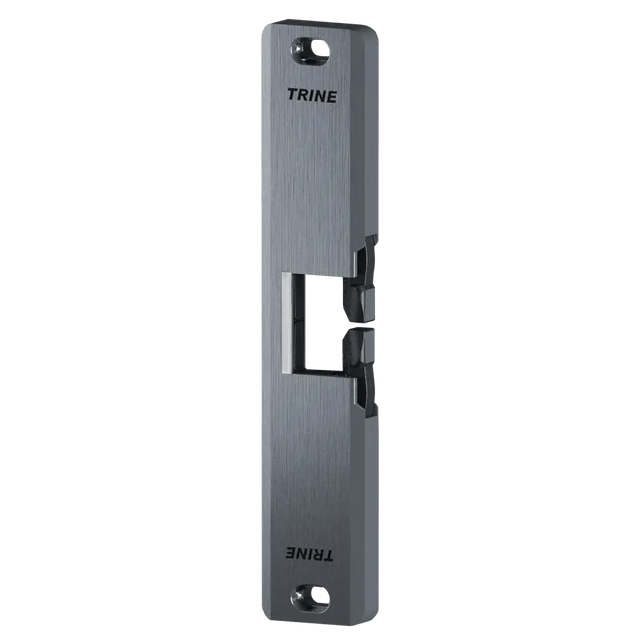

Trine 4850-32D Rim Exit Strike, 1/2" Surface Mount, 12/24 VDC, Fail Safe/Secure, Satin Stainless Steel

The Trine 4850-32D is a premium electric strike designed specifically for rim exit devices where minimal frame modification and high performance are required. Manufactured by Trine Access Technology, this strike features a slim 1/2" profile surface-mount design and is engineered for robust commercial use.

Key features and specifications:

• Surface mount design with thickness of 1/2".

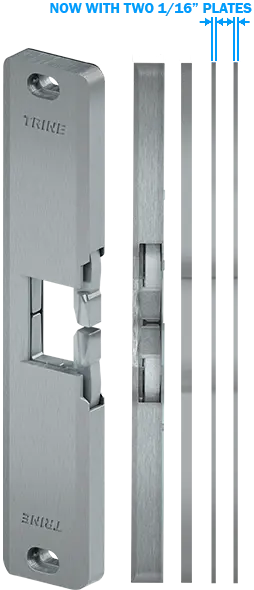

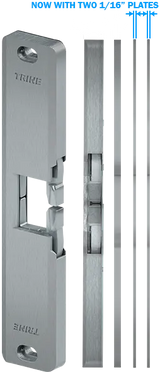

• Includes spacer plates 1/4" and two 1/16" to accommodate up to six different thicknesses—a highly versatile solution.

• Accepts latch throws of up to 1″ thanks to a fully open cavity design.

• Patented 6-Pin Anchoring System: Provides six additional points of connection between the strike and the frame, improving mounting stability and security under high stress.

• Field-selectable Fail-Safe or Fail-Secure mode, allowing flexibility depending on security or egress needs.

• Rated for 12-24 VDC, with low current draw; e.g., 12 VDC at approx. 0.218 A, 16 VDC at approx. 0.290 A, 24 VDC at approx. 0.195 A.

• Grade 1 construction with more than 1,000,000 life cycles and holding force over 1,500 lbs.

• Finish: Satin Stainless Steel BHMA 630 / US32D for an architectural look and durable performance.

• Installs in wood or hollow metal frames with rim exit devices; suited for tight-depth or narrow-stile frames.

Applications & Benefits:

This strike is well suited for retrofit or new installs in commercial settings—schools, institutional buildings, multi-tenant retail—especially where rim panic exit devices are in use and minimal frame alteration is a priority. Its slim profile and included spacer plates make it a top choice for complex or constrained installations.

By offering field selectability fail-safe vs fail-secure and wide voltage compatibility, the 4850-32D provides installers flexibility while maintaining high-end performance.
