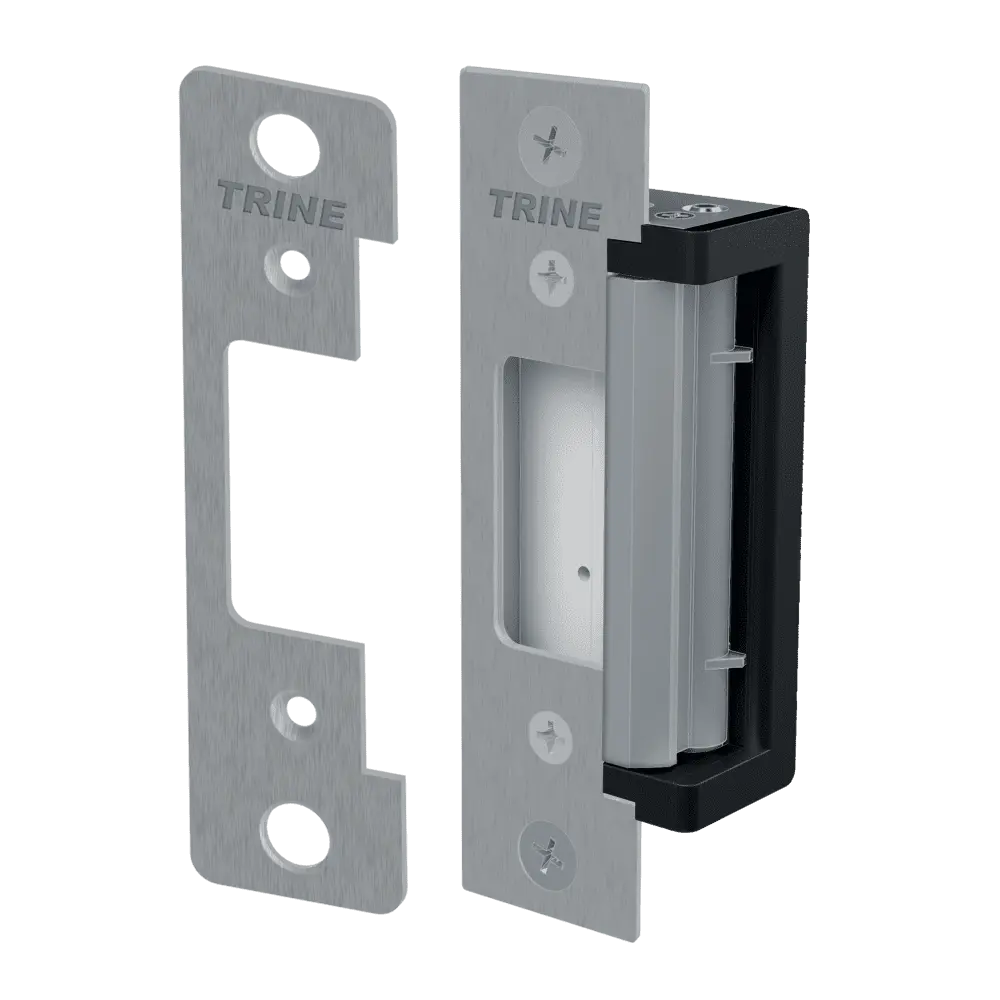

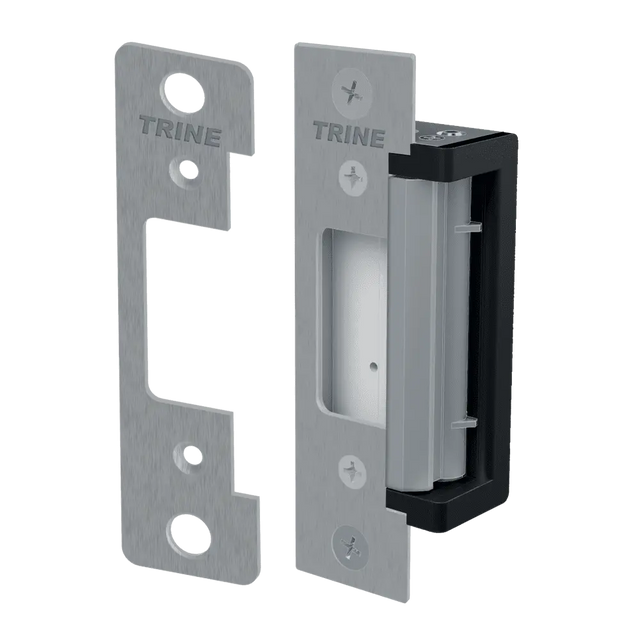

Trine 4300CC-32D Electric Strike, 12/24 VDC, 12-24 VAC, 4 Faceplates Included, Satin Stainless Steel Finish

The Trine 4300CC-32D is a premium model in the 4000-series electric strikes, engineered for commercial access control installations requiring flexibility, durability and minimalist frame modifications. The kit supports both 12 VDC and 24 VDC and 12-24 VAC power supplies, and arrives with a set of two interchangeable faceplates covering the most common frame/lockset configurations — simplifying installation across applications.

Key Features include:

• Selectable voltage: 12 VDC (.310 A) or 24 VDC (.140 A); 12 VAC (.280 A), 16 VAC (.380 A), 24 VAC (.550 A) according to specifications.

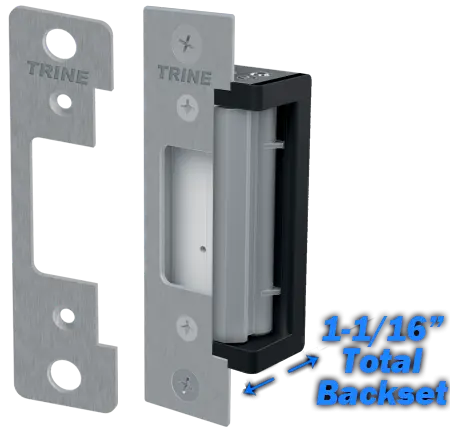

• Low 1 -1/16″) backset depth

• Integrated 1/4″ horizontal adjustment built into strike body to accommodate latch mis-alignment in field installations.

• Includes two popular faceplates for cylindrical locks and deadlatches, reducing need for multiple SKUs and easing retrofit.

• Finish: Satin Stainless Steel US32D

• Meets ANSI Grade 1 performance; UL/WH recognized for burglary resistant (UL1034) and access control (UL294) ratings.

Why choose this model?

If you're spec-ing or installing an access-controlled door where you need both cylindrical and deadlatch compatibility, minimal frame modification, selectable voltage for DC or AC systems, and an architectural bronze finish — the 4300CC-32D delivers. Its included faceplate set streamlines onsite selection, the performance specs support heavy duty usage, and the shallow depth makes it well suited for narrow-stile, storefront or aluminum-framed installations.
