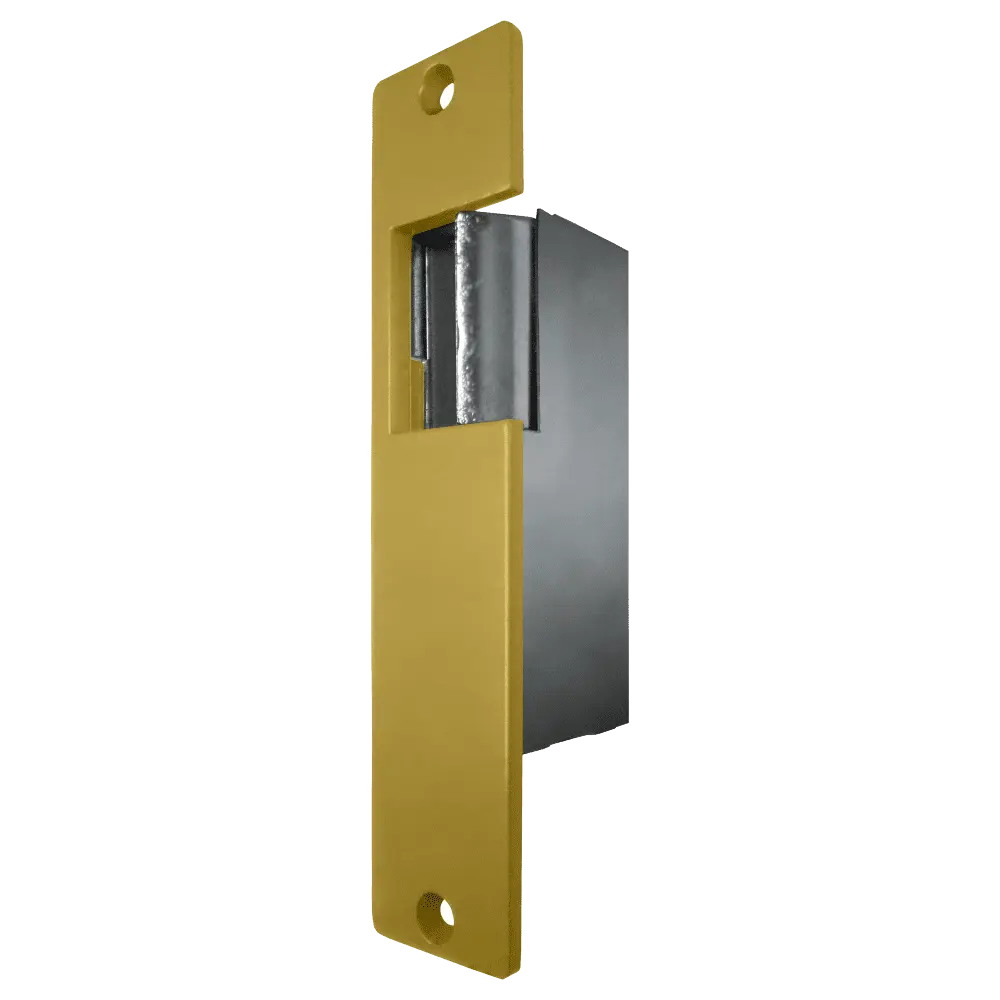

Trine 001 8-16VAC / 4-6VDC Electric Strike, Brass Powder Coat

The Trine 001 Electric Strike is a versatile, high-value access-control solution engineered for retrofit or new-installations in wood or metal door jambs. It accepts 8-16 VAC or 4-6 VDC power, features a robust powder-coated brass finish, and is ideal for locksets with up to a 5/8″ throw based on a 1/8″ door gap.

Key attributes include:

• One-piece release mechanism with only one moving part for dependable operation and reduced maintenance.

• Rated for 500,000 life cycles and a static holding force of 1,000 lbs, ensuring reliability in frequent-use environments.

• Non-handed design works in either mounting orientation.

• Faceplate dimensions are 5-7/8″ × 1-1/4″, with a mortise-backset of 1-9/16″ and cavity depth of 1/2″ – fits standard installations.

• Powder-coated brass finish suits both commercial and architectural aesthetics while providing corrosion resistance.

Whether you’re upgrading an existing door to electrified release or specifying for a light-commercial access point, the Trine 001 offers a cost-effective, dependable strike solution with flexible voltage and clean finish.
