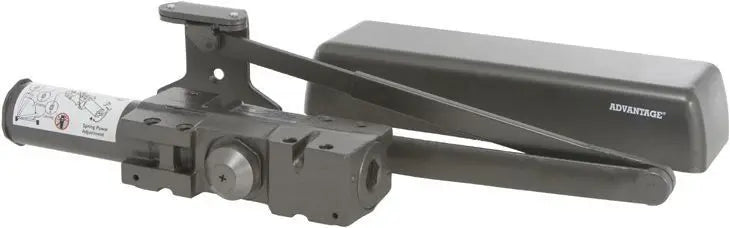

PHG 80DC-695 Grade 1 Door Closer, Adjustable 1-6, Tri-Packed, Dark Bronze

The PHG 80DC-695 door closer is built for high-traffic commercial installations where durability and flexibility matter. It meets ANSI A156.4 Grade 1 standards and supports spring size adjustment from 1 to 6 to accommodate varying door weights and usage. Supplied tri-packed, the kit includes mounting hardware and brackets for regular arm, top-jamb and parallel arm configurations, making it a one-SKU solution for multiple mounting scenarios. The dark bronze finish allows it to blend into modern architectural aesthetics while providing the ruggedness expected in institutional or commercial environments.

Key features include:

• Adjustability for spring sizes 1-6, enabling the closer to be used across a wide range of door sizes.

• Tri-pack configuration with regular, top-jamb and parallel arm brackets and hardware included.

• Non-handed design, allowing installation on left- or right-swing doors.

• Aluminum body construction for strength and long service life.

• Ideal for commercial buildings, retail entrances, schools and other high-use doors where reliability and ease of installation matter.

Material

• Heavy Duty Cast Iron Body

• Heated Treated Forged Steel Piston.

• Double heat treated steel pinion.

Cover

• Full plastic cover included

Valves

• Triple valve control for closing speed, latching speed, and back check cushion.

• Staked valve for power adjustment.

• Back-Check

Arm & Brackets

• Standard arm and parallel bracket included for different mounting demands.

Matches Hole Pattern - CTC Hole Pattern 5" x 2-1/4" x 1"

• Cal Royal CR441

  Design Hardware 416

  Hager 5100

  International Door Closer 44CI

  LCN 4040

  PDQ Manufacturing 7100

  S Parker 441BC

  Tell 900.

Screws

• Self-tapping wood screws, machine screws, and sex-bolts.
