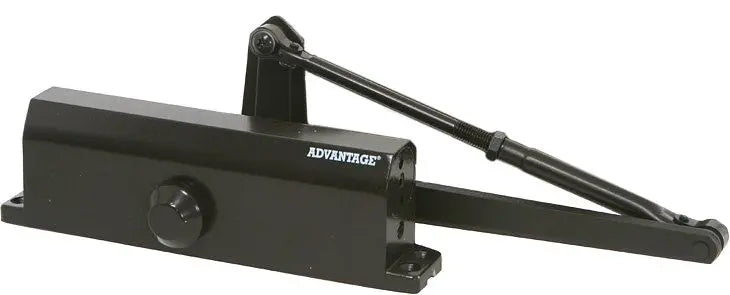

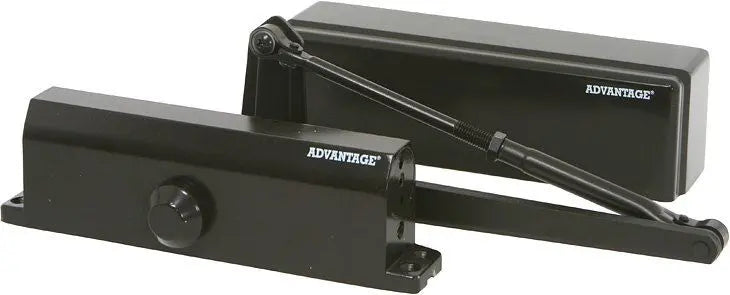

PHG 44DC-695 Grade 1 Door Closer, Adjustable 1-4, Tri-Packed, Duronodic
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
The PHG 44DC-695 door closer delivers heavy-duty performance for high-traffic doors. It features full size-adjustability spring strength adjustable settings 1 through 4, letting a single closer handle a range of door weights and sizes. The closer comes tri-packed—shipping with components for regular arm, top-jamb and parallel arm mounting—so one SKU covers multiple mounting configurations. Constructed with an aluminum body, the 44DC-695 meets Grade 1 performance requirements (ANSI A156.4) and is built for long-term durability. It’s non-handed and designed for push or pull side installs, making field installation simpler and faster.
Ideal for commercial, institutional or retail entrances where reliable door-control and adjustability are required, the PHG 44DC-695 offers versatility, quality build and vendor-friendly packaging for multi-arm configurations.
Material
Aluminum Alloy Body, Forged Steel Arm.
Heated Treated Forged Steel Piston.
Double heat treated steel pinion.
Cover
Full plastic cover - 4400 series
Valves
Triple valve control for closing speed, latching speed, and back check cushion.
Staked valve for power adjustment.
Back-Check
Arm & Brackets
Standard arm and parallel bracket included for different mounting demands.
Screws
Self-tapping wood screws, machine screws, and sex-bolts.
| Case qty | 6 Pieces |
|---|---|
| Finish | 695 Dark Bronze Painted |
| Fire rating | 3 Hour Fire Rating |
| Grade | Grade 1 |
| Handing | Non-Handed |
| Limited warranty | 25 Year |
| Manufacturer | PHG |
| Mounting | Tri-packed for regular, top jamb, and parallel arm installations |
| Size | 1 to 4 |
