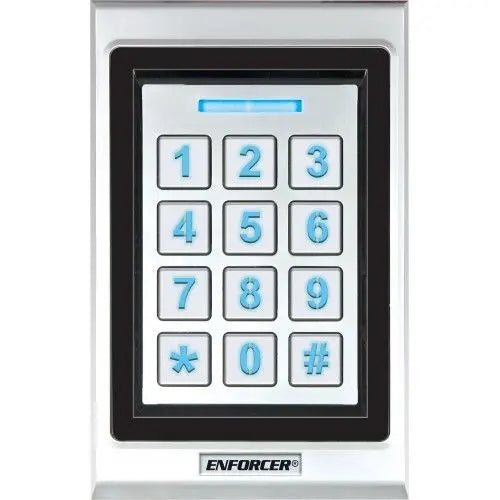

Seco-Larm SK-B141-PQ 12-24 VDC, Single Gang, Keypad Bluetooth with Prox Reader
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
The Seco-Larm SK-B141-PQ combines Bluetooth convenience with secure keypad and proximity access in a compact single-gang format. Designed for doors, gates, and entry points that require flexible credential options, it supports PIN codes, Bluetooth app access, and standard 125 kHz prox cards/fobs. Rugged construction and 12/24 VDC compatibility make it ideal for commercial, industrial, and residential access control.

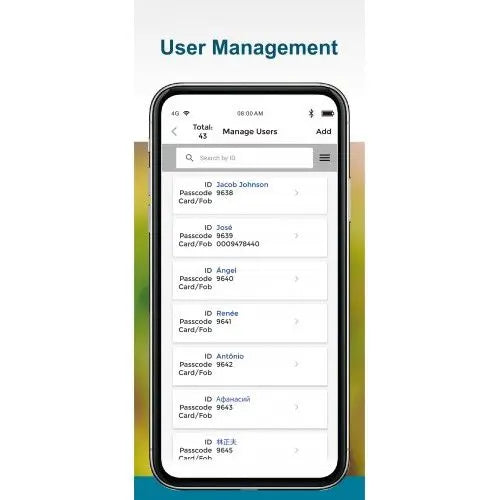

- No Codes to Remember – Intuitive, visual app-based programming and management, 1,000 users, device options, etc.

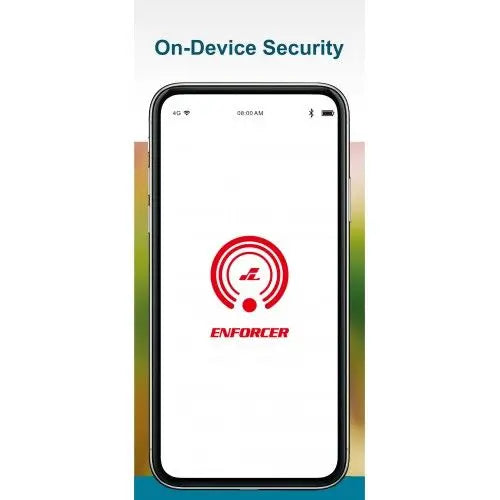

- No Cloud, No Internet Exposure – All data secured locally on device, set and monitored by the administrator

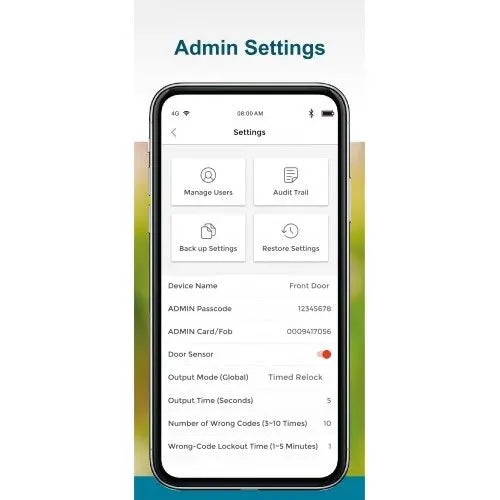

- App-Based Programming – No complicated software to install, no subscription fees
- More Than Access – Control doors, gates, lighting, machinery, etc.
- Secure, Integrated Bluetooth – Passcode protected, AES 128
- Easy Installation – No control panel necessary
- Output Modes – Timed relock (1~1,800 seconds), continually unlocked or locked, toggle
- Hold Open – Hold door open with code or app (customizable)

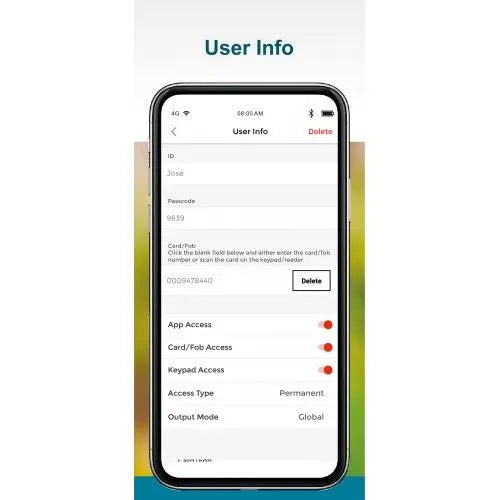

- User Customization – Individually customizable output mode / time
- Multiple User Types – Permanent, scheduled, temporary, # of times
- Authorized User Monitor – Displays total number of users to guard against unauthorized additions
- User List Export / Import – for archiving, replicating to other devices, or for off-device editing on a computer

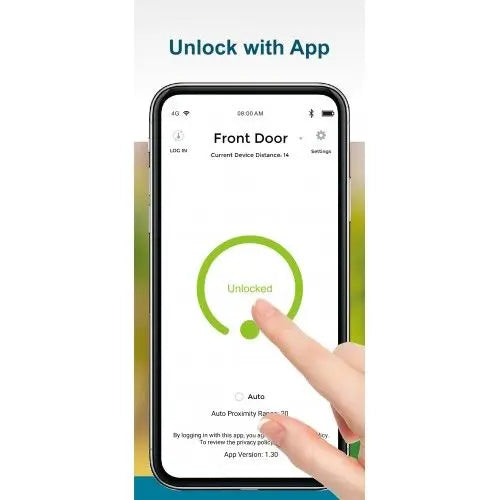

- Three Ways to Unlock or Trigger a Device – Keypad, proximity card, or app
- Unlimited Devices – Access/manage unlimited devices with one app
- Easy Backup/Restore – Off-device storage / restoration / replication
- Wrong-Code Lockout – Customizable # of wrong codes and time
- Tamper Alarm Output – Customizable alarm timing and sensitivity
- Multilingual App Interface – English, Spanish, French, Portuguese, German, Russian, Vietnamese, and Chinese
- Weatherproof (IP65)
| Amperage draw | Standby: 55mA@12VDC, 30mA@24VDC Active (max.): 100mA@12VDC, 55mA@24VDC |
|---|---|

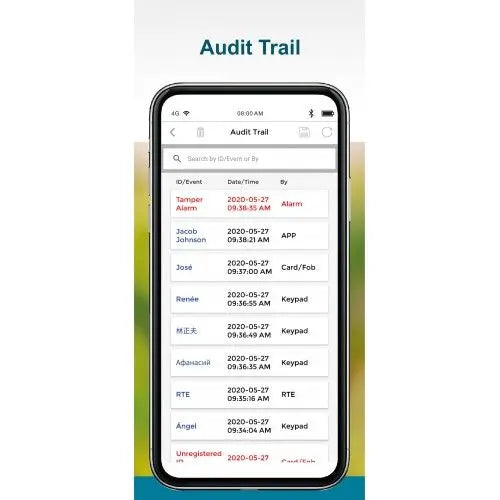

| Audit trail | Yes, Via App |
| Dimensions | 3-1/8″ x 4-13/16″ x 7/8″ |
| Environmental rating | Weatherproof IP65 |
| Manufacturer | Seco-Larm |
| Outputs | Form C: 2.0A@30VDC Tamper alarm: 100mA@30VDC (solid state N.C.) |
| Power | 12 - 24 VDC |
| Product weight | 1 lb |
| User capacity | 1000 |
