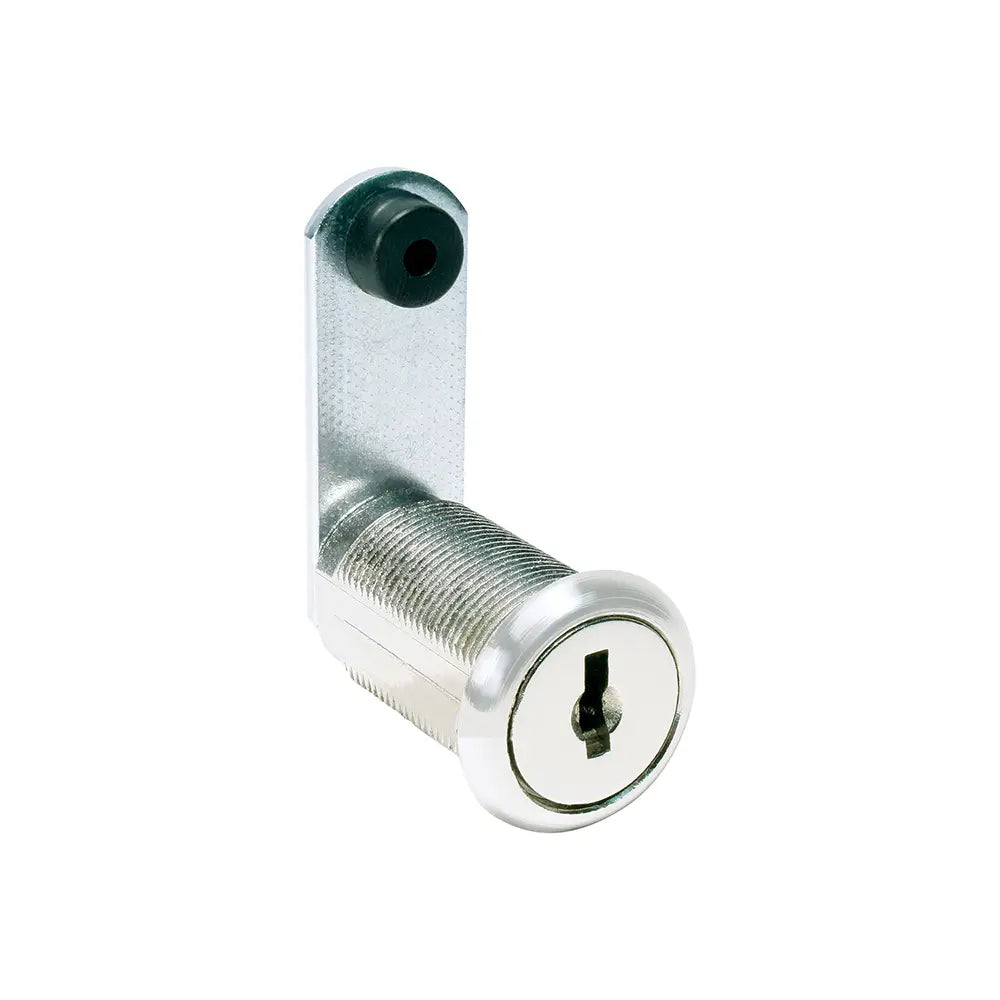

CompX National C8053-14A KA #C415A , CAM LK, 1-3/16"
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
Application
For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
Operation
90° cam turn on all locks. Key removable in both locked and unlocked positions.
Keying
Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
Packaging

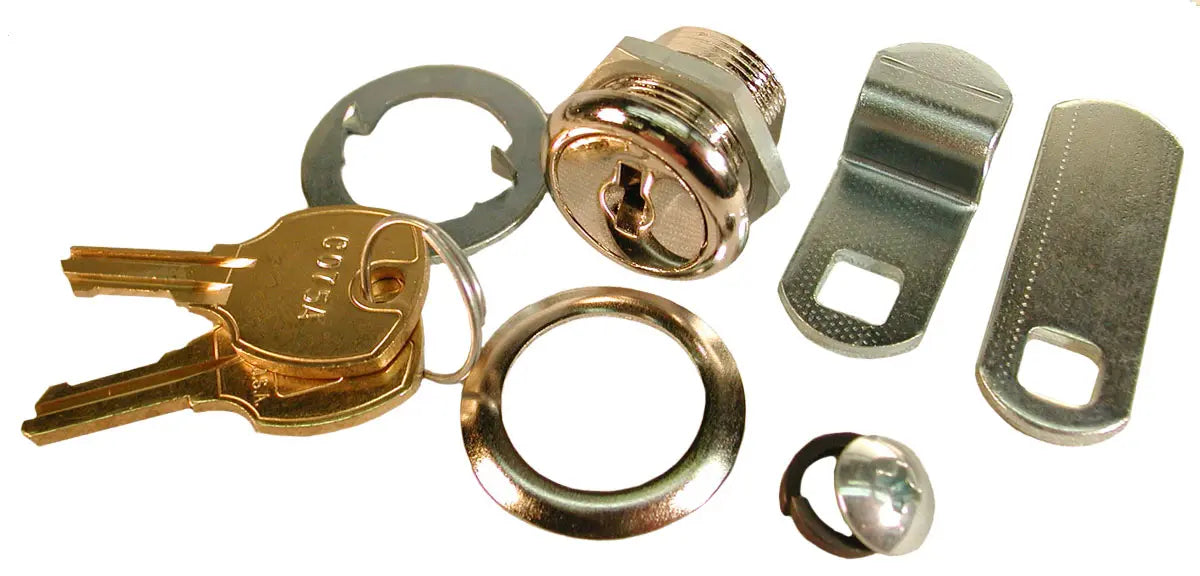

Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately.
Cylinder Length Size: 1-3/16"
Key Rotation: clockwise
Keying: KA, KD
Max Material Thickness: 7/8
Type of Mounting: flush, lipped overlay, overlay
CompX National disc tumbler cam lock with 1-3/16" cylinder length, 90 degree CW rotation, 3/4" mounting hole, keyed alike to C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A. 200 keyed different and masterkey keyed different codes. Bright nickel, bright brass, antique brass, and black finishes.Not all key codes available in all finishes.
| Lock keying | Keyed Alike |
|---|---|
| Lock key type | Single Sided |
| Lock length | 1-3/16" |
| Lock type | Cam Lock |
| Manufacturer | Compx National |
