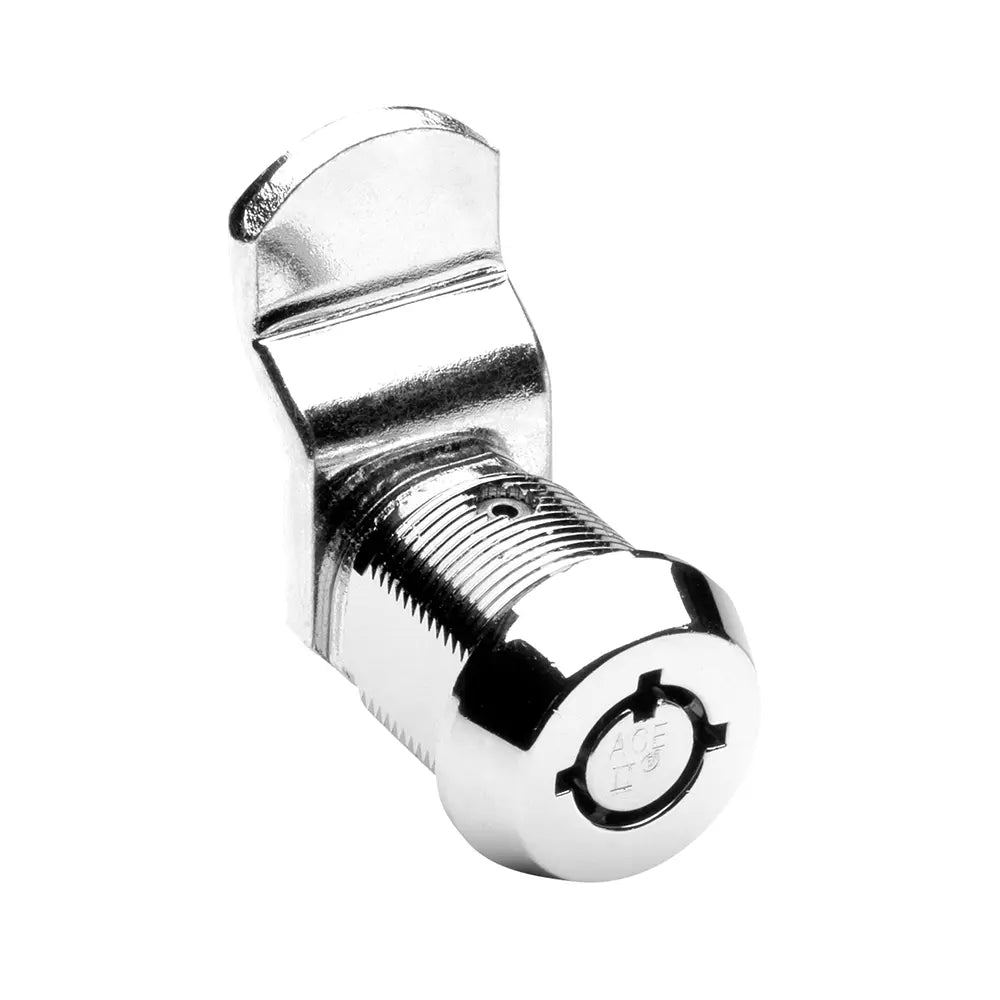

Compx Chicago C4153# KA PL505, ACE II Universal Cam Lock 11/16"
Get a restock alert
We’ll send you an email the moment this item is available to order again.
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
Application
CompX Chicago Ace II pin tumbler tubular cam lock For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam).
Operation
90° clockwise rotation - key removal at 12 & 3 O'clock. 90° counterclockwise rotation - key removal at 12 & 9. 180° clockwise and counterclockwise rotation - key removal at 12.
Keying
Will key together with all other CompX Chicago tubular style locks using D137-CLC key blank.
Packaging
Supplied with two keys, anchor washer (for wood), mounting nut, 180 degree and 90 degree stop cam, one straight and one offset cam, and cam locking nut.
Cylinder Length Size: 11/16"
Key Rotation: clockwise, counterclockwise
Keying: KA, KD
CompX Chicago ACE II cam lock with universal function, brass construction, 11/16" cylinder, 90 and 180 degree rotation, polished nickel finish, keyed alike to 6032, 6234, 7302, 7525, PL505, PL910, 200 keyed different codes
| Lock keying | Keyed Alike |
|---|---|
| Lock key type | Tubular |
| Lock length | 11/16" |
| Lock type | Cam Lock |
| Manufacturer | Compx Chicago |
| Master pack qty | 25 |
