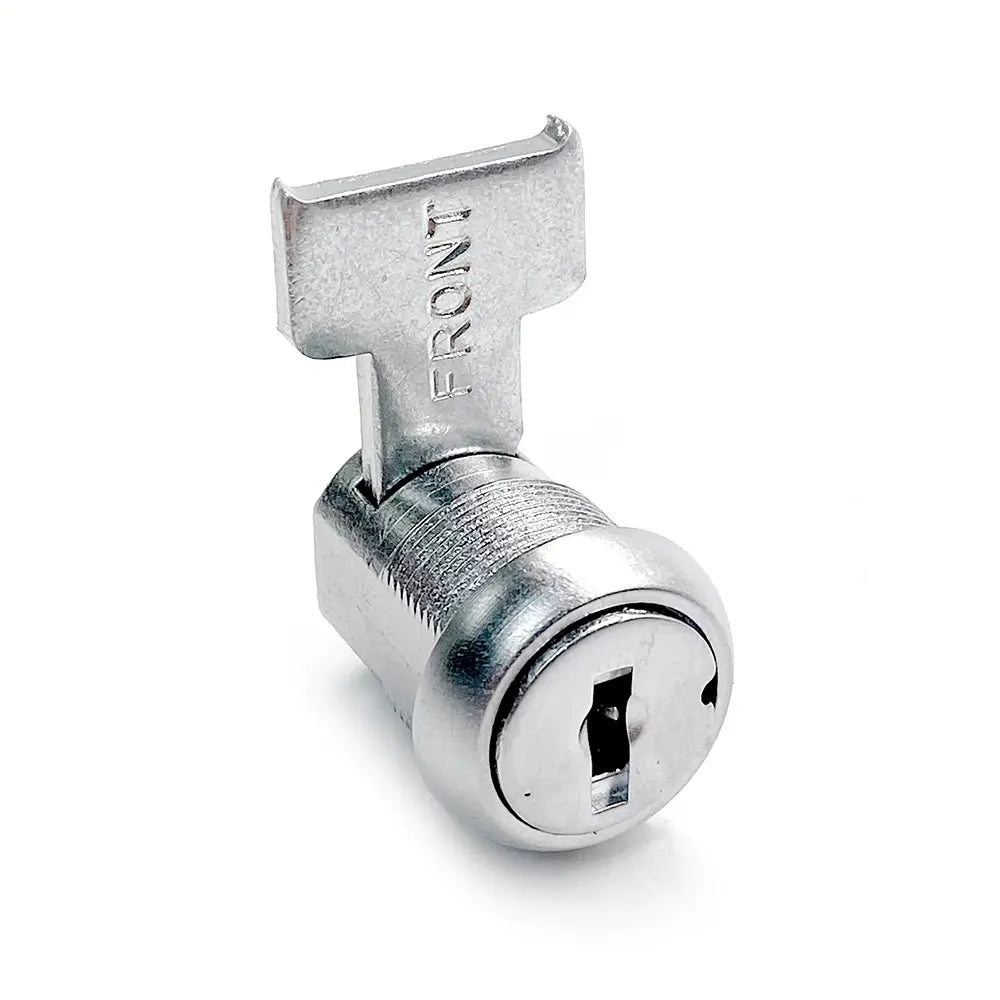

Compx Chicago C1974 KA# 1289, Metal Drawer Lock
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
Application
CompX Chicago nut mounted drawer lock
Operation
180 degree key rotation, key out in both locked and unlocked positions
Keying
Will key together with all other CompX Chicago disc tumbler locks using DK-5 key blank.
Packaging
Packaged with lock, two keys
Bolt Travel: 11/32"
Cylinder Length Size: 27/32"
Key Rotation: 180 clockwise
Keying: KA
CompX Chicago disc tumbler metal drawer cabinet lock, insertable bolt, 19/32" from inside of lock face to front of bolt, 11/32" bolt throw, 180 degree CW rotation, overall cylinder length 27/32", keyed alike to 1289 and 1454, 200 keyed different codes, satin chrome finish
| Lock keying | Keyed Alike |
|---|---|
| Lock key type | Single Sided |
| Lock length | 19/32" |
| Lock type | Drawer Lock |
| Manufacturer | Compx Chicago |
| Master pack qty | 25 |
