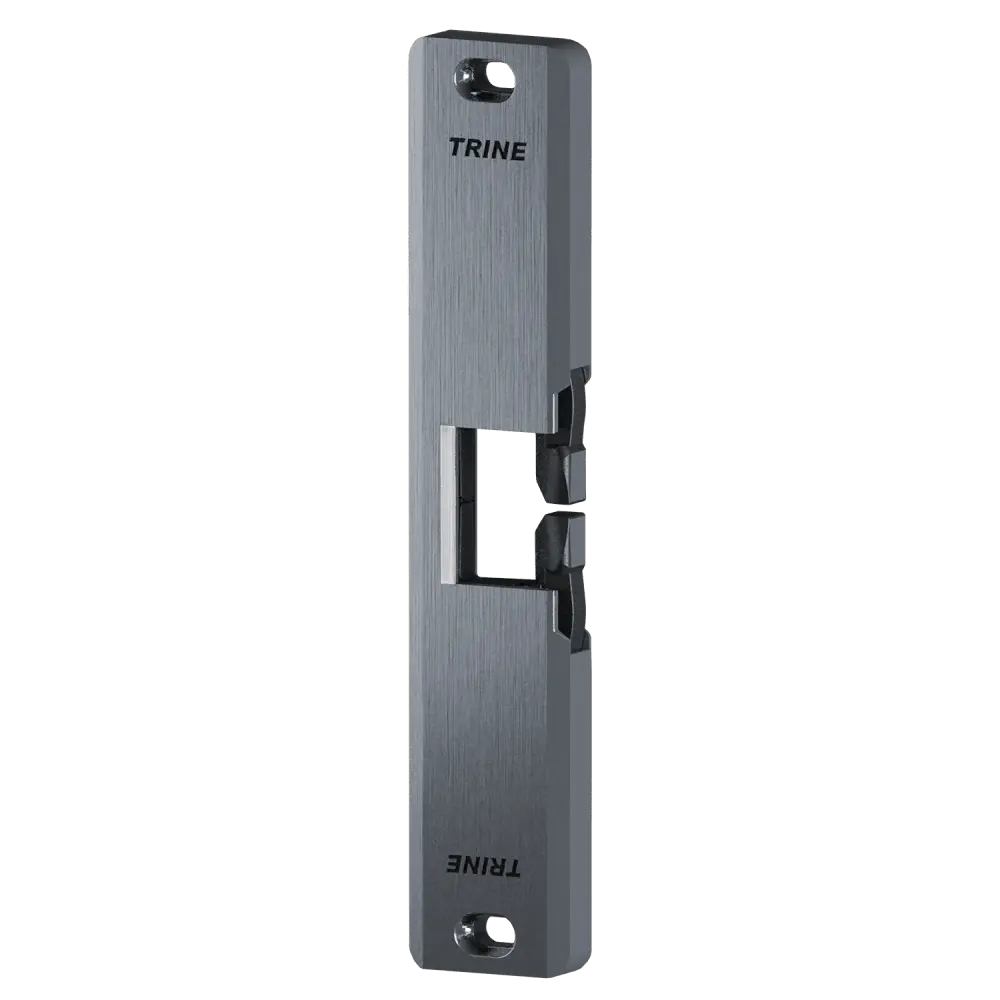

Trine 4850-32D Electric Strike for Rim Exit Devices – 1/2" Surface Mount, Satin Stainless Steel
Secure Checkout
Fast Shipping
Hassle-Free Returns
Expert Support
Certified WOSB
American Owned and Operated
- Description
- Specifications
- Downloads
The Trine 4850-32D is a 1/2" surface-mounted electric strike designed as the definitive one-box solution for rim panic exit devices. Its fully open cavity and included spacer system accommodate up to 1" of latch throw across six different installation thicknesses, while built-in electronics automatically accept 12–24 VDC with surge and kickback protection — making it equally at home in new construction and retrofit projects.
- Surface-Mount Profile: 1/2" thick body installs directly on the frame face; no frame cutting required.

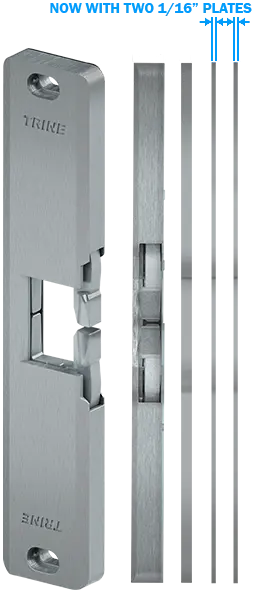

- Versatile Spacer System: Includes one 1/4" and two 1/16" spacer plates, providing up to 6 different installation thicknesses.
- Open Cavity Design: Fully open cavity accepts latch throws up to 1" — greater versatility than competitor backplate designs.
- Patented 6-Pin Anchoring System: Trine's proprietary anchoring pins provide six additional connection points between the strike and frame for superior mounting stability.
- Field-Selectable Fail-Safe / Fail-Secure: Configurable on-site to meet either egress-first or security-first requirements without additional parts ordering.
- BHMA Grade 1 Rated: Factory tested to ANSI/BHMA A156.31; rated for 1,000,000+ life cycles and 1,500+ lbs. static holding force.
- Electrical: 12–24 VDC; Enhanced 4850 draw: 0.218 A @ 12 VDC, 0.290 A @ 16 VDC, 0.195 A @ 24 VDC (intermittent/continuous duty, silent operation); built-in surge and kickback protection.
- Finish & Construction: 630/US32D Satin Stainless Steel; stainless steel base material; faceplate 9" × 1-3/4"; compatible with wood or hollow metal frames.
| Amperage draw | .509-.405-.215 / .556.253 |
|---|---|
| Faceplate size | 9" x 1-3/4" |
| Finish | 630 / US32D – Satin Stainless Steel |
| For use with | Wood or Metal Frames |
| Function | Fail Safe or Fail Secure |
| Grade | Grade 1 |
| Limited warranty | 1 Year |
| Lock type | Rim Exit Device |
| Manufacturer | Trine |
| Material | Stainless Steel |
| Power | 12 - 24 VDC |
